Specifications
Chopped Strand Mat1.100% original, factory price
2.Good wet-out
3.High tensile strength
4.Easy operation, fire-resistant
Chopped Strand Mat
CSM300 Jushi Fiber E-glass Fiberglass Chopped Strand Mat
Chopped strand mat is made from fiberglass chopped strands into certain length and bonded together with powder binder or emulsion binder. The typical end products are laminates, roofing, boats, bath equipment, automotive pats and cooling tower etc.
Product characteristics:
1.Very high tensile strength, suitable for filament winding or continuous laminating
2.Even thickness
3.Good resistance to water and chemical agent.
4.good mat integrity, low fuzz, less material waste and small roll diameter
5. good moldability with no springback at sharp angles
6. fast and consistent wet-out speed in resins
7. high dry and wet strength and good transparency
Uniform density ensures consistent fiberglass content and mechanical properties of the final products. The mats feature good mat integrity, low fuzz, less material waste and small roll diameter, excellent flexibility ensures good moldability with no springback at sharp angles, fast and consistent wet-out speed in resins and rapid air lease enhangce molding productivity and mechanica properties of the products. The product have high dry and wet strength and good transparency.
Technique data:
Specification |
Width (mm) |
Area Weight (g/m2) |
Moisture Content |
Combustible Content(%) Powder Emulsion |
CSM100g/m2 |
(100~3200)±5 |
100±10% |
≤0.20% |
12.0-15.0 7.5-8.0 |
CSM120g/m2 |
(100~3200)±5 |
120±10% |
≤0.20% |
12.0-15.0 7.5-8.0 |
CSM200g/m2 |
(100~3200)±5 |
20010% |
≤0.20% |
3.0-4.5 4.5-5.5 |
CSM225g/m2 |
(100~3200)±5 |
225±% |
≤0.20% |
3.0-5.0 3.0-5.0 |
CSM300g/m2 |
(100~3200)±5 |
30±10% |
≤0.20% |
3.0-5.0 3.0-5.0 |
CSM375g/m2 |
(100~3200)±5 |
375±10% |
≤0.20% |
3.0-5.0 3.0-5.0 |
CSM450g/m2 |
(100~3200)±5 |
450±10% |
≤0.20% |
3.0-5.0 3.0-5.0 |
CSM600g/m2 |
(100~3200)±5 |
600±10% |
≤0.20% |
3.0-5.0 3.0-5.0 |

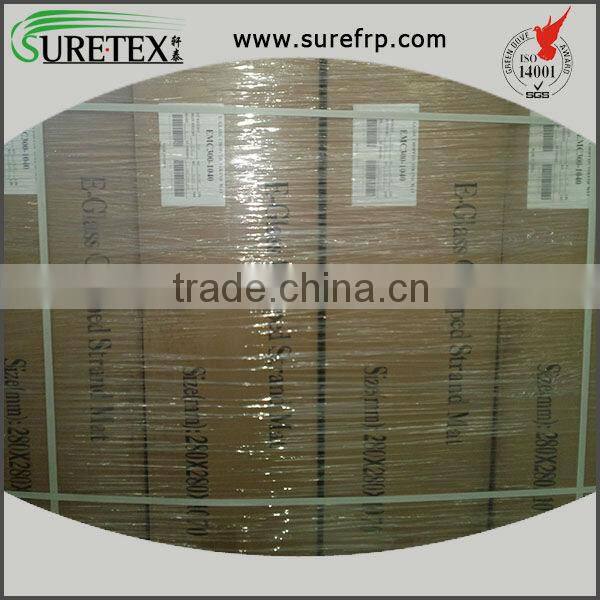

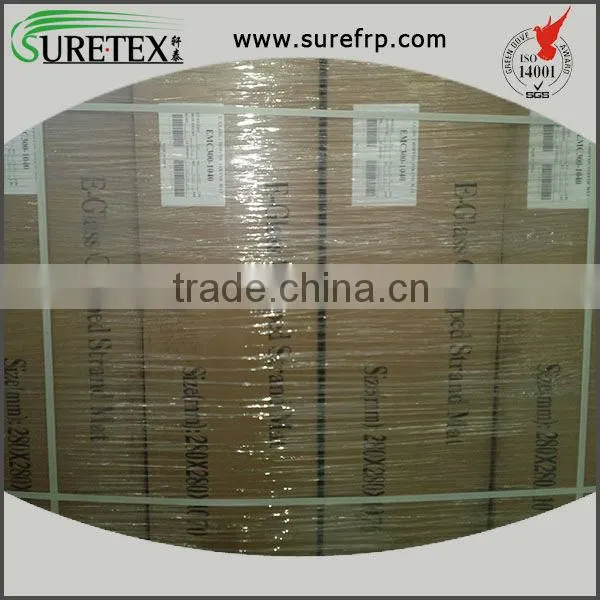

1.The package of the chopped strand mat is 30/36/40KG/ROll.
3.Shipping: By air, By sea, By train
4.Delivery Time: 15 days on receipt of payment
1.Sample of chopped strand mat is available.
2.Special specifications, eg.weight and width, can be customized according to the client's request.
3.If there's anything we can do for you, please feel free to contact us.

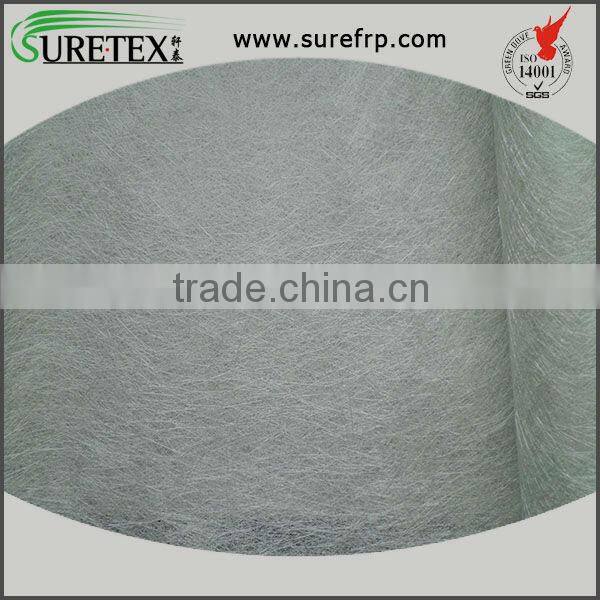

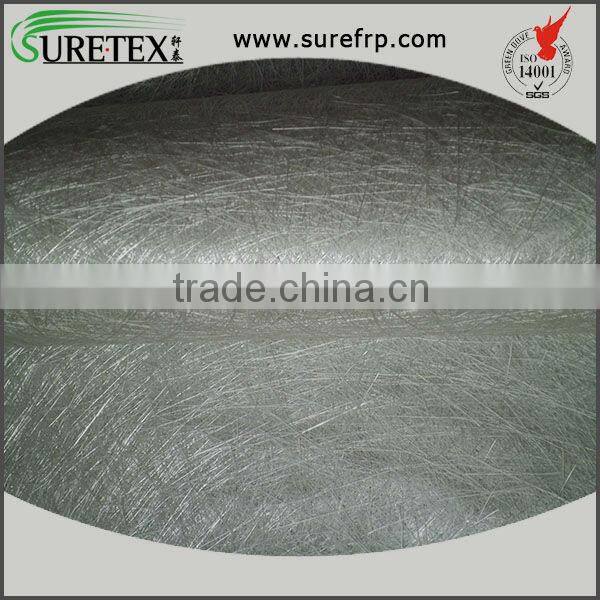

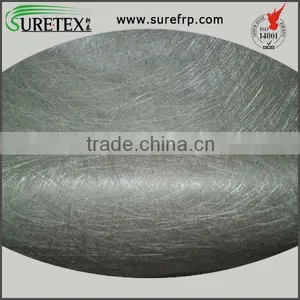

Pictures of Chopped Strand Mat
