Colourful Carbon Aramid Fabric Twill Weave 100%

Colourful Carbon Aramid Fabric Twill Weave 100% thumbnail-1
Colourful Carbon Aramid Fabric Twill Weave 100% photo-1
US$ 22 - 39 MOQ: 100 Square Meters
Key Specifications
Get Latest Price
Supply Type:
Make-to-Order
Material:
Aramid / Carbon Fiber
Pattern:
Other, twill
Contact Supplier Request Quote Chat Now
Tongxiang Suretex Composite Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Supply Type Make-to-Order
Material Aramid / Carbon Fiber
Pattern Other, twill
Style Twill
Width Other, 1000mm
Technics Woven
Yarn Count 5.5-7ends/cm
Density 5*5/cm
Weight 200gsm
Use Industry
Place of Origin Zhejiang, China
Brand Name SURETEX
Model Number CAH200

Specifications

Carbon Aramid Fabric Twill Weave
1.high tensile strength
2.abrasion,corrosion resistance
3.good conductivity

Carbon Aramid Fabric Introduction



Carbon Aramid Hybrid Fabric is woven by two kinds of fiber materials  (Carbon fiber, Aramid fiber ), which can provide high performance of both carbon and aramid.It has the great performance of composite materials in impact strength, rigidity and tensile strength. It has extensive applications,such as automotive  racing,marine,sports, aircraft construction,decoration,etc.



aramid fiber available: 600D, 840D, 1000D, 1500D, 3000D
carbon fiber available: 3k, 6k
Specification can be made by customer demand



Technique parameter:
Unit Weight
(gram/square meter)		 weave pattern Yarn Type yarn count(ends/cm) thickness
(mm)		 width
(mm)
warp weft warp weft
160 plain 3k 1000 5.5 5 0.27 1000
185 plain 3k 1000 6 6 0.30 1000
200 plain 3k 1000 6 7 0.34 1000
200 plain 3k 1500 5.5 5.5 0.30 1000
200 plain 1500 3k 5.5 5.5 0.30 1000
160 twill 3k 1000 5.5 5 0.27 1000
185 twill 3k 1000 6 6 0.30 1000
200 twill 3k 1000 6 7 0.34 1000
200 twill 3k 1500 5.5 5.5 0.30 1000
200 twill 1500 3k 5.5 5.5

Packaging & Shipping
1.Package: Roll length of carbon aramid fabric is 100m.
2.Packing: Air bubble film for inner packing and carton box for outer packing.

3.Shipping: By air, By sea, By train



4.Delivery Time: 15 days on receipt of payment.


Our Services

1.Sample of carbon aramid fabric is available.



2.Special specifications, eg.weight and width, can be customized according to the client's request.



3.If there's anything we can do for you, please feel free to contact us.

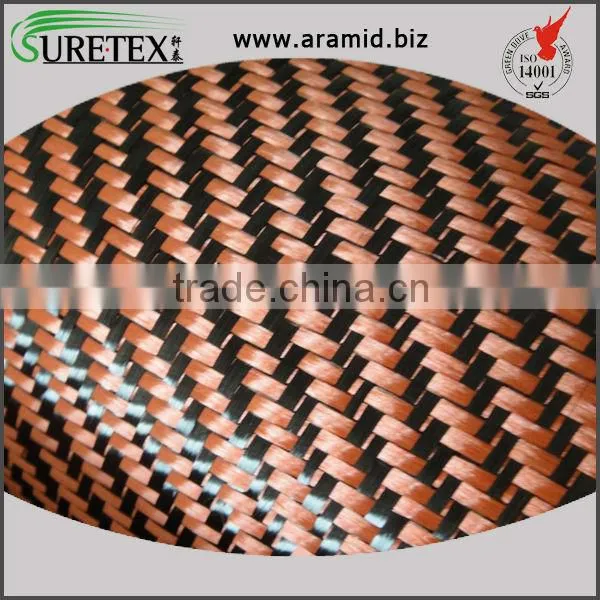

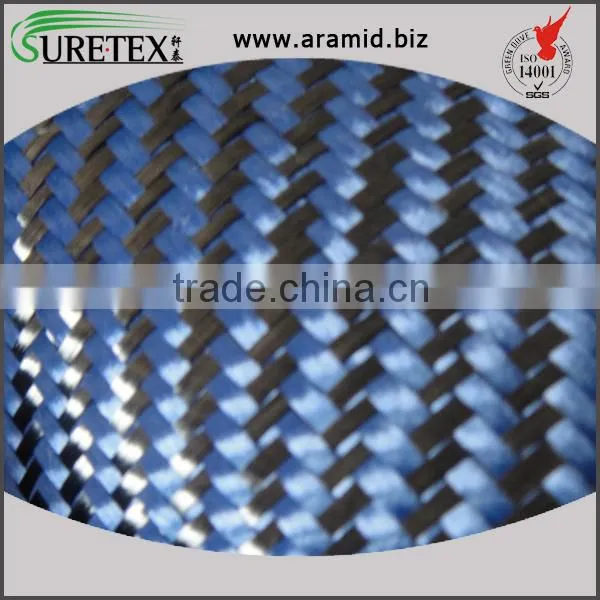

Pictures of Carbon Aramid Fabric



Colourful Carbon Aramid Fabric Twill Weave 100%Colourful Carbon Aramid Fabric Twill Weave 100%
