Specifications
1.zinc-alloy electrical panel lock for Network cabinet2.Model:SW-240-7
3.IP40.
4.Convenient to operate and durable.
1. zinc-alloy electrical panel lock for Network cabinet
2.Model:SW-240
3.IP40.
4.Convenient to operate and durable.
5.Material and Surface Treatment:
Housing, Lock-back, Button: Zinc alloy die cast, bright chrome plated or matt black powder coated.
Cap, Cam: Cold rolled steel accessory with zinc plated.
Lock-tongue, Cap, Key: Cold rolled steel accessory with nickel plated.
Pin, Locking Screw: Rolled steel accessory with zinc plated.
Torsion Spring,Spring: Carbon steel wire, passivation.
6.Application:
(1) Panel push-lock.
(2) Push the button, the lock-back will jump up, press and rotate the cam and the door will be open.
(3) Available in both right-hand and left-hand models.
(4) Three types of lock-back for choosing: pattern panel with insert,plane with insert and plane without insert .
(5) It is mainly used in lighting box, controlling switch-board , fire-fighting cabinet, telecom equipment cabinet, electricity cabinet and other kinds of cabinets......
1. Product's Brief
| Item | zinc-alloy electrical panel lock for Network cabinet#240 |
| Material | Zinc-alloy |
| Surface treatment | Zinc alloy die cast, bright chrome plated or matt black powder coated |
| Key | 2 pcs key for each lock |
| Master Key System | Available |
| Packing |
QTY: 75 pcs per box and 4 boxes per master carton. MEAS: 328*208*270 mm G.W.: 21.5 KG N.W.: 20.5 KG |
| Applicability | Metal or nonmetal cabinet,public telephones,metro auto-gate,Intelligent Terminal Device,Financial Terminals,Game Consoles,Vending Machine,Strongbox,Advertising Box and etc. |
| Website |
2. Shipment & Payment
| MOQ | 500 PCS |
| Sample | Free sample,Freight amount should be paid by customer. |
| Lead time | 10-25 days upon the order quantity. |
| Port of Loading | Shenzhen or other port as you request. |
| Payment terms | T/T, L/C, Paypal, West Union and etc. |

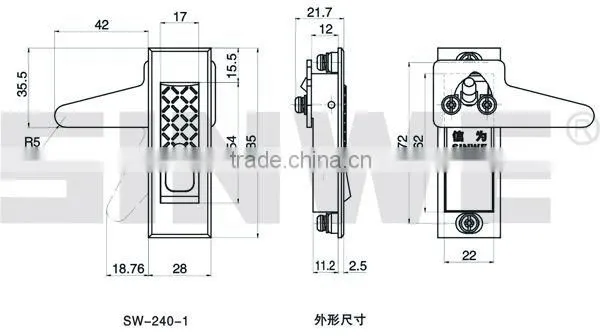

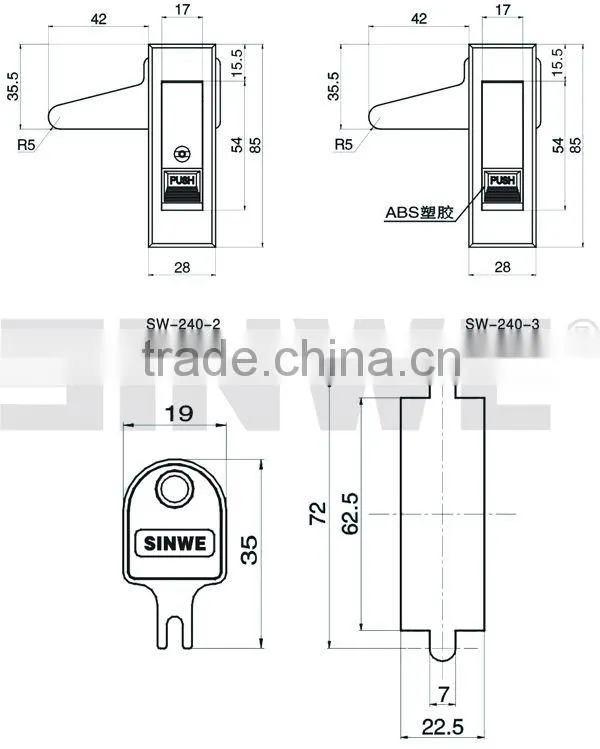

3.Technical Drawing:
4.Plant View
