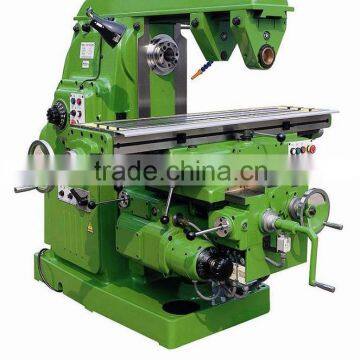

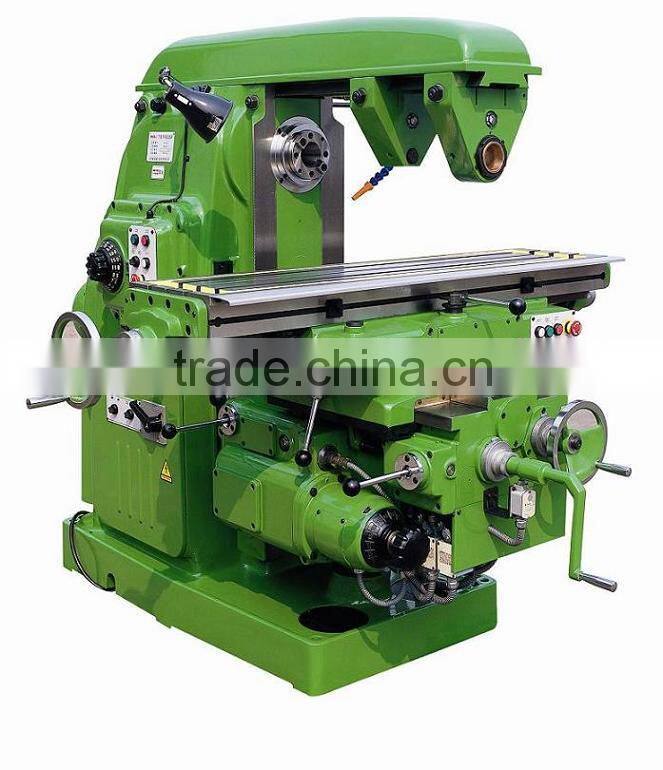

Vertical knee type milling mahine X6132:
1.Rectangular table guideways with high stability
2.Hardened and ground table surface,guideways
3.Automatic feeds on x,y axes,motorized lifting and lowering of table on z axis

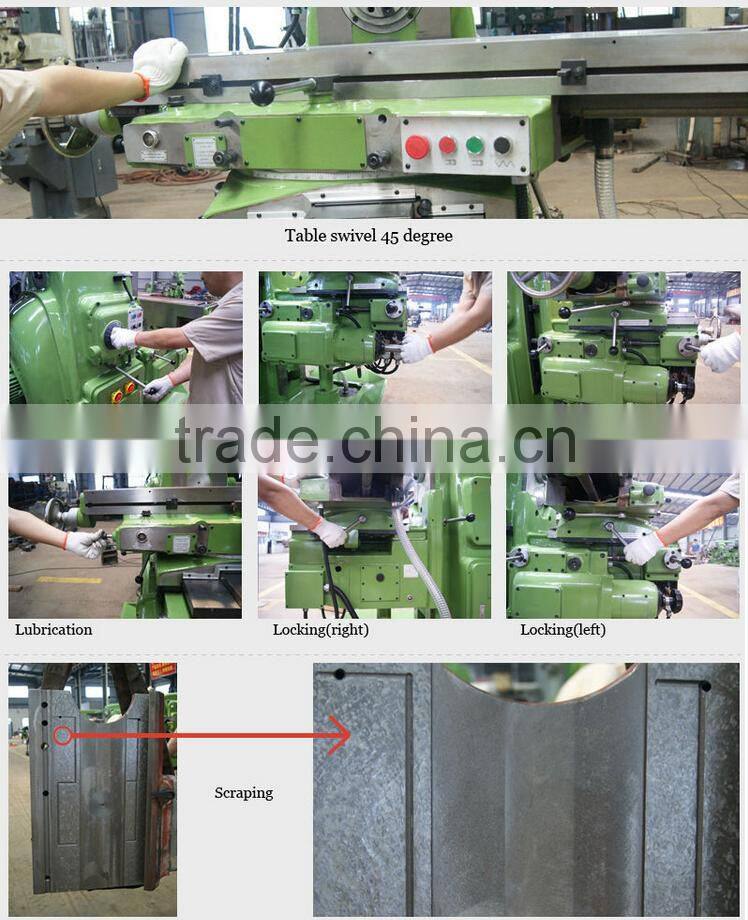

4.Worktable swivel angle +/-45 degrees;
5.CE electrical componets.
Specification details of X6132 Vertical knee type milling machine
Specifications |
Units |
X6132 |
Table size |
mm |
1320×320 |
Number/Width/Distance of T-slot |
mm |
3-18-70 |
Max. load of table |
kg |
500 |
Longitudinal travel (manual/auto) |
mm |
700/680 |
Transverse travel (manual/auto) |
mm |
255/244 |
Vertical travel (manual/auto) |
mm |
320/300 |
Cutting feed speed |
mm/min |
X,Y:23.5-1180,Z:8-394 |
Rapid feed speed |
mm/min |
X:2300,Y:2300,Z:770 |
Spindle speed range |
rpm |
30-1500 |
Spindle speed step |
(steps) |
18 |
Distance from table center to colum guideway |
mm |
215-470 |
Max. swivel angle of spindle |
|
±45° |
Distance from spindle axis to table surface |
mm |
30/350 |
Spindle motor power |
kW |
7.5 |
Overall dimension |
mm |
2294×1770×1720 |
Machine weight |
kg |
2650 |
Standard accessories:
- Milling arbor Ø32, Ø50
- Draw bar
- ISO50 Milling chuck :4,5,6,8,10,12,14,16
- ISO50 Milling arbor Ø40
- Taper sleeve 7:24 ISO50/MS4
- Foundation bolts
- Double ended wrench
- Single-head wrench
- Inner hexagon spanner
- Oil gun
Optional accessories suit the univeral milling machine, horizontal milling machine
Optional accessories:Rotary table, dividing head,change sleeve,DRO,clamp kit, sloting head
Packaging & Shipping
Universal horizontal knee type milling machine X6132
Type of package: Plywood case
Packing dimension: 216x178x199cm
N.W./G.W.: 2650/2950KGS
Suitable Container and quantity:
Standard 20' container: 3 sets
Standard 40' container: 6 sets
Delivery time: 45-60days in usual
Payment terms: TT30% down payment, TT70% before the delivery date.
Port: Qingdao/Shanghai
Horizontal knee type milling machine X6132
1. Technical support online service provided.
2. Technical files service provided.
3. On-site training service provided.
4. All of the questions will be replied within 24 hours
5. Warranty period: one year
During warranty period, if you have any parts broken because of qulity problem,we will supply to you free of charge by express.
Out of warranty period, if you have any question, you can contact with us, we will supply our best service to you as usual.
Find Machinery supplys a wide range of products and service to its global customers, including VMC, miling machine, radial drilling machine, CNC engrving machine, HSS annular cutter, TCT annular cutter, rail cutter, steel tools and non-sparking tools. They are widely sold to more than 50 countries and areas in Europe, America, and Middle-east, relying on the reliable product quality, reasonable price and perfect after-sales service system.
Find Machinery follows the concept of credit management cooperation and win-win strategy, and it has good comments from society and clients. Here we sincerely hope to cooperate with you to create a bright future.
