Universal swivel head milling machine XQ6226-1G description

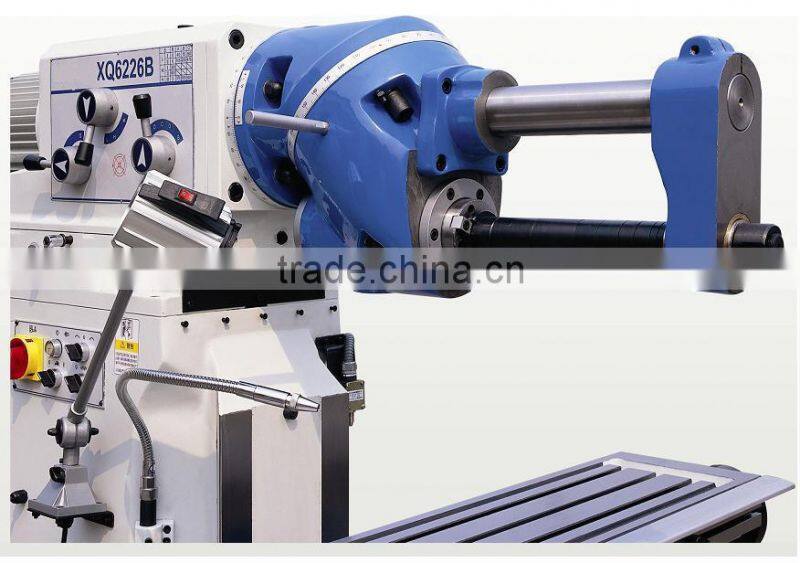

1.The milling head swivel in 360°

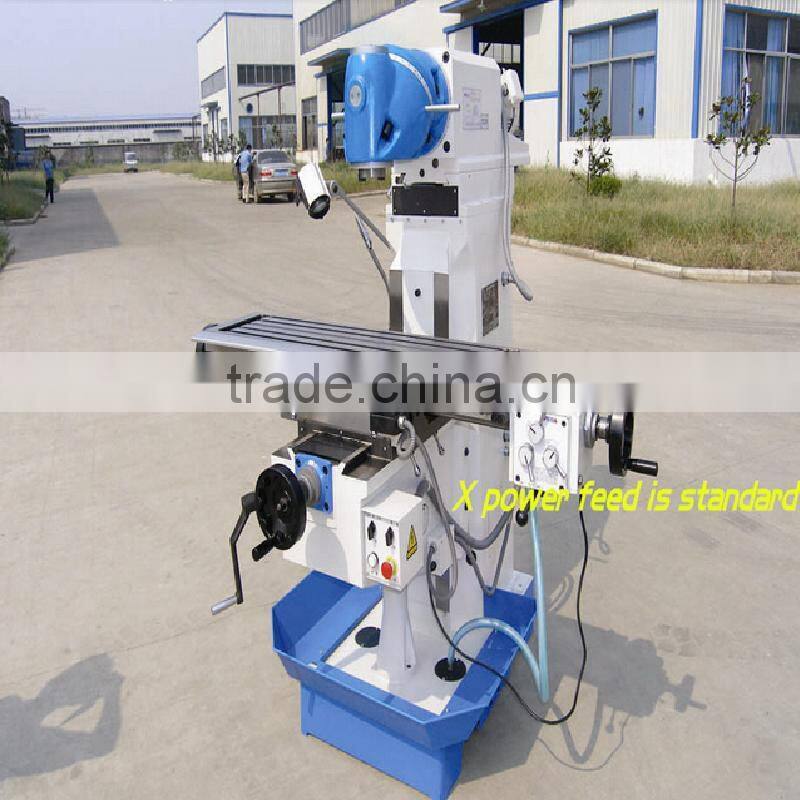

2.X axis is automatic feed, Y, Z axes are manual
XQ6226-1G Universal Swivel Head Milling machine
Specifications |
XQ6226B |
XQ6226A |
XQ6226-1G |
Table size |
1120×260 |
1120×260 |
1120×260 |
Table travel |
600×270 |
600×270 |
600×300 |
Spindle taper |
ISO40 |
ISO40 |
ISO40 |
Distance from spindle nose to table surface |
100-480 |
100-480 |
100-480 |
Max. end milling width |
125 |
125 |
125 |
Max. vertical milling dia. |
25 |
25 |
25 |
Spindle speed range |
45-1660 |
45-1660 |
45-1660 |
Swivel angle of swivel head |
360° |
360° |
360° |
Overall dimension |
1655×1500×1730 |
1655×1500×1730 |
1655×1325×1730 |
Spindle motor power |
2.2 |
2.2 |
2.2 |
Machine weight |
1480 |
1400 |
1300 |
Standard accessories:
- Mill chuck
- Inner hexagon spanner
- Face mill arbor
- Nut washer
- Tool bar
- Adapter shaft
- Support
- Foundation bolt
- Draw bar
- Wrench
- Screw
Optional accessories suit the universal milling machine
Optional accessories:Rotary table,power feed,dividing head,change sleeve,DRO,milling plug,clamp kit.
Packaging & Shipping
Machine model: mini universal milling machine XQ6226-1G
Type of package: Plywood case
Packing dimension:
160X146X222CM (one set in one case) N.W./G.W.: 1350/1500KGS
220X146X222CM (two sets in one case) N.W./G.W.:2700/2850KGS
Suitable Container and quantity:
20' standard container: min. 4sets; max.8sets
40' standard container: min. 8sets; max.16sets
Delivery time: 45-60days in usual
Payment terms: TT30% down payment, TT70% before the delivery date.
Port: Qingdao/Shanghai
Universal milling machine warranty period: one year
During warranty period, if you have any parts broken because of qulity problem,we will supply to you free of charge by express.
Out of warranty period, if you have any question, you can contact with us, we will supply our best service to you as usual.
