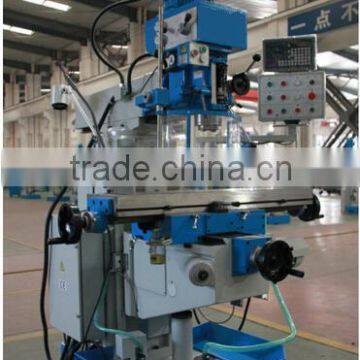

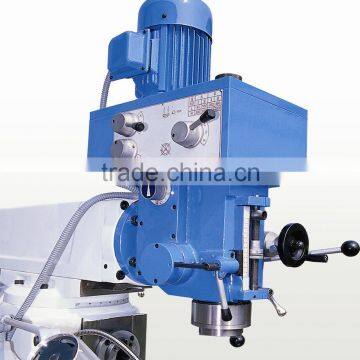

Multi Function XZ6350ZB Milling Dilling Machine

Multi Function XZ6350ZB Milling Dilling Machine thumbnail-1
Multi Function XZ6350ZB Milling Dilling Machine thumbnail-2
Multi Function XZ6350ZB Milling Dilling Machine thumbnail-3
Multi Function XZ6350ZB Milling Dilling Machine thumbnail-4
Multi Function XZ6350ZB Milling Dilling Machine thumbnail-5
Multi Function XZ6350ZB Milling Dilling Machine photo-1
Multi Function XZ6350ZB Milling Dilling Machine photo-2
Multi Function XZ6350ZB Milling Dilling Machine photo-3
Multi Function XZ6350ZB Milling Dilling Machine photo-4
Multi Function XZ6350ZB Milling Dilling Machine photo-5
US$ 4,500 - 4,950 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
FINDMC
Contact Supplier Request Quote Chat Now
Jinan Find Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qing Dao / Shang Hai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shandong, China
Brand Name FINDMC
Model Number ZX6350ZB
Type Vertical
CNC or Not Normal
Voltage 380V 50Hz
Power(W) 2.2 KW
Dimension(L*W*H) 1520*1290*2150 mm
Weight 1400 Kg
Certification ISO9001:2008
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

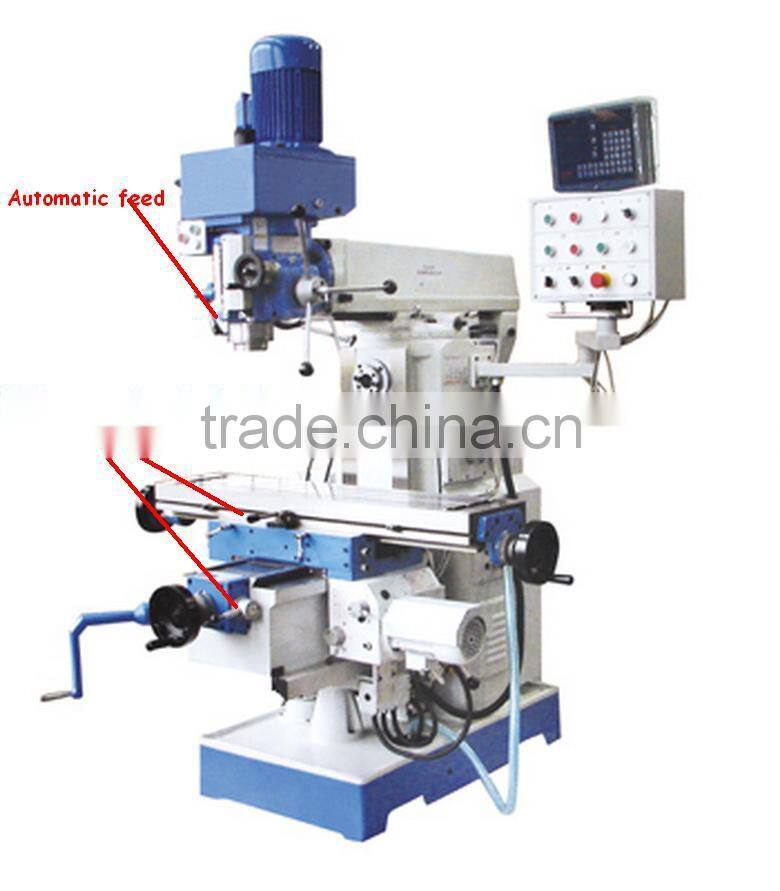

 Milling drilling machine details







Specifications

Units

XZ6350ZB

Table size

mm

1120×260

Table travel

mm

600×270

Spindle taper



ISO40

Max. drilling dia.

mm

50

Automatic drilling dia.

mm

14

Max. vertical milling dia.

mm

25

Distance between spindle nose and table surface

mm

100-400

Spindle speed range

rpm

90-2000(V)/38-1310(H)

Spindle travel

mm

120

Overall dimension

mm

1520×1290×2150

Spindle motor power

KW

2.2

Machine weight

kg

1400







N0.

Name

Model

Qty

1

Milling Drilling machine

XZ6350ZB

1

2

Drill chuck

16

1

3

Inner-hexagonal spanner

5

1

4

Wedge shifter



1

5

Reduction sleeve

ISO40/MT3,ISO40/MT2

Each 1

6

wrench

S21-24

1

7

Spindle arbor



1

8

Vice

160

1

9

Milling chuck

4—16

1set

10

Horizontal milling arbor

22,27

2sets

11

Draw bar



2

12

Operation manual



1

13

Quality certificate



1

14

Packing list



1

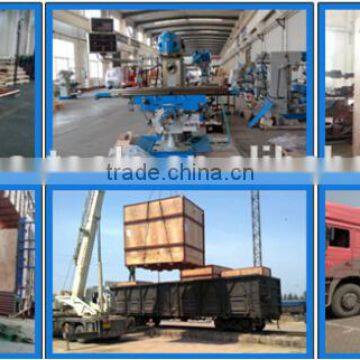

Milling Drilling machine Z6350ZB Type of package: Plywood case



Milling Drilling machine Z6350ZB  Packing dimension:

                                    160*152*222cm (one set in one case)      N.W./G.W.: 1400/1650KG

                                     220*152*222cm (two sets in one case)    N.W./G.W.: 2800/2950KG

Suitable Container and quantity:

Standard 20' container: 3 sets         Standard 40' container: 6 sets





Delivery time: 45-60days



Payment terms: TT30% down payment, TT70% before the delivery
