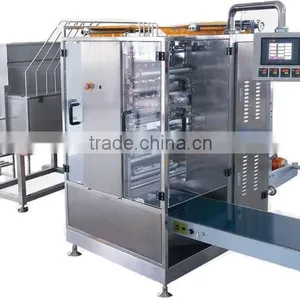

DXDO-J900E CATSUP FOUR SIDE SEALING & MULTI LINE PACKING MACHINE
USE:
Suitable for packing catsup, thick paste material in the pharmacy(medicine), food, daily chemical and other industries, automatic packing into sachet with Measurement requirement, such as Peanut oil, salad oil, tomato paste, curry sauce, cough syrup; Shampoo, oil, Vaseline, creams of all kinds, and much more.
Feature:
1. Advanced performance, high power, low noise, compact structure, Operate steadily , easy to maintain, and has a long life span.
2. Adopt five shaft servo motor in step driver, man-machine interface touch adjustment, controlled by PLC, it is precise in automatic in step positioning.
3. A high degree of automatic. machine can finish packing at one time from longitudinal sealing, longitudinal cutting, transverse sealing, filling, embossing, notch cutting, cutting Dotted line, transverse cutting to outputting finished sachets.
4. High precision whole rolling type heat sealing roller is adopted as sealing mould. 4-side sealing, multi-line sachets form.
5. Fast and convenient to adjust, it can step-less adjust pouch length without changing the mould. And can adjust the functions as longitudinal sealing, transverse sealing, filling, embossing, Dotted line cutting and transverse cutting through man-machine interface.
6. Accurate in measurement, According to different paste viscosity, specifically designed of reciprocating plunger pump with rotate valve controlling, matched with stroke adjustment air cylinder feeding, each line's dosage can be adjusted easily and accurately.
7. A PLC is used for automatic control, each actuating mechanism adopt servo motor to driver, it is precise in automatic in step positioning, reliable performance, convenient to operate, and fully automatic.
8. Photoelectric tracking system is adopted to ensure correct printing and with automatic counting function.
9. Adaptability of the package film. The sealing temperature of machine is with automatic control, and with high control accuracy (± 1C °). Suitable for most complex film packing film in home and abroad, as PET/AL/PE,PET/PE,NY/AL/PE,NY/PE and so on.
10. Extra function set up, for example, sachet cutting cans can choose dotted line knife, flat cutting knife or abnormal shape knife. Printing cans can choose embossing (hard batch) or ink wheel printer, and the matching of alarm requirements and so on.
Main technological parameter :
Pouch length
| 50-300mm(L) (adjustable) |
Pouch width | 35-105mm(W) |
Packing speed | 30-50times/min(depend on pouch size and material) |
Measuring range | 1-100ml |
Sealing fashion | 4 side sealing |
Applicable film | PET/AL/PE PET/PE NY/AL/PE NY/PE |
Max width of film roll | 900mm |
Max film roll diameter | Φ300mm |
Film roll core diameter | Φ75mm |
Power voltage | 380V/ 50HZ(do as customer's request) |
Power | 12KW |
Package size | (L)1650mm×(W)1500mm×(H)2200mm |
Overall dimension | (L)1800mm×(W)3350mm×(H)2000mm |
G.W | 1200KG |
Accessory:
Product name | Brand |
PLC/ Programmable controller PLC | JAPAN MITSHUBISH |
TOUCHING SCREEN | TAIWAN WEINVIEW |
AC CONTACTOR | GERMANY SIMEN |
INTERMEDIATE RELAY | JAPAN OMRON |
SOLID RELAY | JAPAN OMRON |
TEMP.CONTROLLER | JAPAN OMRON |
COLOUR MARK SENSOR | GERMANY SICK |
PROXIMITY SWITCH | GERMANY SICK |
SCRAM BUTTON | FRENCH SCHNEIDER |
MOTOR | CHINA |
SPEED REDUCER | ZHEJIANG HANGZHOU |
SERVO MOTOR | JAPAN MITSHUBISH |
SERMP DRIVE | JAPAN MITSHUBISH |
AIR SWITCH | CHINT GROUP |
SWITCH POWER | TAIWAN MEAN WELL |
FEEDING ELECTRO-MAGNETIC VALVE | Japan SMC |
SLITTER | HIGH SPEED TOOL STEEL |
HEATING PIPE | STAINLESS |
COVER | 304 STAINLESS |
User demands analysis
Engineering design
Product manufacturing
Automatic control integration
Certification service
Engineers are available to go abroad to help installation
All the products before delivery should be tested by assemble & debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package. In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory.
All the products will be packed in wooden case. The exported products use plywood case to pack.
The foot margin of equipment fixed tightly to make the machine can experience loading & uploading, the upward mark will be posted on the wooden case.
Our company is professional to manufacture and export pharmaceutical machine, food machine. Machines include:
Pharmaceutical machine:
Tablet press machine, blister packing machine, capsule filling machine, capsule / tablet counting production line, soft capsule making machine, mixing machine.
Liquid filling machine:
Vial filling machine, ampoule filing machine, wrapping machine, tube filling and sealing machine.
Food machine:
Jam, butter, chocolate packing machine, food tablet press machine and so on.
Export:
Machines have exported to South America, Europe, South-east Asia, and so on.
Welcome to contact with us.
