JZG Homogenize tank
Application:
1.Cosmetic and daily chemical product: Cosmetic cream, lotion, shampoo, detergent, health care product, gel, Laundry detergent, hand sanitizer, armpits lotion etc.
2.Pharmaceutical product: Ointment, Ice packs, injection liquid, penicillin etc
3.Food : Salad, mayonnaise, peanut butter, sesame butter, buttery, Animal fat, iced products, healthy food etc.
4. Beverage: Fruit Juice, Milk Juice etc.
5.Chemical: Paints, Pigments, dyes, photo solvents, Rubber and resin, pesticides ,Shoe polish, general chemicals etc.

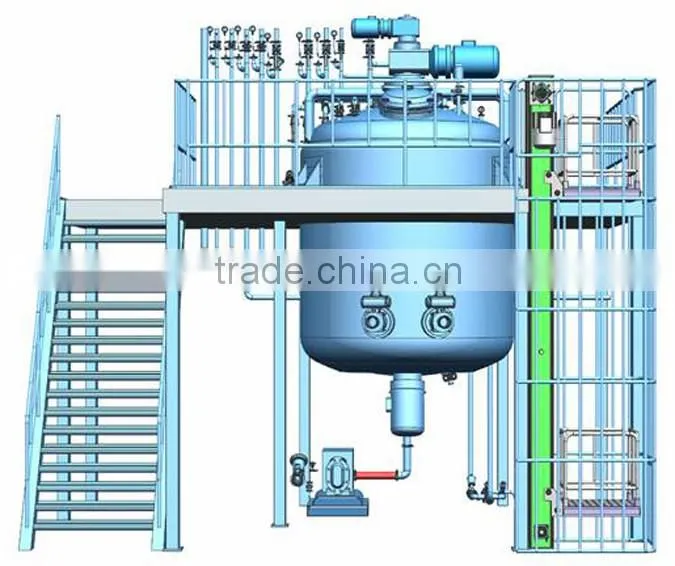

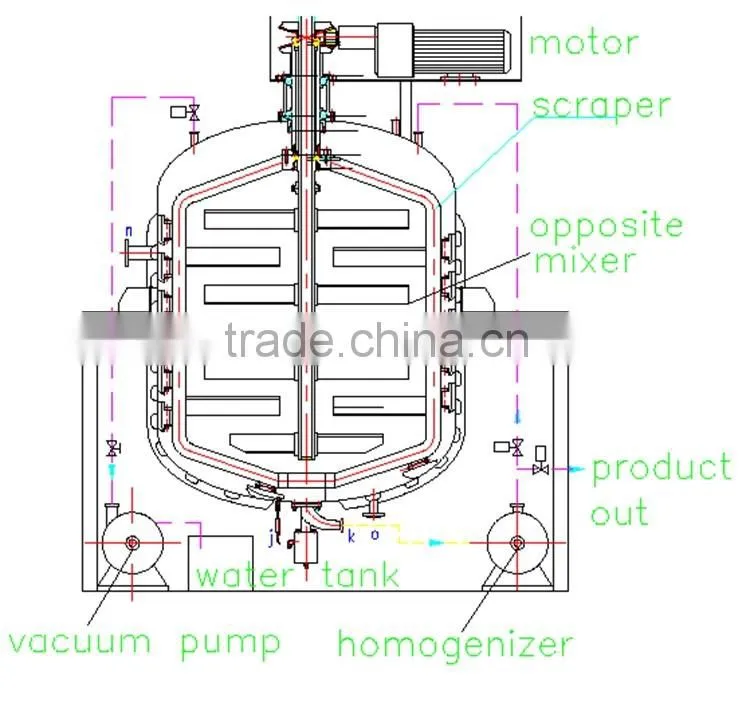

Standard structure drawing:
Structure:
This homogenize tank include tank, homogenizer, vacuum pump, water tank, mixer, pipes, meters, valves, temperature control system, heating system, cooling system and control system.
The detail requirement should be according to customer’ requirement
Description:
This stainless steel homogenize tank is used for mixing, dispersing, dissolving, emulsification, dissolution, reaction, formulating, heating, cooling, warm-keeping, cultivating, disinfecting and storage etc. Different types of blades and relevant speed achieve the production condition.
Parameter:
Model |
30L |
50L |
100L |
200L |
500L |
1000L |
2000L |
3000L |
5000L |
10000L |
50000L |
Diameter mm |
300 |
300 |
400 |
500 |
700 |
900 |
1200 |
1300 |
1500 |
1800 |
3100 |
Height mm |
1600 |
1700 |
2000 |
2300 |
2600 |
3000 |
3800 |
4300 |
4500 |
5300 |
8000 |
Filling capacity |
65%-80% |
||||||||||
|
Inside Pressure Mpa |
-0.1---0.2 |
||||||||||
Jacket pressure Mpa |
-0.1---0.4 |
||||||||||
Cool method |
By jacket |
By pipe |
|||||||||
Mix speed rpm |
0--300 |
||||||||||
|
Motor Power kw |
1.1 |
1.5 |
1.5 |
2.2 |
3 |
4 |
5.5 |
7.5 |
15 |
22 |
50 |
Feature:
1. Suit for the process about formulating, dissolving, heating, cooling, warm-keeping, cultivating, disinfecting and storage. It is available online CIP cleaning ( only suitable for enclosed structure)
2. Designed in accordance with sanitary requirements, so the structural design is very user-friendly, easy to operate, healthy to store.
3. The inner surface is mirror-polished (roughness Ra≤0.4µm); the welding of all kinds of nozzles, endoscopic, manholes and the pot adopt stretch flanging process arc transition, easy to clean with no dead ends, ensure the reliability and stability in the production process.
4.T he main blending adopts stepless speed variation device, which can reduce the formation of bubbles when the temperature is low and the viscosity is high.
5.The gear pump circulating discharging device can accelerate the forming of products and realize rapid discharging.
Order requirement:
1 How much liter of homogenize tank do you need?
2 what this tank used for?
3 What way do you want to heat the homogenize tank ? By steam or electric?
4 How much speed of the mixer do you need? Do you need Frequency speed?
5 Do you need vacuum system?
6 do you need automatic or manual?
5 When do you need this mixing tank?

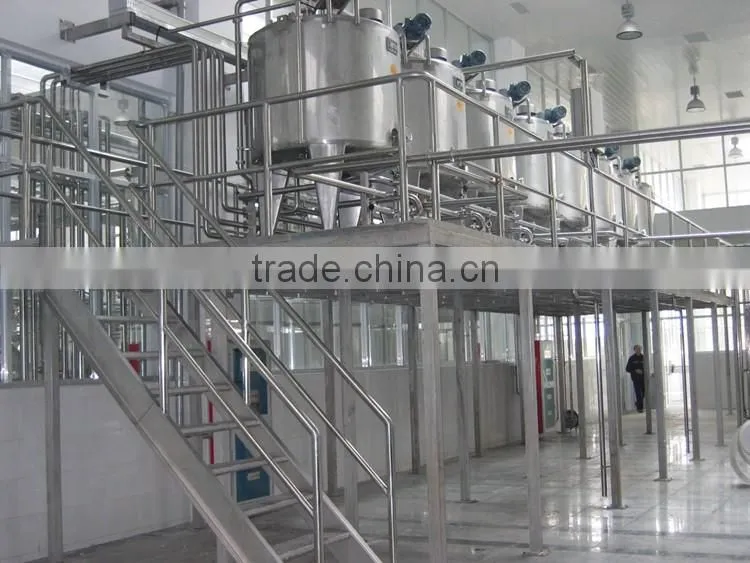

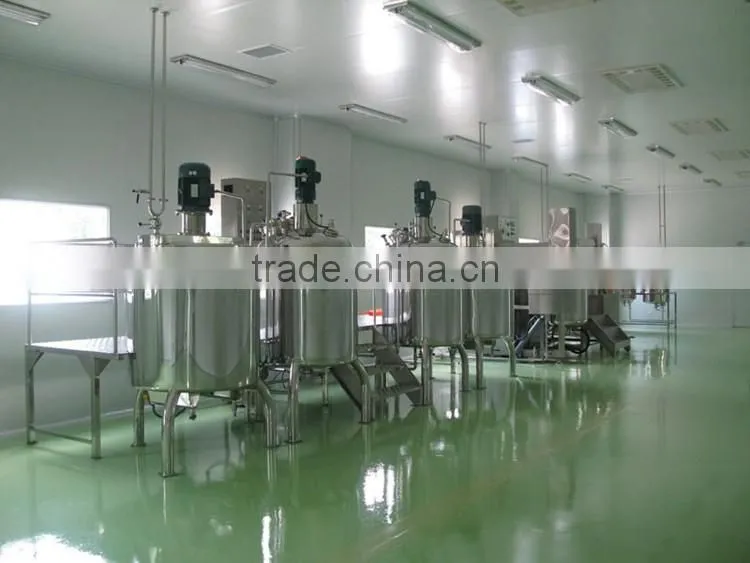

Install picture:
Our Services
1 we design the machine according to your raw material viscosity, temperature requirement, vacuum requirement ,heating ways and cooling requirement
2 we manufacture the machine according to the confirmed drawing, and we test the machine then delivery to yourside
3 engineer is available to install the machine and train your operator how to operate the machine
we are specially manufacture of emulsify tank
