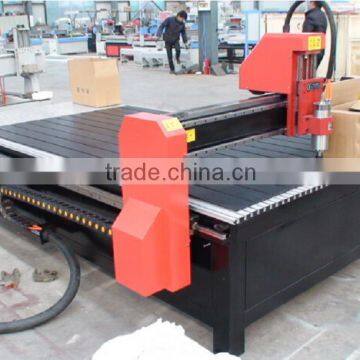

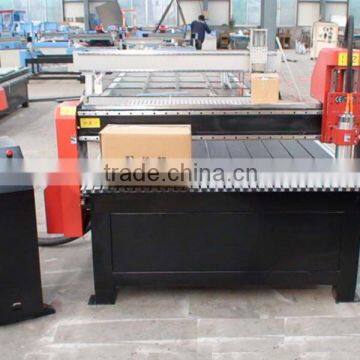

Feature of woodworking engraving machine FD1325 wood cnc router
>Two-motor drive system ensures quick, even, stable operation
>The vacuum cleaning system offers a clean working environment and better quality
>High performance Subdivision stepper motor operates smoothly at maximum speed.
>Highly accurate gears allow for engraving characters as small as 1.5mm
>The unique calculating system realizes speedy, accurate, curvy operation
>Large Water-cooled High-Frequency High-Power Motor features low noise, constant speed, and long operational life
>12 Month Warranty on parts and whole machine
| Model | FD1325/FD2030 | |
| Working Area | 1300×2500×200mm/ 2000×3000×200mm | |
| Spindle Motor | 3kw/4.5kw Inverter-driven spindle motor cooled by water (or air for option) | |
| Working Mode | Stepper motor with leadshine drive | |
| Control System |
DSP off-line control panel with USB interface(128MB) NC-Studio control system Mach3 for option |
|
| Drive Mechanism | Gear-wheel on x,y axis | |
| Table Surface | Vacuum table o& T-slot extrusions | |
| Frame | wholly thick Welded-steel structure | |
| Motion Positioning Accuracy | ±0.03/300mm | |
| Repositioning Accuracy | ±0.05mm | |
| Max Motion Speed | 50,000mm/min | |
| Max Working Speed | 30,000mm/min ( up to the processing materials and the router bits) | |
| Rotating Speed of Spindle | 2,4000rpm | |
| Z-axis setting | Auto Z origin tool high sensor | |
| Dictate Formate | G code, *.u00, *.mmg, *.plt | |
| Operating Voltage | 3phase 380v ( Single Phase, 220v for option) |
|
| Software | Type3 copy/original with Dongle or Wentai (ArtCUT), ArtCAM software | |
| Packing Size | 3150×1950×1450mm | |
| Lubrication System | Oil lubrication system | |
| Net weight/ Gross Weight | 1227kg/ 1350kgs | |
| Noise Level | Racing | LAeep dB(A)72±1 |
| Engraving | LAeep dB(A)80±2 | |
| Engraving Peak | LAeep dB(C)95 | |
| Optional Parts | Dust Collecting System 2.2kw/3kw | |
| Vacuum Table with Air Pump (For XJ1224,1325) | ||
| Mist Sprayer and flume for metal and stone processing | ||
| Rotary device with Dia100mm/200mm | ||
| DSP System w/Portable Control Pad (128MB) | ||
12pcs of Cutters, 2pcs ofCollets,Control Card. Spanner x 3, Brush, Double sided tape, Power cord, USB data cable.
Machine: woodworking engraving machine FD1325 wood cnc router

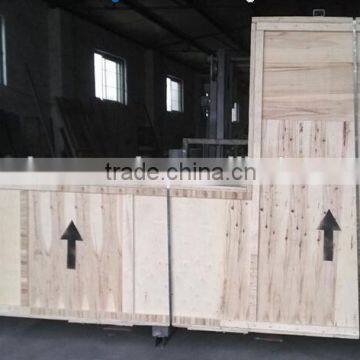

Package details: plywood case
Package size: 3150×1950×1450mm
Find Machinery supplys a wide range of products and service to its global customers, including VMC, miling machine, radial drilling machine, CNC engraving machine, HSS annular cutter, TCT annular cutter, rail cutter, steel tools and non-sparking tools. They are widely sold to more than 50 countries and areas in Europe, America, and Middle-east, relying on the reliable product quality, reasonable price and perfect after-sales service system.
Find Machinery follows the concept of credit management cooperation and win-win strategy, and it has good comments from society and clients. Here we sincerely hope to cooperate with you to create a bright future.
Woodworking engraving machine FD-1325 wood cnc router
1. Technical support online service provided.
2. Technical files service provided.
3. On-site training service provided.
4. All of the questions will be replied within 24 hours
5. Warranty period: one year
