High Strength Milling Machine XK5032 CNCvertical Milling Machine

High Strength Milling Machine XK5032 CNCvertical Milling Machine thumbnail-1
High Strength Milling Machine XK5032 CNCvertical Milling Machine thumbnail-2
High Strength Milling Machine XK5032 CNCvertical Milling Machine thumbnail-3
High Strength Milling Machine XK5032 CNCvertical Milling Machine thumbnail-4
High Strength Milling Machine XK5032 CNCvertical Milling Machine thumbnail-5
High Strength Milling Machine XK5032 CNCvertical Milling Machine thumbnail-6
High Strength Milling Machine XK5032 CNCvertical Milling Machine photo-1

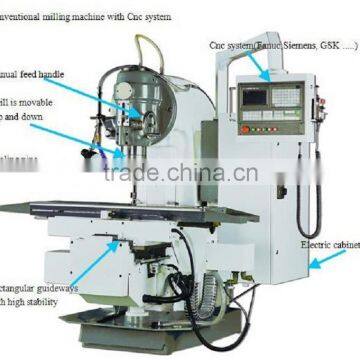

High Strength Milling Machine XK5032 CNCvertical Milling Machine photo-2
High Strength Milling Machine XK5032 CNCvertical Milling Machine photo-3
High Strength Milling Machine XK5032 CNCvertical Milling Machine photo-4
High Strength Milling Machine XK5032 CNCvertical Milling Machine photo-5
High Strength Milling Machine XK5032 CNCvertical Milling Machine photo-6
US$ 17,300 - 27,300 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
FINDMC
Contact Supplier Request Quote Chat Now
Jinan Find Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qing Dao / Shang Hai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shandong, China
Brand Name FINDMC
Model Number XK5032
Type Universal
CNC or Not CNC
Voltage 380V 50Hz
Power(W) 7.5KW
Dimension(L*W*H) 2929*2055*1960 mm
Weight 3850 Kg
Certification CE ISO9001
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas





XK5032 Vertical CNC milling machine

Specifications

Units

XK5032

Table travel (X,Y,Z)

mm

800×280×330

Table size

mm

1320×320

Number/Width/Distance of T-slot

mm

3-18-70

Max. load of table

kg

350

Distance from spindle nose to table

mm

60-390

Distance from spindle axis to column guide way

mm

350

X,Y,Z Table rapid feed speed

mm/min

4000×4000×2000

X,Y(Z)Table feed speed

mm/min

6-3200(3-1600)

Spindle travel

mm

70

Taper of spindle



ISO50(7:24)

Max. revolving angle of vertical milling head

°

±45°

Spindle speed range

rpm

 30-1500 (18steps)

Spindle motor power

kW

7.5

Longitudinal, transverse feed motor torque

N.m

12

Vertical feed motor torque

N.m

22

Max. spindle torque

N.m

1000

Overall dimension

mm

2929×2055×1960

Machine weight

kg

3850







The Vertical knee type milling machine X5032 C/W the head swivels in  ±45°





Accessories

 Standard accessories:

  • Milling arbor   Ø32, Ø50
  • Draw bar
  • ISO50 Milling chuck :4,5,6,8,10,12,14,16
  • ISO50 Milling arbor Ø40
  • Taper sleeve 7:24 ISO50/MS4
  • Foundation bolts
  • Double ended wrench
  • Single-head wrench
  • Inner hexagon spanner
  • Oil gun


Optional accessories suit the univeral milling machine, vertical milling machine



Optional accessories:dividing head,change sleeve,clamp kit



Packaging & Shipping





Machine: CNC milling machine XK5032
Type of package: Plywood case
Packing dimension: 250*220*225cm N.W./G.W.: 3850/4050KGS









FAQ

Delivery time: 45-60days in usual

Payment terms: TT30% down payment, TT70% before the delivery date.  L/C at sight

Port: Qingdao/Shanghai



Our Services



Vertical CNC milling machine XK5032



1. Technical support online service provided.



2. Technical files service provided.



3. On-site training service provided.



4. All of the questions will be replied within 24 hours



5. Warranty period: one year



During warranty period, if you have any parts broken because of qulity problem,we will supply to you free of charge by express.



Out of warranty period, if you have any question, you can contact with us, we will supply our best service to you as usual.
