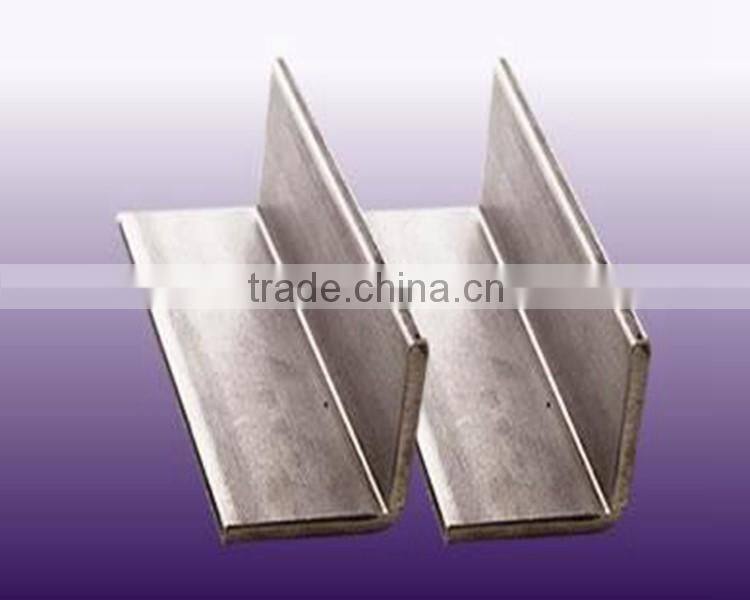

Angle Bar Bar Cutting Machine 6mm Steel Angle Bar With Bar Cutter and Bar Bender Quality Choice

Name: Angle Bar Bar Cutting Machine 6mm Steel Angle Bar With Bar Cutter and Bar Bender Quality Choice
Brand: emerson
Availability: InStock

FOB Price

US$ 330 - 471 / Ton

1 Ton(Min. Order)

Port Tianjin China
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Standard	AISI, ASTM, DIN, GB, JIS	Dimensions	20203mm-20020024mm
Grade	S235JR-S335JR Series	Place of Origin	Tianjin, China
Brand Name	emerson	Model Number	Q235/Q345/SS400/S235/S275
Type	Equal	Application	Construction

Product Description

WHY US

---------You will never be low on supply

With our monthly production capacity of 1000 tons

Chemical Composition & Mechanical Property

Standard	Grade	C max	Mn max	Si max	P	S	Yield strength max	Tensile strength	Elongation%
Q/BB 107-2009	Q235B	0.20	1.40	0.35	0.045	0.045	205	410	21

Width	20mm-200mm
Length	1m~6m
Package Detail	Export standard package, bundled or be required. The inner size of container is below: 20ft GP: 5.9m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM 40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM 40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM
Delivery Time	5 days for stock sizes,7-15days for new production sizes

Application

Angle Bar bar cutting machine 6mm steel angle bar with bar cutter and bar bender

1): Can be used in many fields such as building, automobile, shipbuilding, petrochemical, machinery, medicine, electric power, energy, space, building and decoration, etc.

2): Can be made into mould template, mortise pin, column

3): This kind of steel have good mechanical property, is widely used in structural parts which may support stress alternation, especially made into some connecting rods, bolts, wheel gear...

Theoretical Weight

	Specification	Weight (kg/m)
2#	20203	0.889
2#	20204	1.145
2.5#	25253	1.124
2.5#	25254	1.459
3#	30303	1.373
3#	30304	1.786
3.6#	36363	1.656
	36364	2.163
	36365	2.654
4#	40403	1.852
	40404	2.422
	40405	2.976
4.5#	45453	2.088
	45454	2.736
	45455	3.369
	45456	3.985
5#	50503	2.332
	50504	3.059
	50505	3.770
	50506	4.465
5.6#	56563	2.624
	56564	3.446
	56565	4.251
	56566	5.040
	56567	5.812
	56568	6.568
6#	60605	4.576
	60606	5.427
	60607	6.262
	60608	7.081
6.3#	63634	3.907
	63635	4.822
	63636	5.721
	63637	6.603
	63638	7.469
	636310	9.151
7#	70704	4.372
	70705	5.397
	70706	6.406
	70707	7.398
	70708	8.373
7.5#	75755	5.818
	75756	6.905
	75757	7.976
	75758	9.030
	75759	10.068
	757510	11.089
8#	80805	6.211
	80806	7.376
	80807	8.525
	80808	9.658
	80809	10.774
	808010	11.874
9#	90906	8.350
	90907	9.656
	90908	10.946
	90909	12.219
	909010	13.476
	909012	15.940
10#	1001006	9.366
	1001007	10.830
	1001008	12.276
	1001009	13.708
	10010010	15.120
	10010012	17.898
	10010014	20.611
	10010016	23.257
11#	1101107	11.928
	1101108	13.535
	11011010	16.690
	11011012	19.782
	11011014	22.809
12.5#	1251258	15.504
	12512510	19.133
	12512512	22.696
	12512514	26.193
	12512516	29.625
14#	14014010	21.488
	14014012	25.522
	14010414	29.490
	14014016	33.393
15#	1501508	18.644
	15015010	23.058
	15015012	27.406
	15015014	31.688
	15015015	33.804
	15015016	35.905
16#	16016010	24.729
	16016012	29.391
	16016014	33.987
	16016016	38.518
18#	18018012	33.159
	18018014	38.383
	18018016	43.542
	18018018	48.634
20#	20020014	42.894
	20020016	48.680
	20020018	54.401
	20020020	60.056
	20020024	71.168
22#	22022016	53.901
	22022018	60.250
	22022020	66.533
	22022022	72.751
	22022024	78.902
	22022026	84.987
25#	25025018	68.956
	25025020	76.18
	25025024	90.433
	25025026	97.461
	25025028	104.422
	25025030	111.318
	25025032	118.149
	25025035	128.271

Production Flow Picture

Our Services

Our Services

Angle Bar bar cutting machine 6mm steel angle bar with bar cutter and bar bender

*1.cutting the larger bar into the small piece customer demand,cut to special sizes

*2.can weld by your drawing

Related Product

Packaging & Shipping

Packing about our products

Packaging	when each plate weight is under 1 ton, it will be in bundle with steel strips 2-4, when each plate weight is over 1ton, it will be piece by piece.
20 feet container contains dimension	Width under 2300mm, length under 6000mm
40 feet container contains dimension	Width under 2300mm, length under 12000mm
By bulk vessel	Freight charge is low by bulk cargo, and large heavy sizes can not be loaded into containers can shipping by bulk cargo

Detailed Images

FAQ

1. What is your minimum order quantity?

For steel plate;one piece is ok. For steel pipe;one ton is ok.

Too litter quantity,the cost relatively high added fregiht. Larger quantity, better price.

2.How long will it take to receive my order?

7 days for stock sizes, 20-25 days for new product
3.Which type of shipping do you usually choose?

Packaging	when each plate weight is under 1 ton, it will be in bundle with steel strips 2-4, when each plate weight is over 1ton, it will be piece by piece.
20 feet container contains dimension	Width under 2300mm, length under 6000mm
40 feet container contains dimension	Width under 2300mm, length under 12000mm
By bulk vessel	Freight charge is low by bulk cargo, and large heavy sizes can not be loaded into containers can shipping by bulk cargo

4.Can I visit your company and factory?

100% sure. Our company and warehouse locate in Tianjin, where we can do great marketing and exporting.

If you want to visit us, please contact us to make an appointment.

5.How can I know my order has been done?

We will inspect and test all the goods before shipping.

We can send you pictures of the order; and also you can come or send someone to do the inspection.
