180hp 210hp 4*2 road sweeper truck
Product Features
(1) The feature of this product:: cleaning, watering in one, and the operation is simple
(2) Sweep width: 3000 mm, cleaning capacity: 40000-60000m2 / h, cleaning speed: 3-20km/h , Cleaning
Efficiency: 90%; maximum inhalation size: 120mm; nozzle minimum ground clearance: 200mm

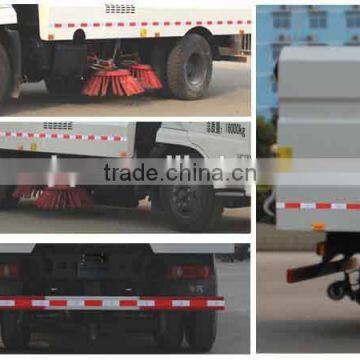

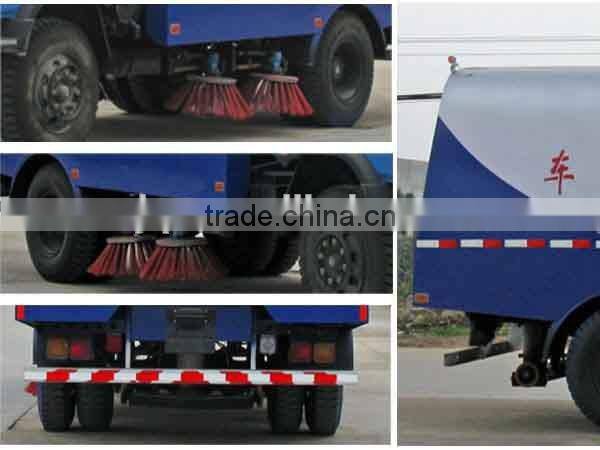

(3) Install four rotating brushes, when the vehicle forward the rubbish and sand will be brought by rotating
brushes to the in the middle of the vehicle, with the use of the vacuum suction head ,the rubbish and sand pumping into the waste collection tank in the box
(4) Installed a rubbish bin (containing water tank), install an engine as a power source, equipped with twin hydraulic pumps, hydraulic control systems, hydraulic actuator, respectively, to make the driven fans, sweeping
brushes, suction cups, pumps, bins and so on to work
(5) Using completely closed cab to avoid the weather and noise interference It takes the humanization design
in orderr to provide a safe and comfortable operating environment to user
(6) This series of Road sweeper are used to sweep the street and clean the environmental sanitation, they
can also be used for the cleaning works after snow. With a capacious dustbin can avoid generating the
blowing dust for the second time.
(7) Equipped with four sweep brush; Equipped with stainless steel 6 m3 rubbish tank ,4 m3 clean water tank;
max cleaning width 3000mm;max tipping angle 45 degrees; max dumping height 500mm
Technical Parameters
Product No |
ZKAMX4KR03B |
Batch |
264 |
Product ID |
P0111811 |
Date |
20140917 |
The totalmass |
12490 |
Curb Weight |
8495 |
Rated the quality of |
3800 |
Chassis Model |
EQ1128GLJ |
Approach / departure angle |
30/16 |
Front overhang / rear overhang |
1250/1960 |
Dimensions |
7160X2480X3000 |
Compartment dimension |
XX |
The total mass of trailer |
|
Axle load |
4990/7500 |
Number of axes |
2 |
Maximum speed |
90 |
Tire Specifications |
9.00-20 16PR,9.00R20 16PR,10.00-20 14PR,10.00R20 14PR |
Number oftires |
6 |
Front track |
1810,1900,1750 |
Rear track |
1800,1750,1860 |
Wheelbase |
3650,3800,3950,4100,4500 |
Number of spring |
9/11+8,8/10+8,8/11+8,9/10+8 |
Emission standards |
EURO4 |
Type of fuel |
Diesel |
Engine Model |
Engine Manufacturer |
Engine displacement |
Engine power |
YC6J180-42 |
Guangxi Yuchai machinery Co. Ltd |
6500 |
132 |
