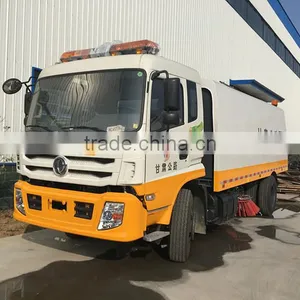

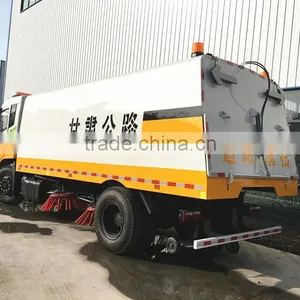

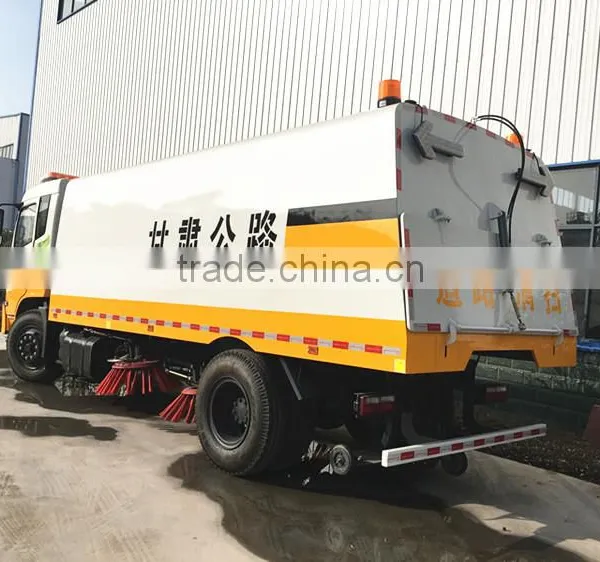

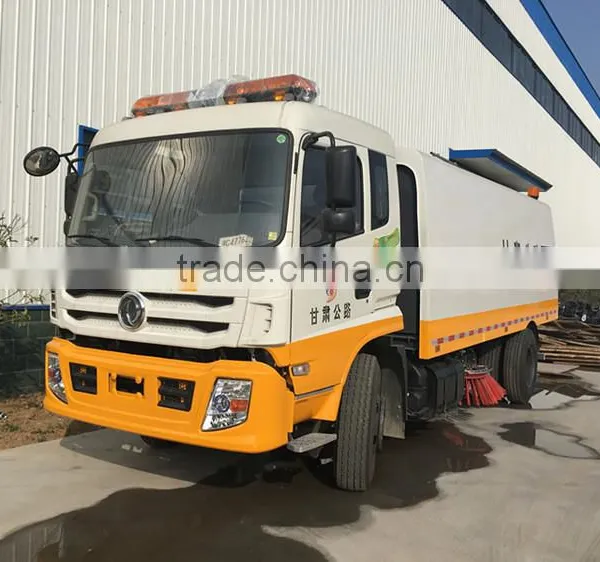

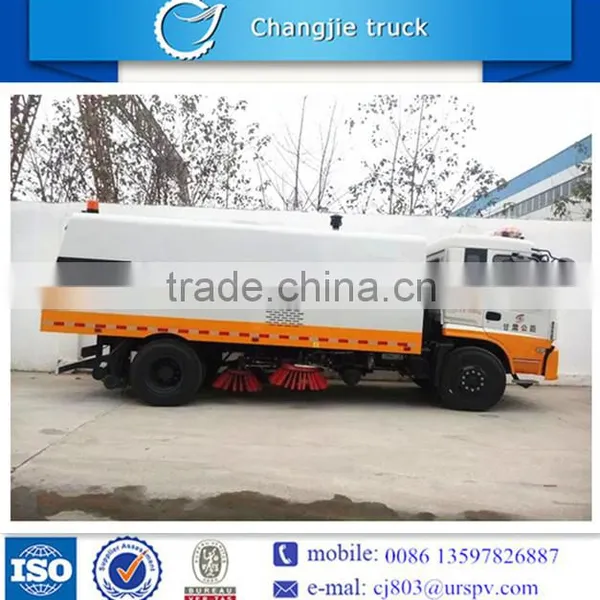

| High quality Dongfeng 4x2 street sweeper truck |
Our company is a professional ROAD SWEEPER TRUCK manufacturer for 10 years
Our trucks with 3C,ISO,SGS,BV approved
Chassis supply:DONGFENG,JAC,JMC,FOTON
Any questions,contact me without hesitation on 135-9782-6887
Product features
1.Stainless steel garbage tank,water tank
2.Maintenance free blower with high quality,and maintenance free automatic clutch
3.Hydraulic oil pump imported from Italy, long service life, stable and reliable, low failure rate
4.Hydraulic valve imported form Germany
5.The hydraulic lines using the German standard technical seal structure, good shock resistant
performance, high sealing reliability,can realize no leakage seal effect
6.The key electronic components using French Schneider technique
| Product Name | Dongfeng street sweeper truck | |
| Product Model | Dongfeng | |
| Main parameters | Overall size(L*W*H) | 8090,7890*2470*3050mm |
| Gross weight | 16000kgs | |
| Rated capacity | 6055kgs | |
| Curb weight | 9750kgs | |
| Approaching/Departure Angle | 20/12(°) | |
| Front/Rear suspension | 1430/1960mm | |
| Axle loading | 6000/10000 | |
| Max.speed | 90km/h | |
| Chassis | Chassis Brand | Dongfeng |
| Chassis model | DFL1160BX5 | |
| Drive type | 4*2, LHD/RHD | |
| Fuel Type | Diesel | |
| Tire Specification |
10.00-20,10.00R20,9.00-20 9.00R20,275/80R22.5 16PR |
|
| Tire No. | 6 | |
| Wheelbase | 5000,4700,4500mm | |
| Alex No. | 2 | |
| Leaf Spring No. | 8/10+8,7/9+6 | |
| Front trend | 1880mm | |
| Rear trend | 1860,1800mm | |
| Passengers in cab | 3 | |
| Engine | Manufacturer | Dongfeng Engine |
| Model | ISDe210 40 | |
| Horse Power | 210HP | |
| Displacement/Power | 6700ml/155kw | |
| Emission standard | Euro 4 | |
| Item | Parameters | |
| Auxiliary engine model | Cummins | |
| Auxiliary engine power | 140hp | |
| Maximum speed | ≥95km/h | |
| Cleaning width | ≥2.8-3 m | |
| Water tank volume | 3.5m3 | |
| Garbage box volume | 7m3 | |
| Operating speed | 3~15km/h | |
| Maximum operation ability | 5000m2/h | |
| Maximum suction size | 100mm | |
| Cleaning efficiency | ≥99% | |
1. After-sale service:
- One year warranty
- Fast respond to any problems.
- Provision with relevant technical support.
- Available spare parts after ordering.
2. Supply service:
- OEM ability. We can produce according to your requirements,the size, color, materials, logo etc all optional
for you.
- Start manufacturing as soon a your order confirmed.
- Inventory products can be delivered immediately.
3. Contact
- We offer 24-hour hot line service: 0086-13597826887.
- Please feel free to contact me if you have any questions, contact information is showed afterwards
