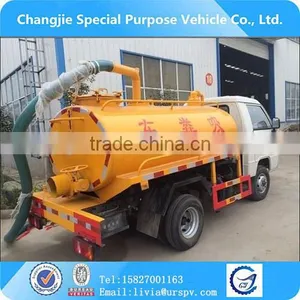

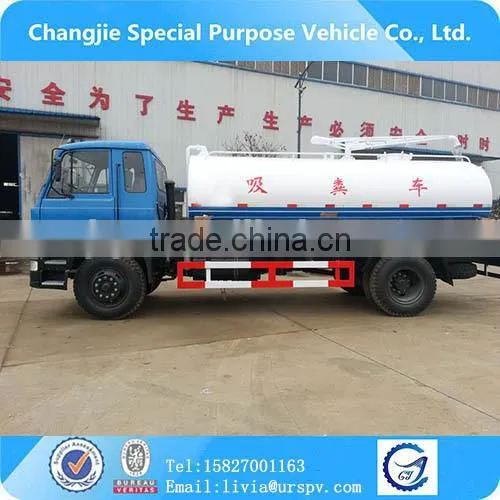

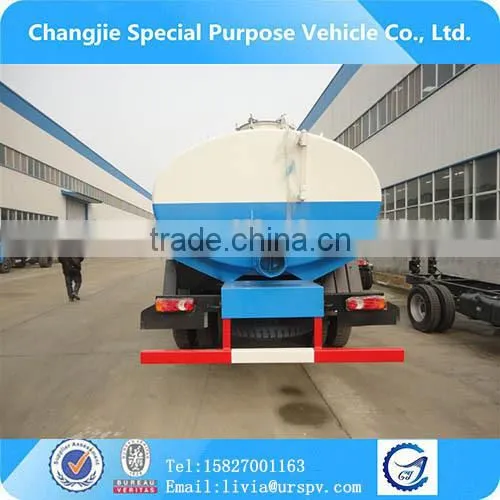

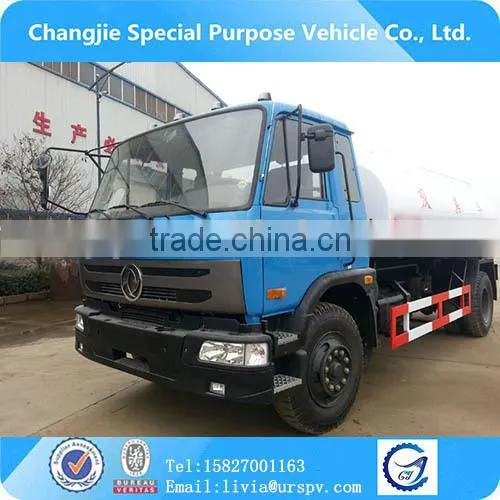

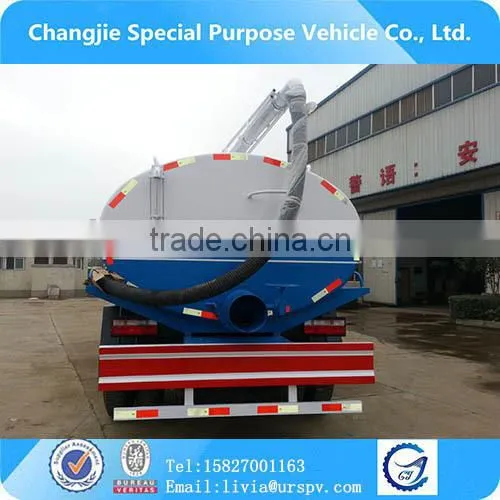

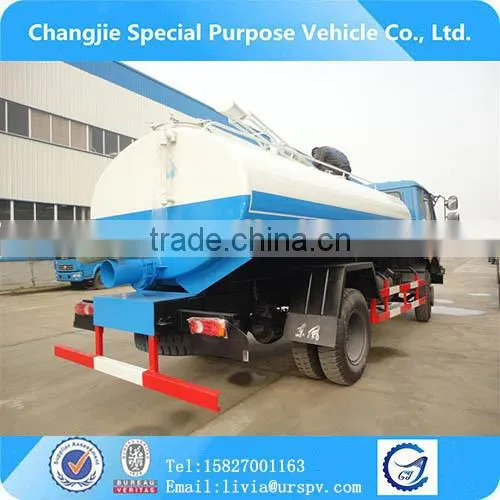

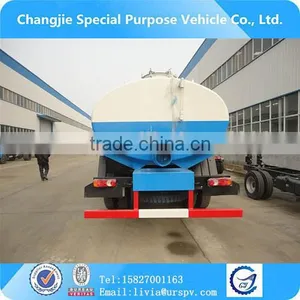

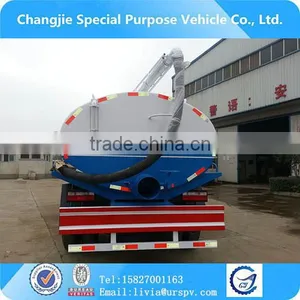

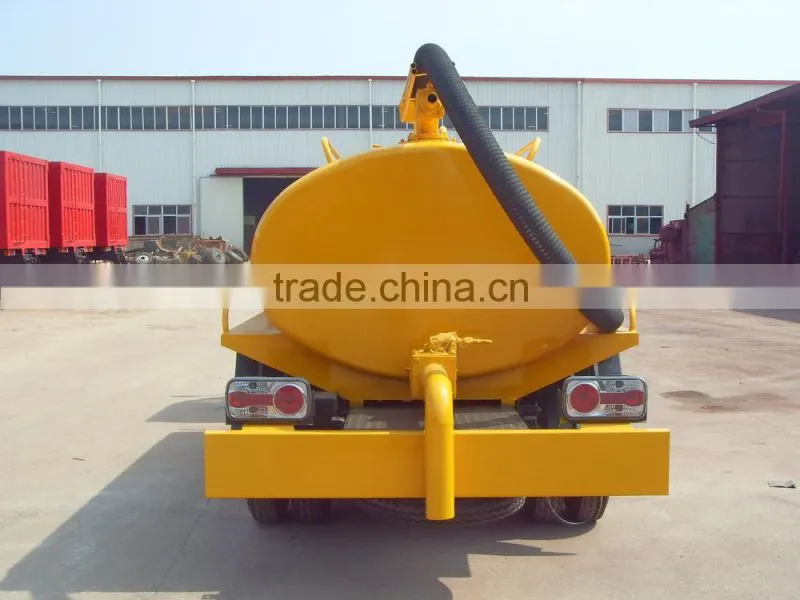

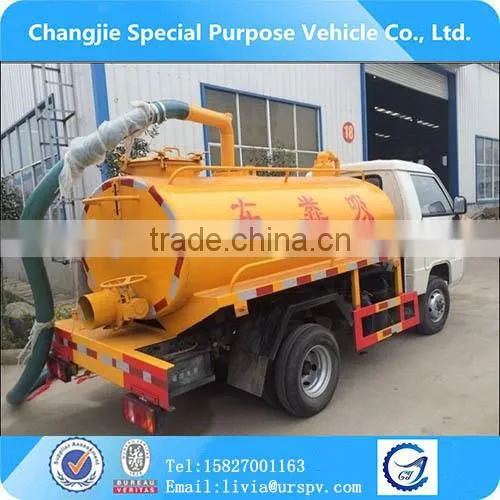

Help CenterNew Condition Rotating Degree Multiple Functional Optional Fecal Suction Truck
Related Products
-
Environmental Protection Residential 3c Certificate Fecal Suction Truck DongfengUS$ 29,100 - 29,200MOQ: 1 Set -
Hot Selling Best Price Small 4*2 Durable Quality Sewage Suction Tanker TruckUS$ 20,000 - 25,000MOQ: 1 Set
-
New Condition Fecal Suction Truck With High QualityUS$ 29,100 - 29,200MOQ: 1 Set
-
Hot Selling High Quality Dongfeng Foton HOWO Sewage Suction TruckUS$ 20,000 - 25,000MOQ: 1 Set
-
Best Selling Euro4 Dongfeng Foton HOWO Manual Vacuum Suction TruckUS$ 20,000 - 25,000MOQ: 1 Set
1.it is a new environmental truck for collecting fecal
2.it can suck in and discharge the fecal by itself
3.it adopts the advanced rotating degree suction truck vacuum pump
| Product Attribution | |
The totalmass |
15995 |
Rated the quality of |
8575 |
|
Approach / departure angle |
34/10 |
| Chassis Model | EQ1164GJAC |
| Front overhang / rear overhang | 1250/2550 |
| Dimensions | 8500X2480X3200 |
| Axle load | 5995/10000 |
| Number of axes | 2 |
| Maximum speed | 85 |
| Tire Specifications | 10.00-20 16PR,10.00R20 16PR |
| Front track | 1910,1940 |
| Rear track | 1800,1860 |
| Wheelbase | 4700,5100,5000 |
| Number of spring | 10/11+8 |
| Delivery time | Within 15-30 working days after the order confirmed |
|
Emission standards |
GB3847-2005,GB17691-2005,Euro4 |
| Packing | Nude packing on RORO vessel or Bulk vessel |
product application
- city planning
- septic tank
- residential areas
- agriculture
- chemical industry
- medium and small cities
troubles shooting
| Elimination method | Cause analysis | Elimination method |
| No absorption into manure or dung absorption time is too long | four-way valve switch in place | the handle to erect state |
| pipeline jam, hose inside rubber fall off | unclog, replace the hose | unclog, replace the hose |
| After completion of suction vacuum pump stop running, dung fluid backflow | at the end of the suction line pull out in time | Pull out row suction hose in time, from the waste liquid |
| Vacuum pump abnormal noise, temperature rise too high | the pump cavity into the impurities or debris | overhaul, clean vacuum pumps and replacement of wearing parts |
| The vacuum meter reading is low or no value | vacuum pump speed is too low | the step on the gas |
| Back to the oil tank | connecting bolts is loose | tighten the bolt |
Main structure
| power take off | transmission shaft |
| vacuum pump | moisture separator |
| gas-oil separator | pressure tank |
| hydraulic system | multiple directional control valve |
| fecal discharging valve | pipe network system |
| vacuum pressure gauge | fecal window |
| hand washing device | operation system |
product advantage
1.Time for full suction less than 5min
2.The fecal suction pipe can rotate 360 degree
3.Equipped with hand washing device
4. Automatic alarm and close the cover when suction full
(Overfill system with music horn is equipped to prevent the vacuum pump damage from fecal into vacuum pump when the tank is full)
5.optional high-pressure cleaning function of fecal truck
certificate
Payment Terms: T/T, L/C ,Western Union, Escrow
Delivery Time: Within 15-30 working days after the order confirmed
packing: Nude packing on RORO vessel or Bulk vessel
Shipping: By sea
1.Specialization
OEM&ODM is available,we can produce according to your demand, the material,the size, the color and the logo is optional for you
2.Chassis supply
we have a very good long term cooperation relationship with chassis manufacturer,such as
- DONGFENG
- FOTON
- SINOTRUCK
- SHACMAN
- IVECO
- FAW
- HINO
- CAMC
3.Production supply capacity
Company Scale: More than 3000 employees with 1000 acres factory, total asset 2 billion.
We manufacture the truck as soon as possible once your order confirmed. And for the stock, we can delivery it immediately.
4.Our warrnty
- one year quality assurance for three key parts: axles, engine, transmission.
- Other spare part could be supplied by OEM at cost prices.
1.we are a professional manufacturer of special automobiles for landscaping, petrochemical, and environment cleanness.
2.Our company has independent export authority, and has a lot of overseas clients.
3.Our leading products (more than 8 series and 100 types of trucks )
such as water trucks, tank trucks, garbage trucks, fecal suction trucks, sewage suction trucks, dump trucks, van trucks, semi-trailers, wrecker trucks, trucks with cranes, high-altitude operation trucks, training trucks, bulk cement trucks, chemical liquid trucks, fire engines, truck fittings, cement mixers and tractors.
4. we deal with wholesale chassis.
5.Our company has solid technology, flawless inspection, advanced equipment, reliable quality and flexible modes of operation.
6. we have obtained ISO9001 and CCC certificates (China Compulsory Certification).
7.We will endeavor to treat customers honestly, managing flexibly, guaranteeing high quality but low price, and keeping high efficiency.
8.We promise that all the products that are adapted and sold by us can get one-year services and maintenance for the life.
1.What is your MOQ? How many sizes can I have?
Our MOQ is 500 pcs per day, we will try to do on request base on your condition.
2.What is the delivery time?
The production time is around 15 to 30 days after payment confirmed. But we can adjust available time for you base on your situation
3.What is the location of your company?
Our company is located in the wuhan, Hubei, China. Welcome to our company at anytime
4.Can you give me a discount?
We mainly do wholesale service, our policy is that bigger quantity, cheaper price, so we will quote you the best price based on your order quantity
5.what's the material of the tank truck?
we use Carbon steel,stainless steel,plastic lined steel
6.what's the discharge way of your fecal suction truck?
we adopt self flow discharge and compression discharge
