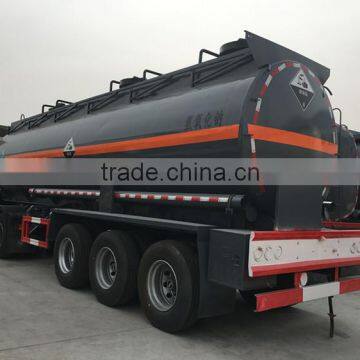

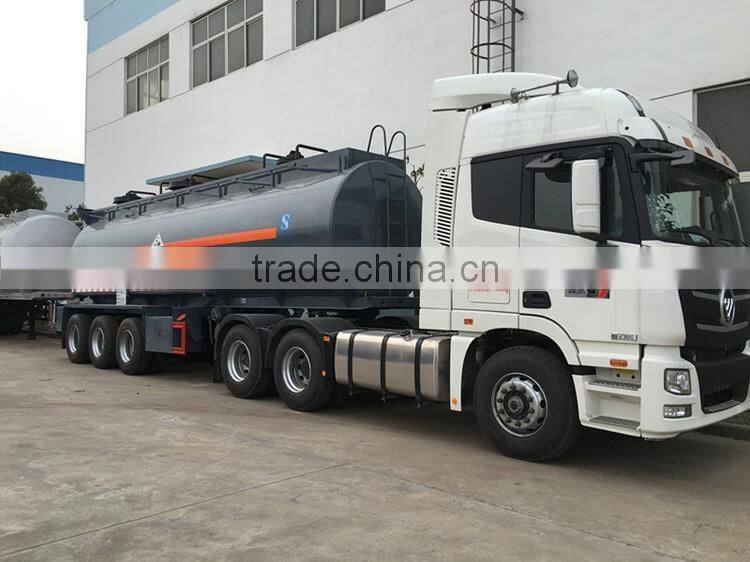

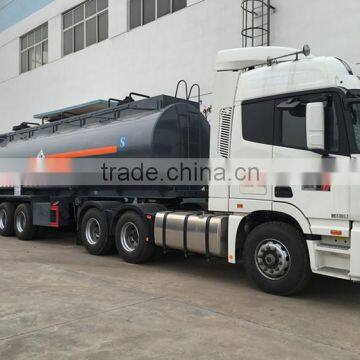

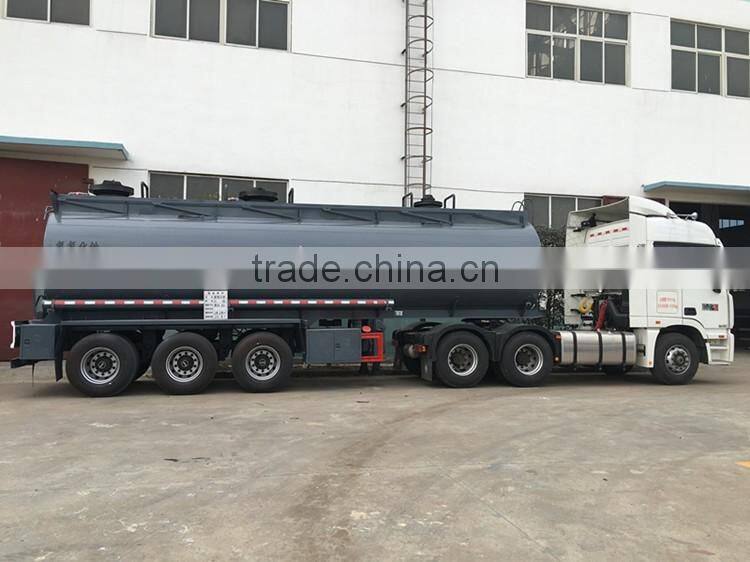

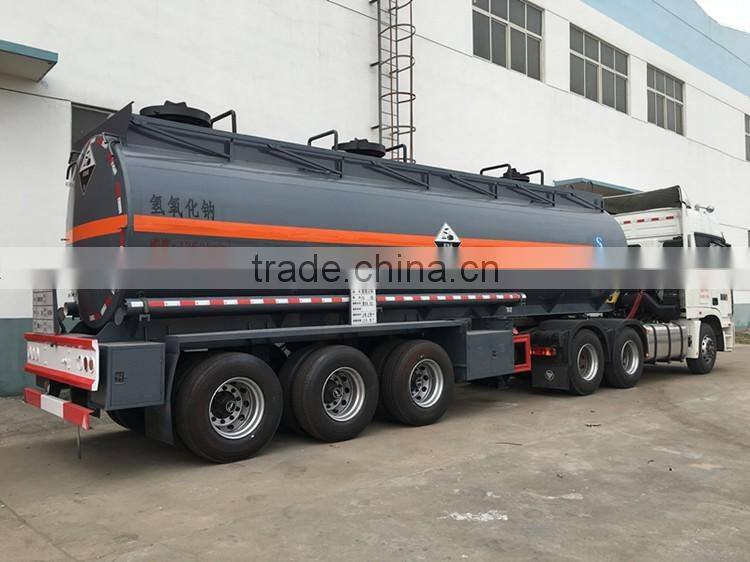

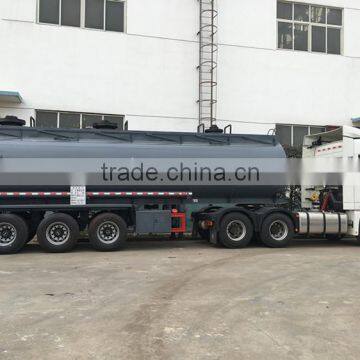

23cbm tri-axle chemical liquid transportation semi trailer |
Our Advantages:
Quality 100% guaranteed.ALL our trucks have got ISO 9001-2008, CCC and B&V certificates.
Many trucks have passed SGS inspection. Chassis and spare parts always come from the original
manufacturers with their products codes and anti-counterfeiting labels.All our suppliers have passed
the B&V,SGS and CONTECNA qualification.
Experienced.We have 11years truck wholesaler experience. Our performance has won national has
won national affirmation.
Price reasonable.Our company has extensive resources so we are sure to offer competitive price
for you.
Reliable supplyer. We sell trucks throughout the country and export to Vietnam, Korea, Laos,
myanmar,Malaysia,Congo,Ethiopia,Sudan,el Salvador,Iraq,New Zealand,Russia,Mongolia,kazakhstan,
Sudan etc more than 50 countries and regions all over the world.
Product features:
1. Media for carrying:widely used in loading and unloading of acid, alkali, salt and othercorrosive
and dangerous media.Including hydrochloric acid,sulphuric acid,acetic acid,hydrogen peroxide,ortho-phosphoric acid,ammonia,sodium hydrate,potassium hydroxide,sodium hypochlorite,formaldehyde,
ethanol,dimethylbenzene,isopropyl alcohol,dimethylamine,naphtha,and others.
2. Tank material:carbon steel,stainless steel,steel lined with plastic,full plastic,aluminumand aluminum
alloy,etc.
3. Tank shape:round square,oval,round
4. Pump:high quality special chemical pump
5. Compartment:maybe divided into different spaces for carrying different chemical products and liquid food.
6. the internal is provided with a plurality of plastic swash bulkhead,through a comprehensive high-pressure airtight test,the tank body of high strength, stable gravity center,stable safe vehicle transportation.
7. High efficiency:maximum loading capacity and lightweight technology
| Basic information: | ||
| Product Name | chemical liquid transportation semi trailer | |
| Product Model | 9407GRY | |
| Actual capacity | 23m3 | |
| Gross weight | 40000kgs | |
| Kerb weight | 9500kgs | |
| Rated load | 30500kgs | |
| Overall size | 9500,9800*2500*3600mm | |
| Tank size | 9100*2350*1550mm | |
| Number of axles | 3 | |
| Number of tyres | 12 | |
| Wheelbase | 4600+1320+1320mm | |
| Front trend | / | |
| Rear trend | 1840/1840/1840 | |
| Approaching/departure angle | -/18(°) | |
| Front/Rear suspension | -/1300 | |
| Number of leaf spring | -/8/8/8,-/4/4/4 | |
| Tyre specification | 11.00-20 12PR,11.00R20 12PR,12R22.5 12PR | |
| Axle loading | -/24000 | |

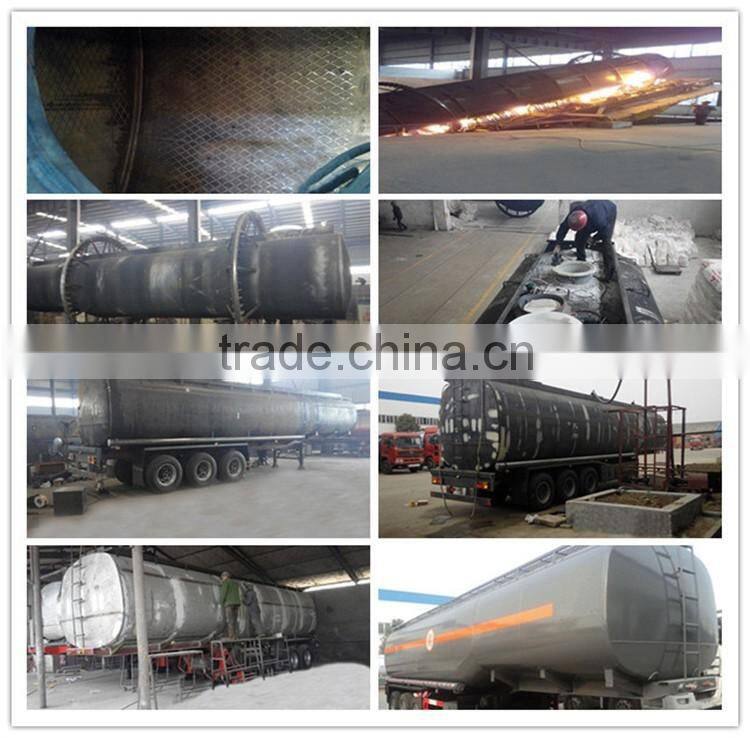

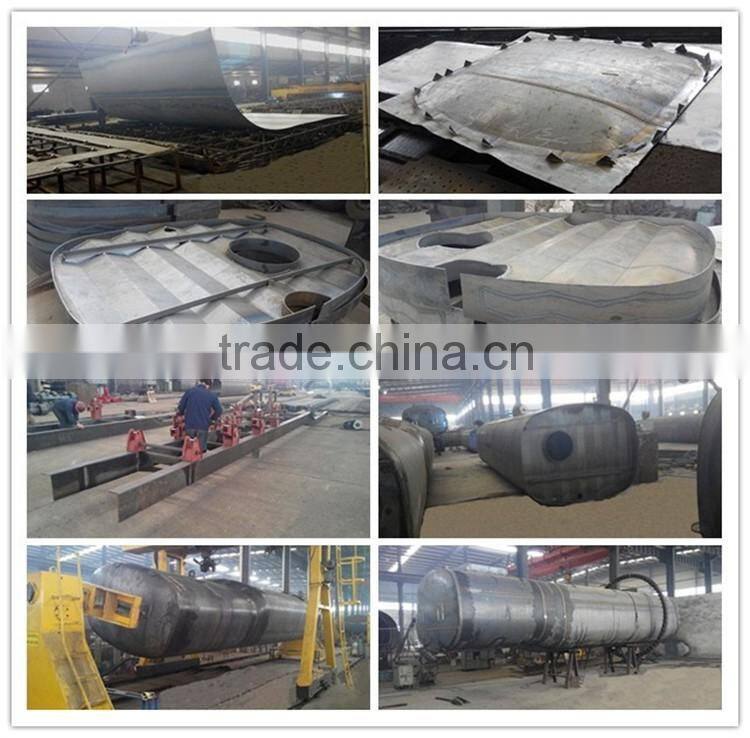

Production workshop:
1. After-sale service:
- One year warranty
- Fast respond to any problems.
- Provision with relevant technical support.
- Available spare parts after ordering.
2. Supply service:
- OEM ability. We can produce according to your requirements,the size, color, materials, logo etc all optional
for you.
- Start manufacturing as soon a your order confirmed.
- Inventory products can be delivered immediately.
3. Contact
- We offer 24-hour hot line service: 0086-13597826887.
- Please feel free to contact me if you have any questions, contact information is showed afterwards
