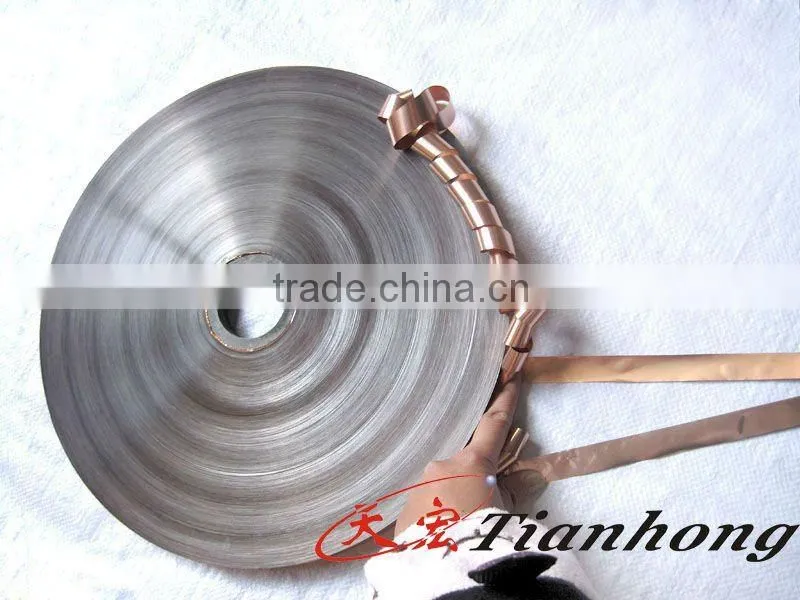

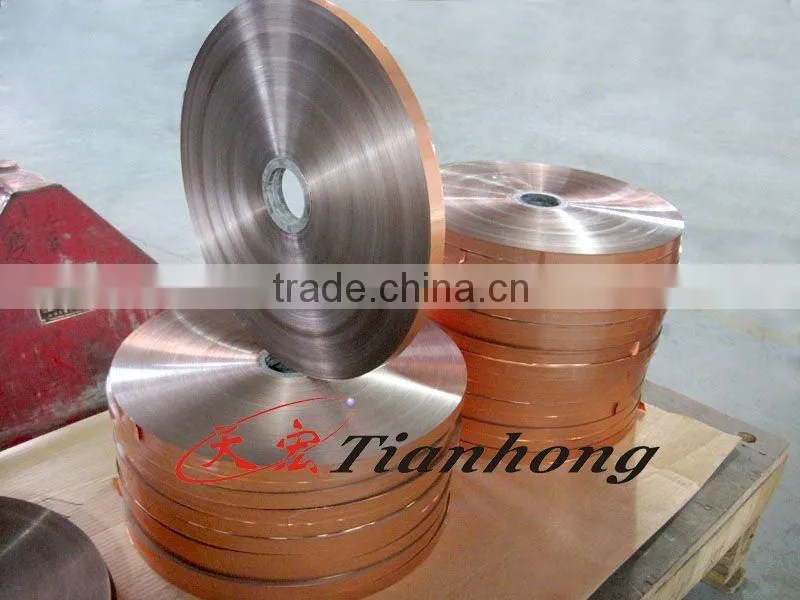

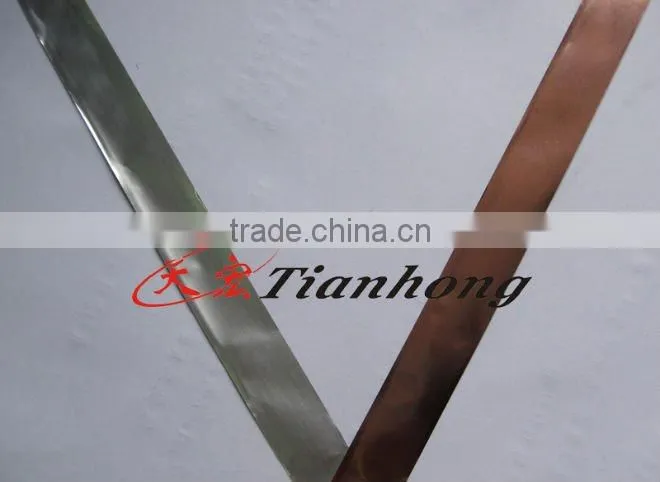

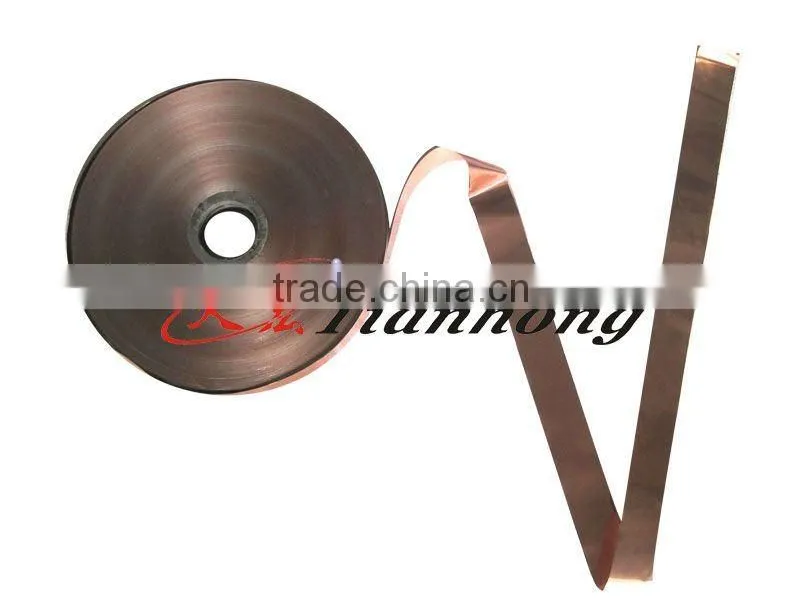

Help CenterPlastic Coated Aluminum Tape Copper Color
Related Products
-
Poly 0.05+ALU 0.1+Poly 0.05mm,Aluminium Poly Laminate TapeUS$ 2.5 - 3.8MOQ: 1 Ton -
Aluminium Poly Tape(polyethylene+aluminium+polyethylene)US$ 2,500 - 3,800MOQ: 1 Ton
-
Shielding Copper FoilUS$ 13 - 18MOQ: 0 Ton
-
PE Coated Aluminum TapeUS$ 3.4 - 4.5MOQ: 1 Ton
-
Coaxial Cable Material Aluminium PET Foil(Blue Color)US$ 3.3 - 4.5MOQ: 1 Ton
Specifications
Widely used in shielding for cables;Widely used in wires and cables.
1. Application
a.Aluminum polyester film laminate suitable for use as a radio frequency interference (RFI) shielding material.
b.Widely used in wires and cables like CATV cables, LAN cables, shielding layer of many other kinds cables, and ventilation ducts, etc.
2. Feature
Good insulativity and shielding effectiveness to reduce attenuation, complying with RoHS standard.
3. Dimensions
a.Uses soft aluminum foil and polyester film,then compound them,after their ripening,cut them into rolls.
b.Accept orders of foils with different thickness, length and width.
c..Have two series:AL+PET and AL+PET+AL
Name |
Plastic coated aluminum tape(AL+PET) |
Thickness |
20u-150u |
Width |
5mm-1000mm |
ID |
38mm or 53mm or 76mm |
OD |
250mm-650mm |
Color |
Silver,Blue,Golden |
Name |
Plastic coated aluminum tape(AL+PET+AL) |
Thickness |
30u-50u |
Width |
5mm-1000mm |
ID |
38mm or 53mm or 76mm |
OD |
250mm-650mm |
Color |
Silver,Blue,Golden |
4.Packaging
a.Inner-Plastic bag;Outside-carton;Then loaded to a pallet;
b.Wooden box packaging
