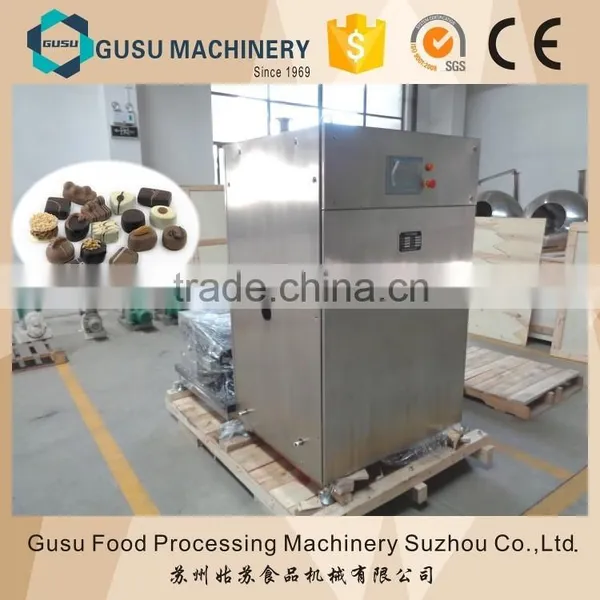

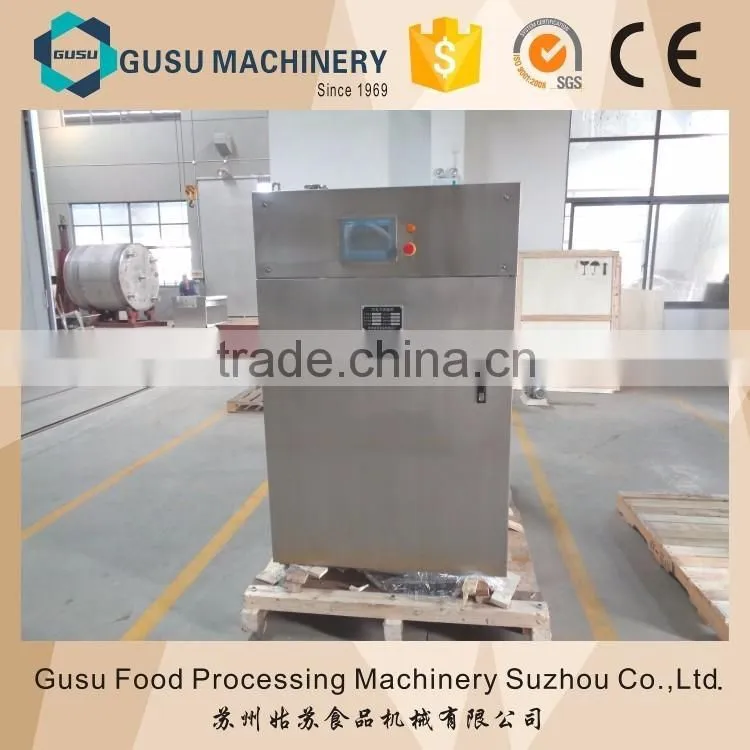

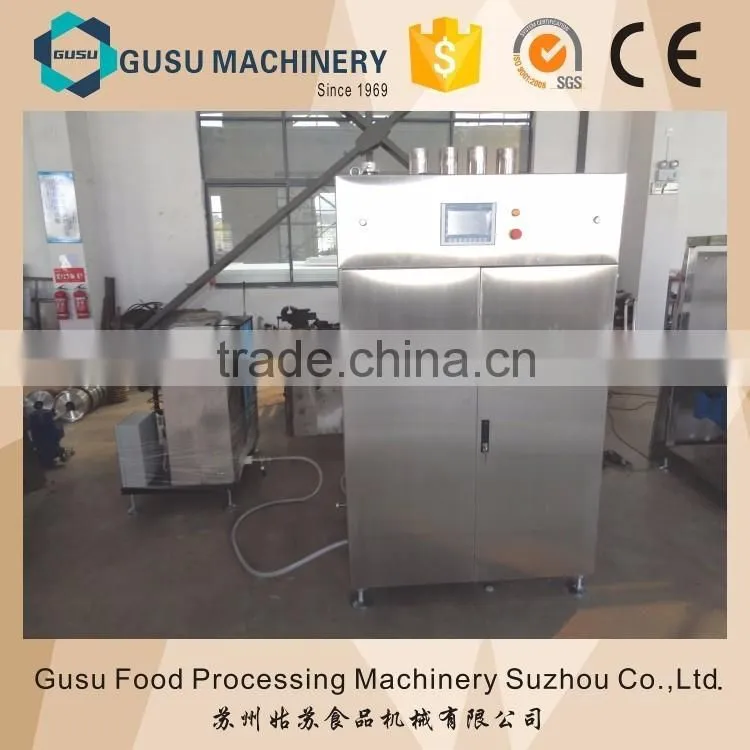

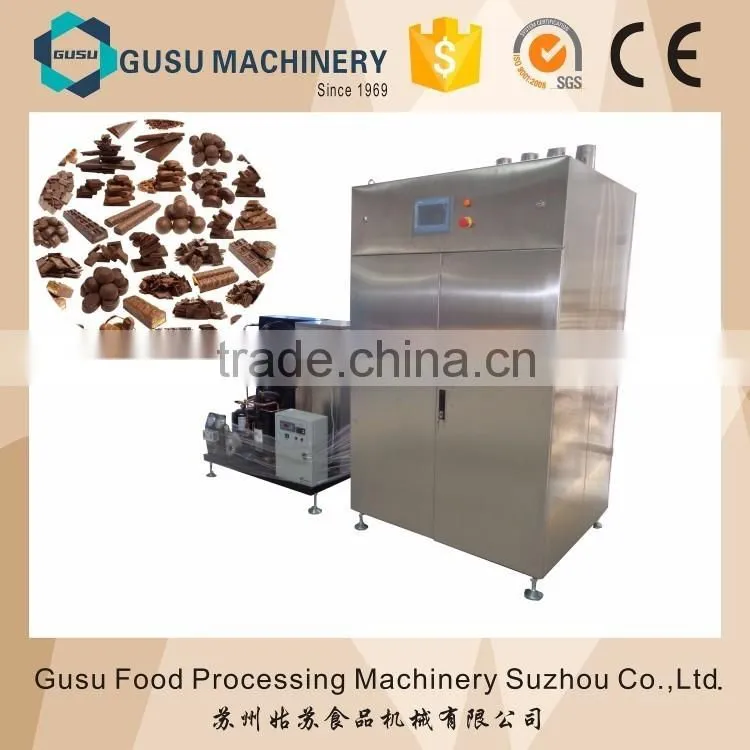

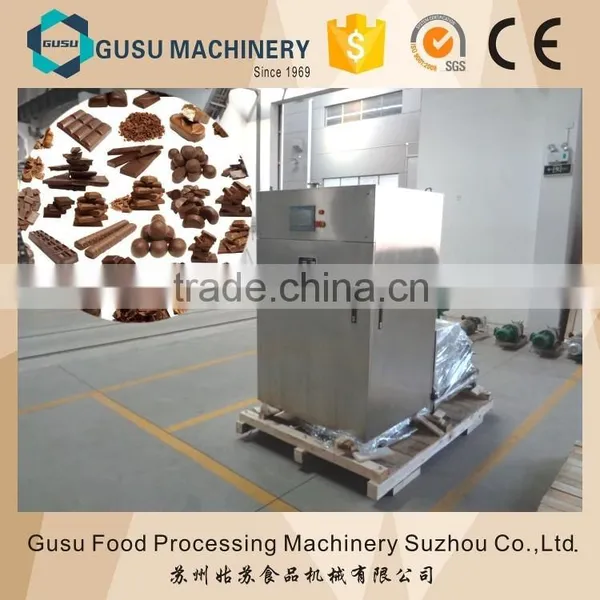

Chocolate continuous temperer
Gusu QT Series Chocolate Tempering Machines are the perfect preliminary step for molding and enrobing (coating) processes. Specially designed to provide the pure cocoa butter in the chocolate with the appropriate crystal structure, it facilitates subsequent processing and ensures structural stability after the solidification and packaging stages.
chocolate machine Snack Machines Name Chocolate Tempering Machine

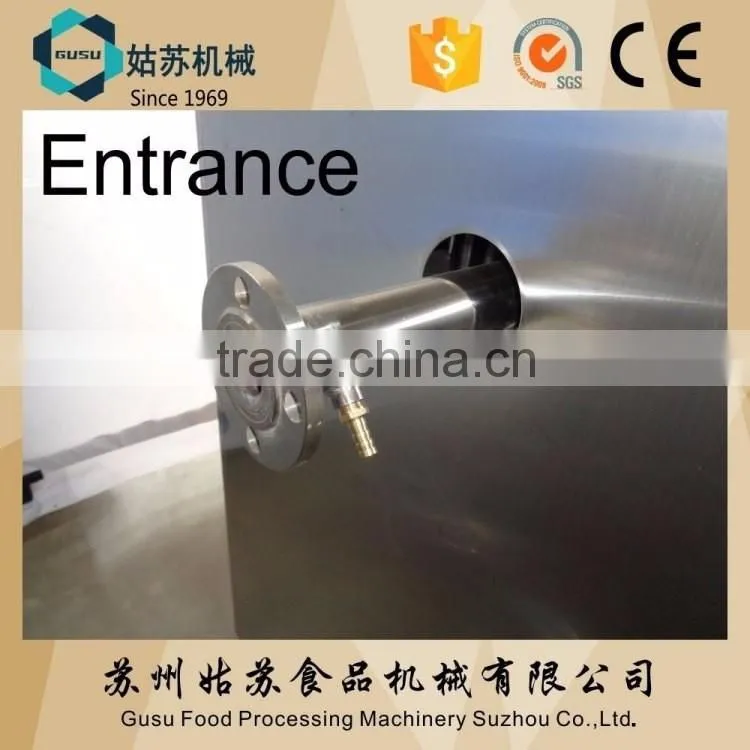

The feeding pump set up in front of the chocolate tempering machine feeds the chocolate paste into the thermostat unit, which is equipped with revolving plates mounted on a main shaft driven by main shaft motor. These plates are housed in independent stainless steel double-jacketed compartments, through which circulates chilled water that must be supplied in a controlled, constant stream. A very thin layer of chocolate is provided to circulate between the plates and the compartment. Since the Chocolate Tempering Machine is divided into different zones and the temperature of each zone is controlled exhaustively, the cold is transferred quickly to chocolate, causing Beta crystals to form and the chocolate to become tempered. Same product circulation provides chocolate to molding or enrobing unit, while unused chocolate returns back to a previous storage tank.
Technical Parameters
Model |
Capacity(kg/h) |
Total Power(KW) |
N.W.(kg) |
Overall Size(mm) |
QT100 |
100 |
5 |
450 |
900*800*1600 |
QT250 |
250 |
8.3 |
580 |
1500*850*1550 |
QT500 |
500 |
10 |
1300 |
1175*965*2055 |
chocolate tempering machine Snack Machines Model QT25

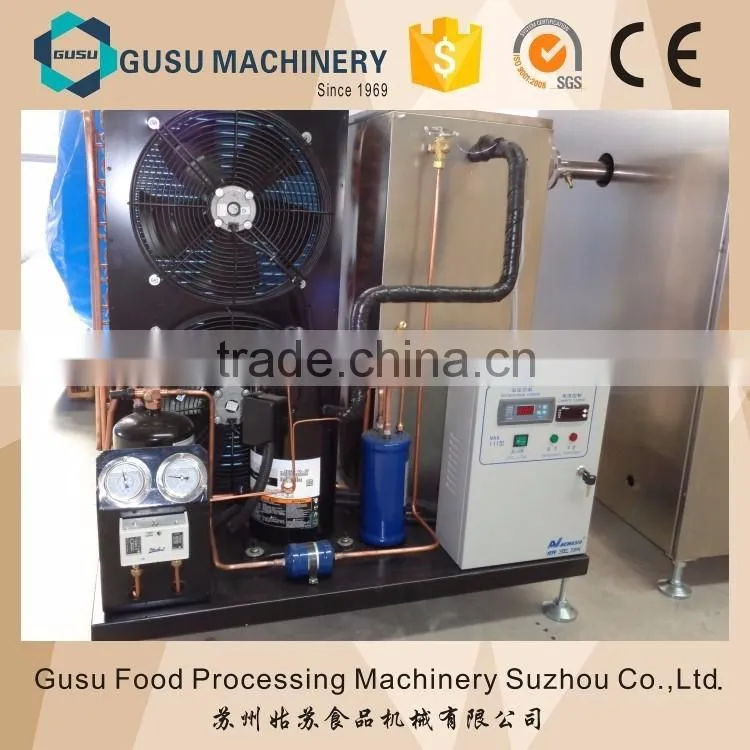

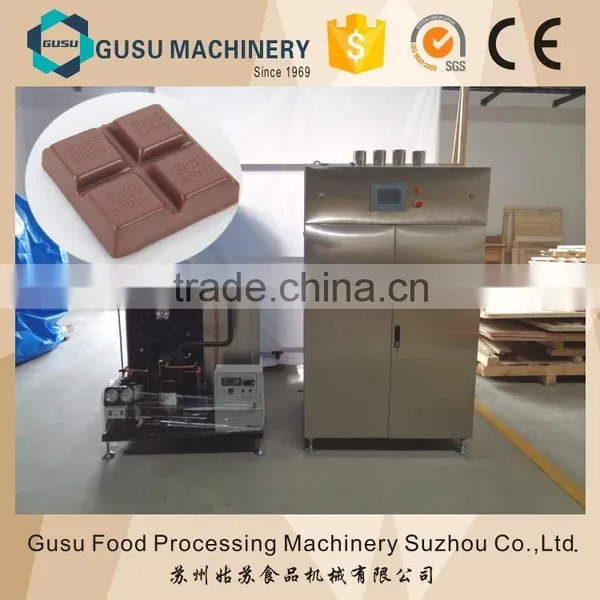

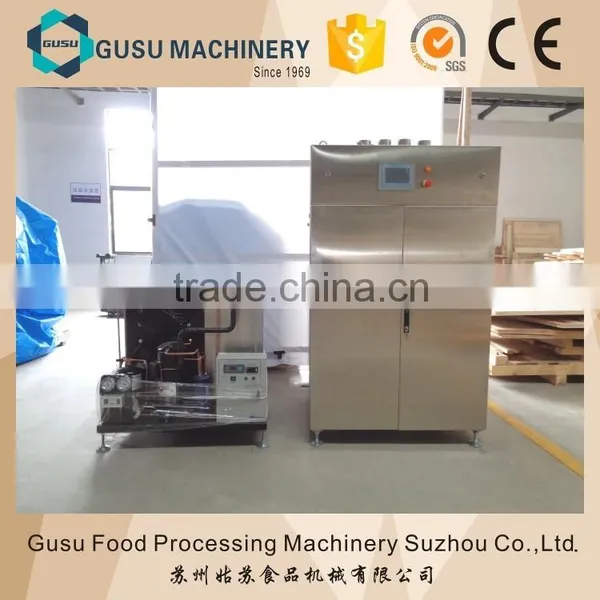

Cold Water Refrigerator
gusu chocolate tempering machine Snack Machines Capacity 250kg/h
chocolate machine Snack Machines Function Adjust chocolate temperature

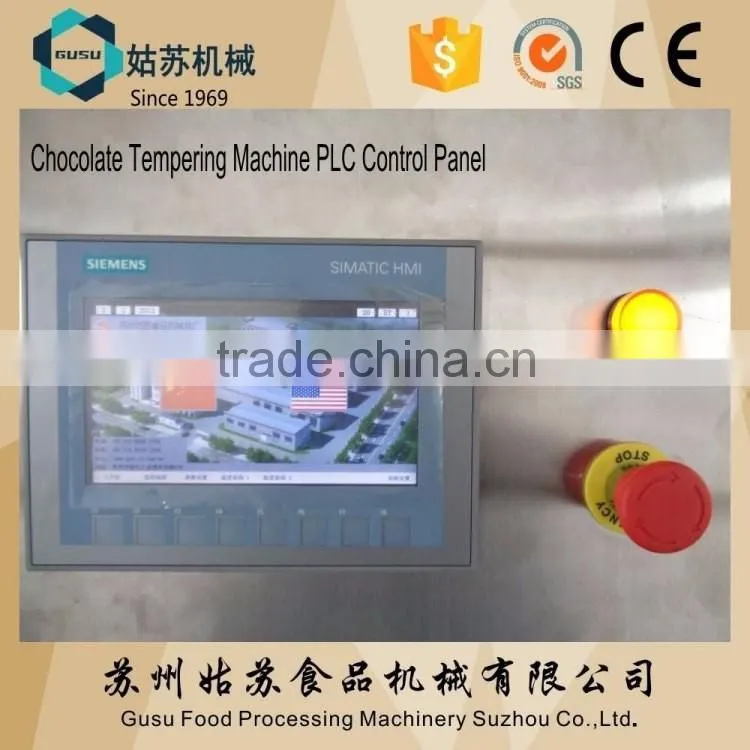

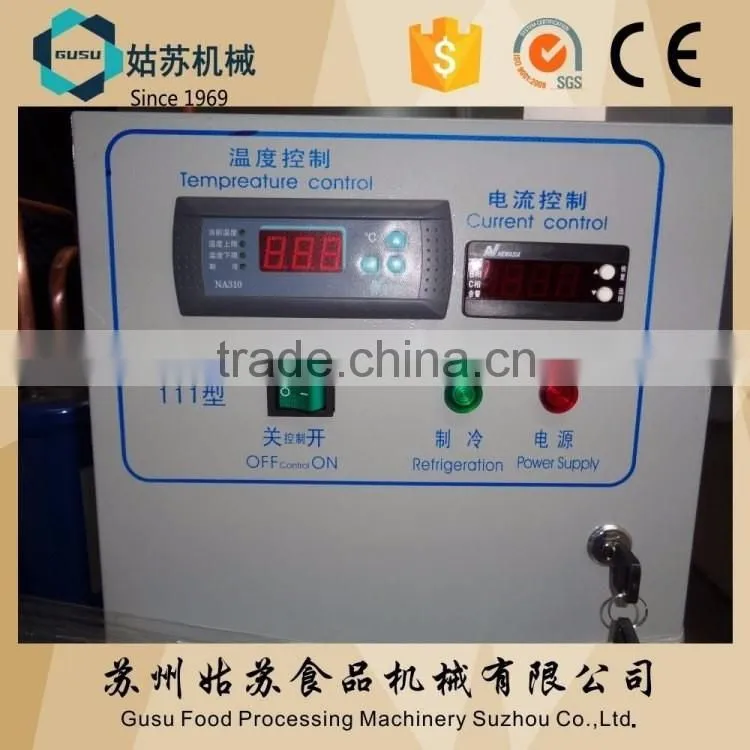

Cold Water Refrigerator Electronic Cabinet
chocolate tempering machine Snack Machines Material Stainless Steel
gusu chocolate tempering machine Snack Machines Lead Time 5-15 working day
chocolate machine Snack Machines Warranty 1 Year
We Pack our Machines with Standard export wooden case and ship from Shanghai/Ningbo/Guangzhou to destination port.
chocolate tempering machine Snack Machines Design GUSU MACHINERY
1. How about your quality?
(1)We have been specialized in chocolate machines for more than 46 years (1969-2015).
(2).We have strict quality inspectiondepartment to inspect 12 hours’ working status of all the machines beforedelivery so as to make sure the quality.
2.How about your after-sale service and warranty period?
(1)We provide one-stop installation (all fees including visa , Transportation, accomdation will be afforded by buyer , an USD 50/day installation fee should also be paid .
(2) Warranty period: 12 months after delivery.
(3) We will provide the replacement parts for free due to quality problems underproper operation within warranty period.
(4) Afterwarranty period, we’ll charge the replacement parts at cost price.
(5) We provide lifetime technical support for all the machines.
3. Where are your main markets?
After 46 years’ development, our chocolate machines have been sold to over 60 countries worldwide , such as U.S.A, Turkey, Russia,Ukraine, Uzbekistan, India, Spain, Peru, Egypt, Poland, Indonesia,Thailand, Bangladesh, Estonia, Armenia, Belgium, Aman, Saudiarabia, Croatia, Yugoslavia, Japan, Britain, Brazil etc.
Gusu Food Processing Machinery Suzhou Co.,Ltd., formerly known as Gusu General Works of Food Processing Machinery Suzhou, founded in 1969, is also the first enterprise making complete sets of chocolate machinery in China and honored in this industry as “the Mother of Chocolate in China”.
gusu chocolate tempering machine Snack Machines OEM Accepted
Over 45 years, Gusu insists on a corporate philosophy of people-oriented, be loyal to customers and credit management, we aim at the first class equipments and technologies worldwide in the industry, we connected with the food industry, scientific and technological enterprises and universities to make continuous improvements, innovations and development of the products in order to provide better service to customers. Products are sold all over China and more than 80 countries and regions.
Gusu expanded and moved to the new factory in 2014, “Suzhou Food Engineering Research Center” was founded in our new factory.
chocolate machine Snack Machines
The purpose of Gusu is daring to scale the heights and striving for industry pioneer, we will continuously work on scientific research and innovations, provide customers with better and better service. We warmly welcome customers worldwide to Gusu to conduct and consult.
Gusu Machinery has got ISO9001:2008 in 2014, more than 10 products got CE certificate till 2015
chocolate tempering machine Snack Machines
We Attend many Exhibitions every year home and abroad.
In 2015
AAHAR in India March
Bakery China 2015 in China May
FISPAL in Brazil June
GUL FOOD MANUFACTUING in Dubai October
gusu chocolate tempering machine Snack Machines
1 How to Order
1. Customer send us an inquiry.
2. Confirmmachine type, order quantity, price, lead time, payment term etc.
3.Our sales send the Proforma Invoice with company seal.
4. Customer make the payment for deposit and send us Bank receipt.
5. Inform the clients that we have got the payment,and will arrange the production according to yourrequest, inform the estimated time
6. Production products photos will send to you for approval.
7. Clients make payment for balance and Ship the goods .
8. Order is finished when you receive the goods and satisfy with them .
9. Feedback to us about Quality , Service, Market Feedback & Suggestion.And we can do better
2 About after-sell service
Usually machine guarantee time is about 1 year . Within guarantee time . Machine breaking caused bymachine itself design defect , we are responsible for it .we can provided free charge breaking part .If machine breaking caused by humane factor , user need take responsibility for it , we will providedtechnical support .
3 About goods shipping
We have long time working shipping forwarder. We can do our best to send machine to your port safe and quickly.
4 About our online Service
24 hours online to solve any problem .
Your email will be reply within 12 hours .
Your satisfy is our pursuit .sincerely hope our cooperation
Sincere thanks for scanning our products, and your satisfaction will be our greatest pleasure.
chocolate machine Snack Machines
What we also Provide

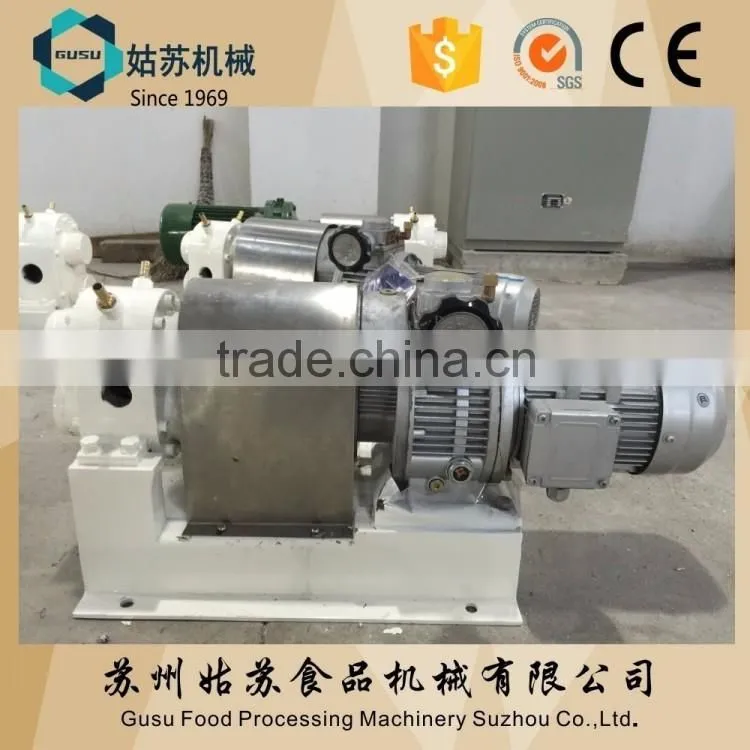

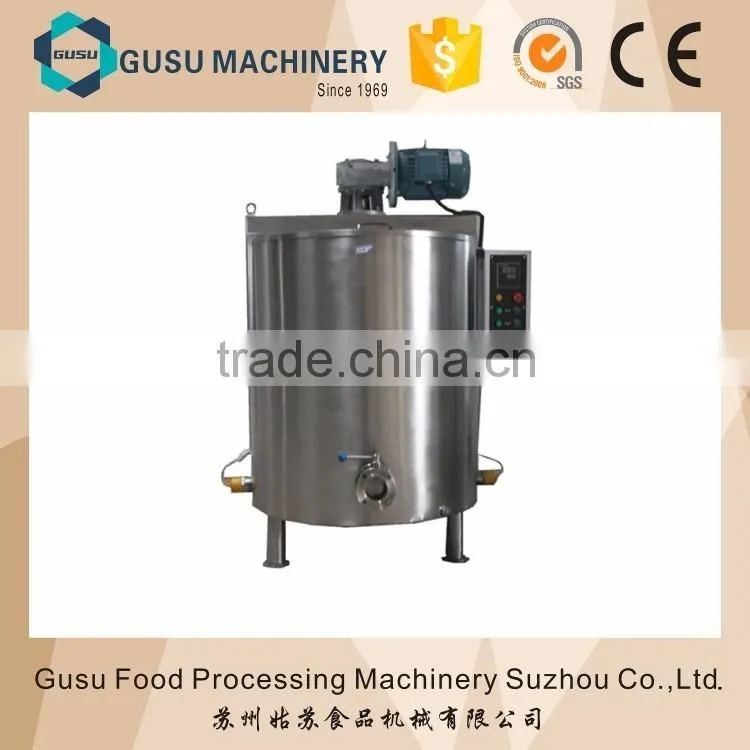

Chocolate Storage Tank Chocolate Delivery Pump
chocolate tempering machine Snack Machines
machine Snack Machines
