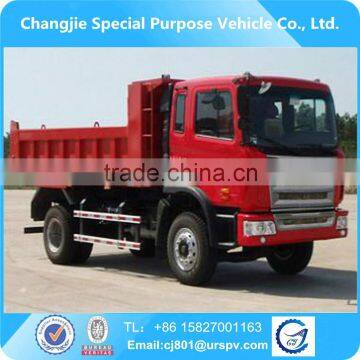

JAC 2 Axes Small Tipper Truck

Name: JAC 2 Axes Small Tipper Truck
Brand: OEM ODM
SKU: 123528145
Availability: InStock

US$ 10,000 - 60,000 MOQ: 1 Set

Key Specifications

Drive Wheel:

Other, 4x2, 4*2

Capacity (Load):

21 - 30t

Horsepower:

Other, 251 - 350hp, 180 - 350hp

Hubei Changjie Special Automobile Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ShangHai NingBo ShenZhen

Delivery Detail:

Delivery time depends on order quantity.

Drive Wheel Other, 4x2, 4*2

Capacity (Load) 21 - 30t

Horsepower Other, 251 - 350hp, 180 - 350hp

Condition New

Transmission Type Manual

Emission Standard Euro 4

Engine Capacity 4 - 6L

Gross Vehicle Weight 15950

Place of Origin Hubei, China

Brand Name OEM ODM

Model Number HFC3161K3R1ZT

Dimensions (L x W x H) (mm) 7370,7520,7720,

JAC 2 axes small tipper truck

Product Features

(1) High strength alloy steel plate welding. Suspension compressed, one-way valve open, can absorb the road

through the wheel from the shock, shock absorption performance is good, hanging rebound, the check valve

closed, damping increase, can effectively control the spring back, attenuation of oscillation.

(2) The top of the car is equipped with activity against stand plate box cover

(3) High technology make the truck much more perfect than other brand trucks!

(4) Longer lifespan and low lost which can save you money and high safety all around make your drive safe !

(5) High reliability can achieve run effeciency and much more loading!

(6) Many measures are taken to make sure the driver can drive easier and much more comfortable!

(7) Giant amount of spare parts always ready for customers

(8) Chassis supply:DONGFENG,SINOTRUCK,HINO,FOTON,C&C,CAMC,FAW,SHACMAN,

Technical Parameters of JAC 2 axes small tipper truck

The totalmass	15950	Curb Weight	7830
Rated the quality of	7990,7925	Chassis Model	HFC3161K3R1ZT
Approach / departure angle	24/25	Front overhang / rear overhang	1470/1700,1470/1850, 1470/1750,1470/1950,1470/2050
Dimensions	7370,7520,7720, 7820,8120,8220X2495X3150, 3030	Compartment dimension	4700,5000,5200,5400, 5600X2300X800
Number of axes	2	Maximum speed	85
Tire Specifications	10.00R20 16PR,11.00R20 16PR	Number oftires	6
Front track	1750,1800	Rear track	1750,1800,1860
Wheelbase	4200,4500,4700	Number of spring	9/10+8,9/12+9
Emission standards	EURO4	Type of fuel	Diesel
Engine Model	Engine Manufacturer	Engine displacement	Engine power
YC6A240-33	Guangxi yuchai machinery co., LTD	7255	177
