Foton 8 cubic meters concrete mixer truck dimensions
Our company is a professional CONCRETE MIXER TRUCK manufacturer for 10 years
we can provide CONCRETE MIXER TRUCK from 3m3 to 16m3
Any questions,contact me without hesitation on 135-9782-6887
Product features

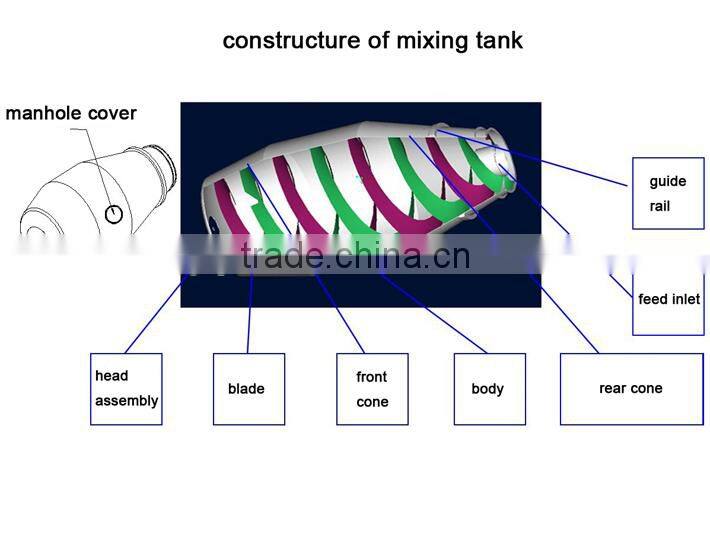

1, mixing drum and mixer blade using special wear-resisting material Q345/16Mn
2, material of blowpit and feed hopper scaleboard is just the same as the mixing drum
3, humanizing operating system,connecting rod operation,concise safe and reliable
4, using imported brand-name hydraulic system
5, flushing water back control
6, product with quick discharging, no residual
| System | Item | Reference Data |
| Parameters of mixing drum | agitation volume (m3) | 8 |
| charging rate (m3/min) | ≥2.8 | |
| discharging rate (m3/min) | ≥1.2 | |
| residual rate (%) | ≤0.5 | |
| rotating speed of mixing drum (rpm) | 0~17 | |
| Driving system | speed reducer | made in Italy by PMP |
| hydraulic pump | made in Italy by PMP | |
| hydraulic motor | made in Italy by PMP | |
| radiator | made in China | |

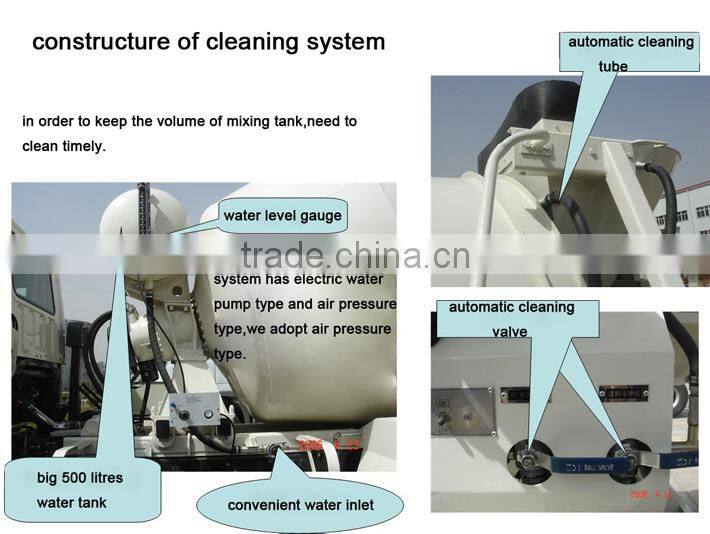

| Water supply | water tank volume (L) | 400 |
| type of water supply | air pressure water supply | |
| Control system | control mode | connecting rod control |
Product description
| Product Name | Foton AUMAN 8 cubic meters concrete mixer truck | |
| Product Model | Foton | |
| Main parameters | Overall size(L*W*H) | 8770,9050×2495×3870,3950mm |
| Gross weight | 25000gs | |
| Rated capacity | 11565kgs | |
| Curb weight | 13240kgs | |
| Approaching/Departure Angle | 21/16(°) | |
| Front/Rear suspension | 1465/2380,1532/2593mm | |
| Max.speed | 83km/h | |
| Chassis | Chassis Brand | FOTON |
| Chassis model | BJ5257GMPJB-S | |
| Drive type | 6X4, LHD/RHD | |
| Fuel Type | Diesel | |
| Tire Specification | 11.00-20,11.00R20 | |
| Tire No. | 10 | |
| Wheelbase | 3575+1350mm | |
| Alex No. | 3 | |
| Leaf Spring No. | 9/12 | |
| Gearbox | Shaanxi teeth 9 speed | |
| Front trend | 2010mm | |
| Rear trend | 1847/1847mm | |
| Engine | Manufacturer | Weichai Power Co.,Ltd. |
| Model | WP10.340E32 | |
| Horse Power | 340HP | |
| Displacement/Power | 9726ml/250kw | |
| Emission standard | Euro 3/Euro 4 | |

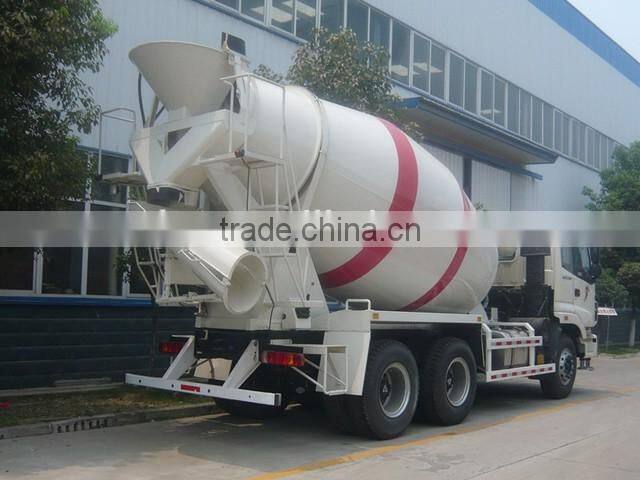

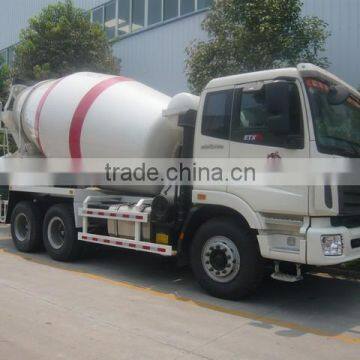

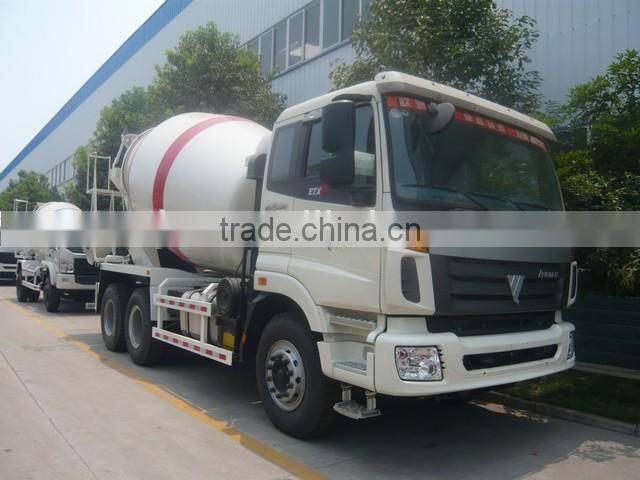

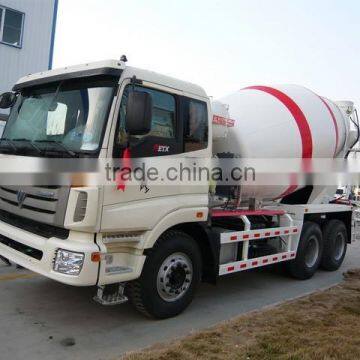

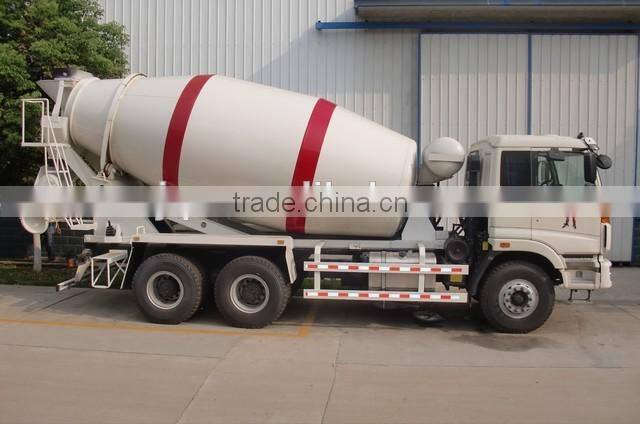

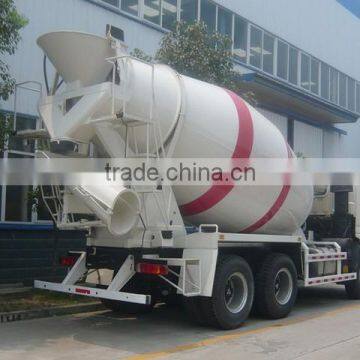

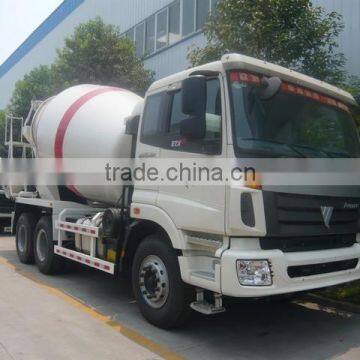

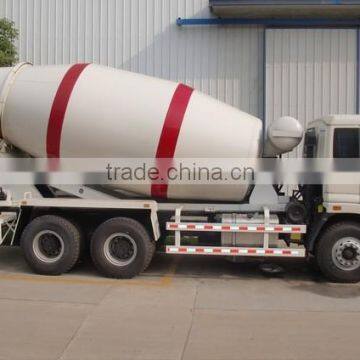

Product pictures

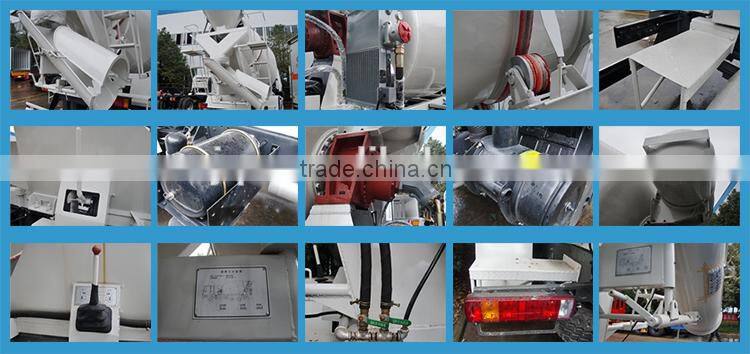

Detailed picture:

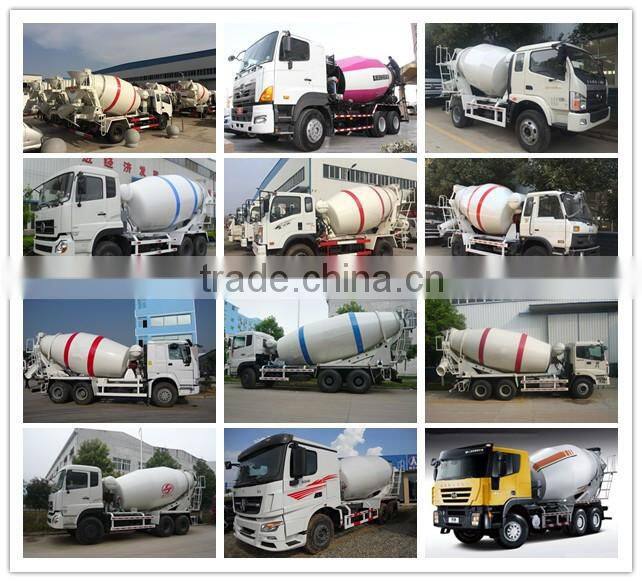

Similar Products:

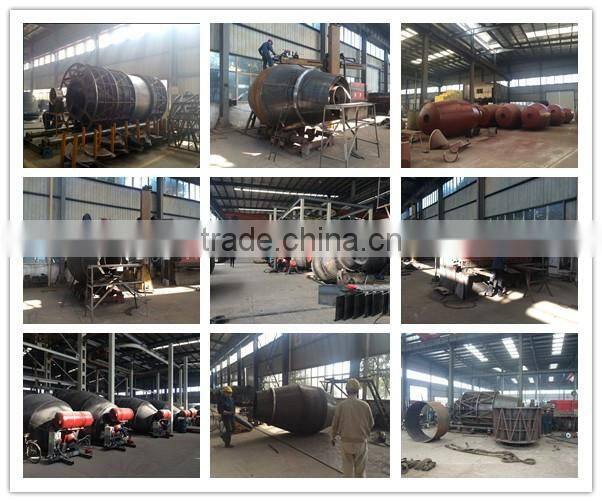

Production workshop
Production equipment
WHY CHOOSE US?
- Experience
- 10 years experience of production,sales,research and development in the field of special trucks.
- Specialization
- OEM&ODM is available,we can produce according to your demand, the material,the size, the color and the logo is optional for you.
- Good Quality
- has solid technology, advanced equipments; reliant quality and flexible modes of operation also
- have strict quality control system and passed the ISO9001-2008 and the 3C (China Compulsory Certification),with SGS,BV certifcate as well.
- Chassis supply
- we have a very good long term cooperation relationship with chassis manufacturer,such as DONGFENG,FOTON,SINOTRUCK,SHACMAN,IVECO,FAW,HINO,CAMC,NORTH-BENZ,ect.
- Production supply capacity
- Company Scale: More than 3000 employees with 1000 acres factory, total asset 2 billion.
- We manufacture the truck as soon as possible once your order confirmed. And for the stock,
- we can delivery it immediately.
- Our services
- 1. we can send our technician to arrive the customer's country to provide the service and also
- we can train customer‘s workers for free.
-
2. free consultation forever. When you meet small problems, professional advices can help you to solve them soon.
3. One year free cost warranty.
4. Spare parts forever. When you need spare parts, we can send them to you immediately.
Hubei Changjie Special Automobile Co., Ltd. , is a professional manufacturer of special automobiles
for 10 years. Our company has independent export authority, and has a lot of overseas clients.
Our leading products include more than 8 series and 100 types of trucks such as water trucks, tank trucks, garbage trucks, fecal suction trucks, sewage suction trucks, dump trucks, van trucks, semi-trailers, wrecker trucks, trucks with cranes, high-altitude operation trucks, training trucks, bulk
cement trucks, chemical liquid trucks, fire engines, truck fittings, cement mixers and tractors. At
the same time, we deal with wholesale chassis.
Our company has solid technology, flawless inspection, advanced equipment, reliable quality and flexible modes of operation. What's more, we have obtained ISO9001 and CCC certificates (China Compulsory Certification).
Our survival is based on the quality.Credit standing is the guarantee of our success. We will endeavor
to treat customers honestly, managing flexibly, guaranteeing high quality but low price, and keeping high efficiency. We promise that all the products that are adapted and sold by us can get one-year services
and maintenance for the life.
Our factory show:
