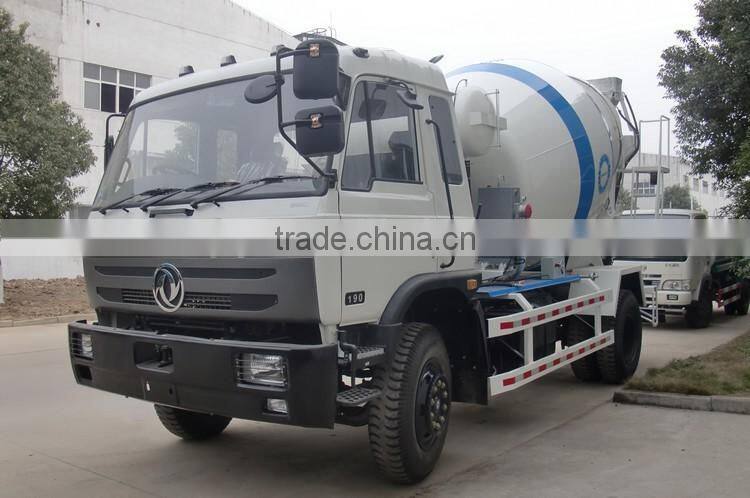

| New arrival cheap price customized for export high quality Q345/16Mn dongfeng 6cbm 6m3 rhd concrete mixer truck |
Product features
1, mixing drum and mixer blade using special wear-resisting material Q345/16Mn
2, material of blowpit and feed hopper scaleboard is just the same as the mixing drum
3, humanizing operating system,connecting rod operation,concise safe and reliable
4, using imported brand-name hydraulic system
5, flushing water back control
6, product with quick discharging, no residual
7, chassis supplier including:Dongfeng,Sinotruk,Foton,Shacman,North Benz,CAMC,
Nissan diesel,Hino,etc.
8.Drive mode:4x2,6x4,8x4 by right hand drive or left hand drive.

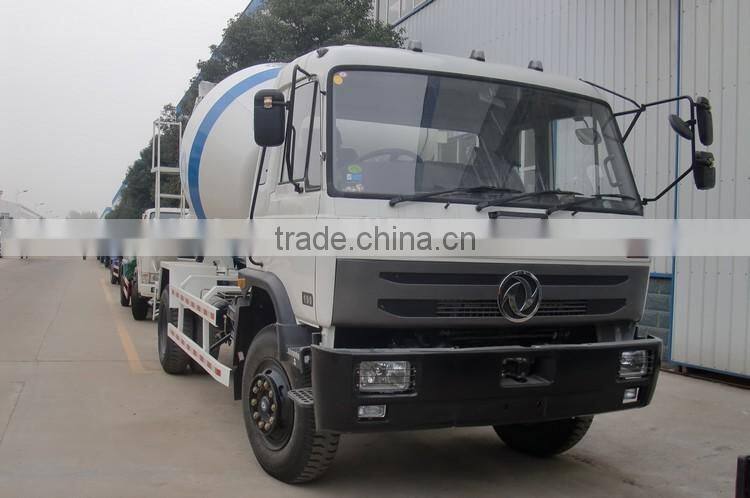

| Product Name | Dongfeng 6cbm RIGHT HAND DRIVE rhd concrete mixer truck | |
| Product Model | Dongfeng | |
| Main parameters | Overall size(L*W*H) | 7950,7650X2490X3900mm |
| Gross weight | 12000kgs | |
| Rated capacity | 4200kgs | |
| Curb weight | 7605kgs | |
| Approaching/Departure Angle | 25/13(°) | |
| Front/Rear suspension | 1250/2200mm | |
| Axle loading | 4600/7400 | |
| Max.speed | 80km/h | |
| Chassis | Chassis Brand | Dongfeng |
| Chassis model | EQ3120GSZ3GJ | |
| Drive type | 4X2, LHD/RHD | |
| Fuel Type | Diesel | |
| Tire Specification | 10.00-20,10.00R20 | |
| Tire No. | 6 | |
| Wheelbase | 4200,4500mm | |
| Alex No. | 2 | |
| Leaf Spring No. | 8/10+7 | |
| Front trend | 1940mm | |
| Rear trend | 1860mm | |
| Engine | Manufacturer | Guangxi Yuchi Machinery |
| Model | YC6J190-33 | |
| Horse Power | 190HP | |
| Displacement/Power | 6494ml/140kw | |
| Emission standard | Euro 3 | |
| System | Item | Reference Data |
| Parameters of mixing drum | agitation volume (m3) | 6 |
| charging rate (m3/min) | ≥2.8 | |
| discharging rate (m3/min) | ≥1.2 | |
| residual rate (%) | ≤0.5 | |
| rotating speed of mixing drum (rpm) | 0~12 | |

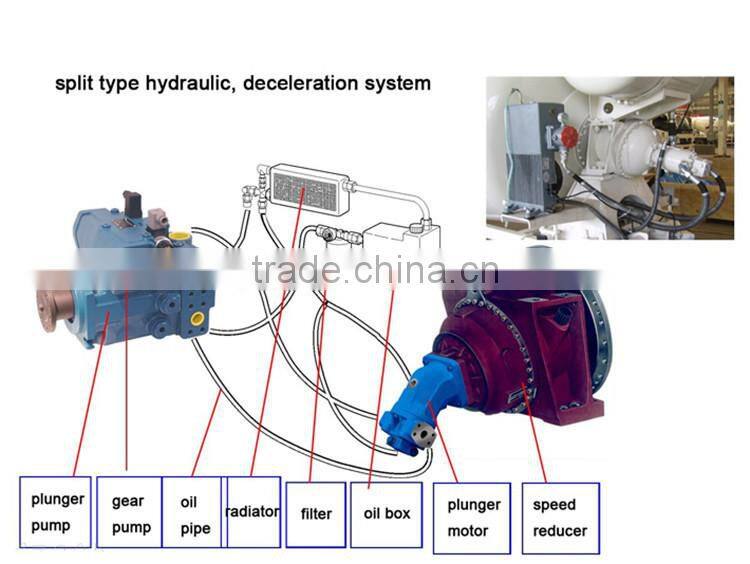

| Driving system | speed reducer | made in China |
| hydraulic pump | made in China | |
| hydraulic motor | made in China | |
| radiator | made in China | |
| Water supply | water tank volume (L) | 400 |
| type of water supply | air pressure water supply | |
| Control system | control mode | connecting rod control |

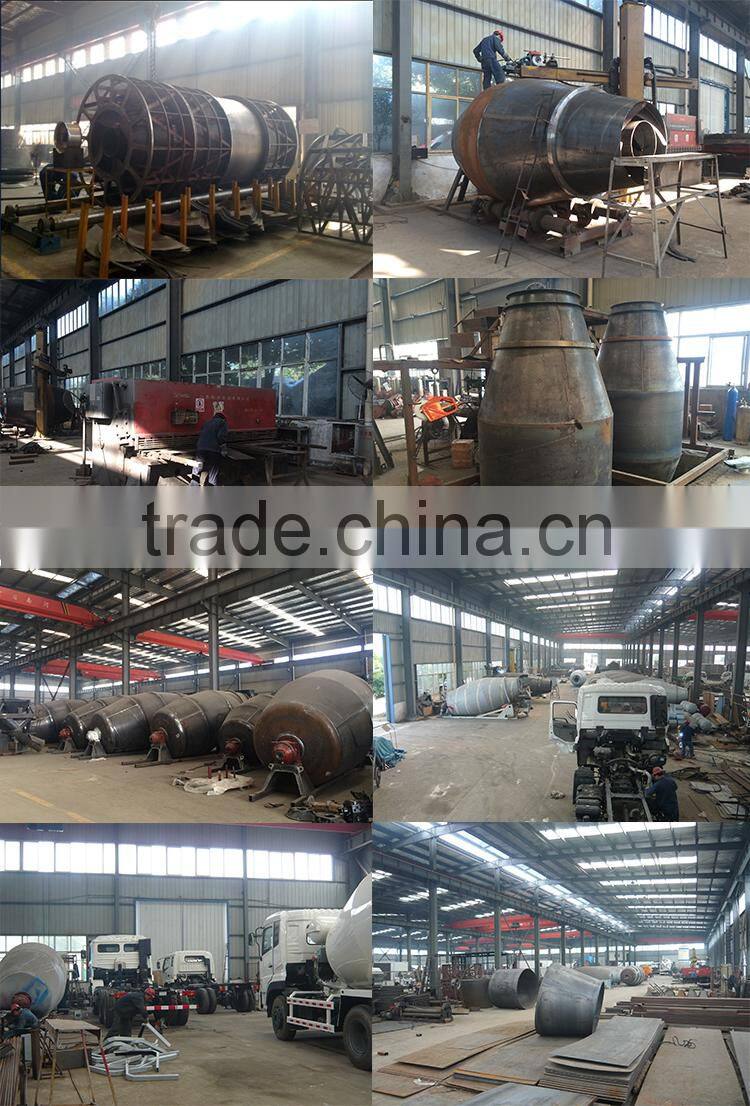

Production process:
Excellent Pre-sale Service
1. According to your specification request, provide the best price for you.
2. After you confirmed the specification and price, our engineers will draw a Official Drawing for you confirm.
3. After our Finance Department confirmed your deposit or Irrevocable L/C, we will start manufacture the products for you.
4. Update the progress of production to you in time, to help you know your order details progress.
5. After the product manufacture finished, if you need, we will arrange shipping for you. With our professional skill, you just need to pick your products up at the destination place, and don’t need to worry about the shipping at all.
Outstanding After-sale Service
1. If you have any questions when you use our products, please tell us, we will help you solve the problems in time.
2. If any spare parts have problem after you used it, we can provide it for you, help you solve the problem if anything affect your business.
3. We can also provide engineer to your local place if you need. You just need to bear the Airplane ticket, and accommodation cost.
4. Other relevant service you request.
1. 12 months guarantee term.
2. Small order accepted.
3. Professional technic support.
4. After-sale service.
5. Suit your needs excellence by design.
