EN10025 S235J2G3 20mm Thick Hot Rolled Steel Plate

FOB Price

US$ 480 - 630 / Kilogram

500 Kilograms(Min. Order)

Port Xingang Tianjin China
Payment TermsT/T L/C D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Standard	AISI, ASTM, BS, DIN, GB, JIS	Grade	s235j2g3
Thickness	8mm-600mm	Place of Origin	China
Brand Name	wuyang	Model Number	s235j2g3
Type	Steel Plate	Technique	Hot Rolled
Surface Treatment	Coated	Application	Other, constructional structure plate
Special Use	High-strength Steel Plate	Width	100mm-3800mm
Length	200mm-18000mm

Product Description

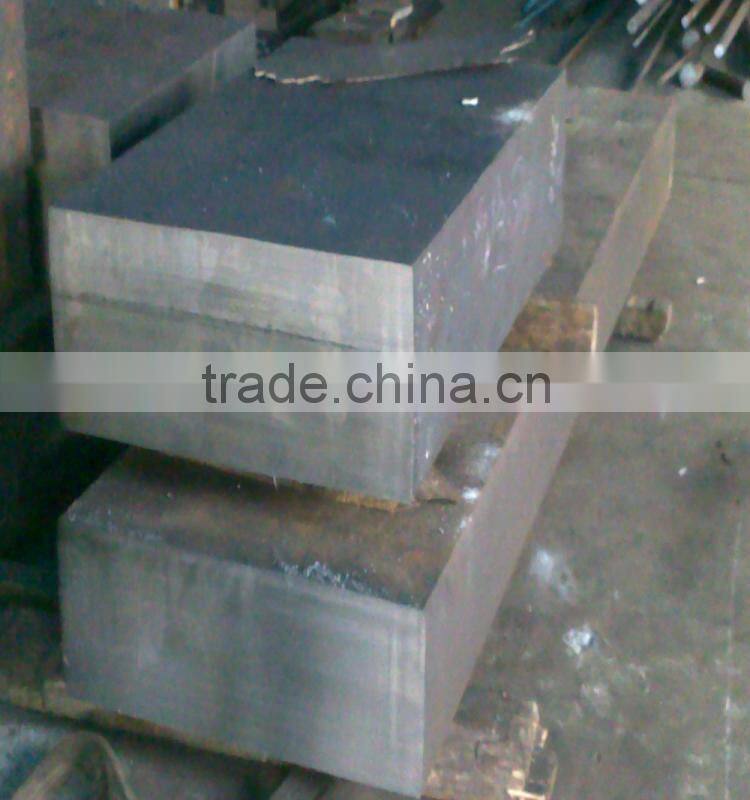

1. EN10025 S235J2G3 20mm Thick Hot Rolled Steel Plate

Chemical composition and Mechanical property

Standard	Grade	C max	Mn max	Si max	P	S	N	Cu	Yield strength max	Tensile strength	Elongation%
EN10025	S235JR	0.22	1.50	---	0.045	0.045	0.014	0.60	175Mpa	340-510 Mpa	17
EN10025	S235J0	0.19	1.50	---	0.040	0.040	0.014	0.60	175Mpa	340-510 Mpa	19
EN10025	S235J2	0.19	1.50	---	0.035	0.035	0.014	0.60	165Mpa	340-510 Mpa	19
EN10025	S275JR	0.25	1.60	---	0.045	0.045	0.014	0.60	205Mpa	330-510	19
EN10025	S275J0	0.21	1.60	---	0.040	0.040	0.014	0.60	205	380-540	19
EN10025	S275J2	0.21	1.60	---	0.035	0.035	---	0.60	195	380-540	19
EN10025	S355JR	0.27	1.70	0.60	0.045	0.045	0.014	0.60	275	450-680	22
EN10025	S355J0	0.24	1.70	0.60	0.045	0.045	0.014	0.60	265	450-680	22
EN10025	S355J2	0.22	1.70	0.55	0.045	0.045	0.014	0.60	255	450-680	22

Material	S235JR
Thickness	8mm-600mm
Width	1500mm-4200mm
Length	6000mm-18000mm
Delivery condition	Hot rolled, controlled rolled, or normalized
Cutting service	Large steel plate cut to flat plate sizes, or cut to any size by drawing
Deep processing	After cutting large plate into the general sizes by drawing, milling and grinding, and make angles, polishing, and make special parts

2. EN10025 S235J2G3 20mm Thick Hot Rolled Steel Plate

steel materials can be supplied

Carbon steel plate	A283GR.C/GR.D, ASTMA36, A573GR.58, A573GR.65, A573GR.70. SS400, SM400A, SM400B. SM400C, S235JR, S235J0, S235J2, S275JR, S275J0, S275J2, S275N, S275NL, S275M, S275ML, 250, 250L0, 250L15, Q235A/B/C/D, Q275A/B/C/D,
Low Alloy steel plate	A572GR.50, A572GR.60, SS490, SM490N/NL, S460N/NL, S355M/ML, S420M/ML, S460M/ML, S500Q/QL/QL1, S550Q/QL/QL1,S620Q/QL/QL1, S690Q/QL/QL1, S355G8+N, 350, 350L0, 350L15, Q345A, Q345B, Q345C, Q345D, Q345E, Q390A, Q390B, Q390C, Q390D, Q390E, Q420A, Q420B, Q420C, Q420D, Q420E, Q460C, Q460D, Q460E, Q500C, Q500D, Q500E, Q550C, Q550D, Q550E, Q20C, Q620D, Q620E, Q690C, Q690D, Q690E, 890D, Q890E,Q960D, Q960E, XGCFQ500D, XGCFQ500E.
General Strength ship plate, high strength ship plate, ultra high strength ship plate	A,B, C, D, E, A32,D32, E32, F32, A36, D36, E36, F36, A40,D40, E40, F40, A131A, A131B, A131D, A131E, AH32, DH32, EH32, AH36,DH36, EH36, AH40, DH40, EH40, NVA420, D420, E420, NVA460, NVD460, NVE460,NVA500, NVD500, NVE500, NVA550, NVD550, NVE550.
Ship pressure vessel plate	NV360, NV410, NV460, NV490, NV510, LR360, LR360FG, LR410, LR410FG, LR460FG, LR490FG, LR510FG,
Bridge plate	Q235QC/D/E, Q345QC/D/E, Q370QC/D/E, Q42QC/D/E, Q460QC/D/E, Q500QD/E, Q550QD/E, Q620QD/E, Q690QD/E, A709-50T-1/50T-2/50T-3/50F-1/50F-2/50F-3, A709-50W-A/B/C-F1/F2/F3-T1/T2/T3
Boiler pressure vessel plate	Q245R,Q345R,Q370R,15CrMoR,18MnMoNbR,13MnNiMoR, 12Cr1MoVR,12Cr2Mo1R,14CrMoR,16MnDR,09MnNiDR,15MnNiDR, 07MnCrMoVR,07MnNiCrMoVDR/12MnNiVR, Q245R, Q345R, 16MNDR.P235GH,P265GH,P395GH,P355GH,16Mo3, P275NH/NL1/NL2, P355N/NH/NL1/NL2, P460NH/NL1/NL2, P355M/ML1/ML2, P420M/ML1/ML2,P460m/ml1/ml2, P355Q/QH/QL1/QL2, P460Q/QH/QL1/QL2, P500Q/QH/QL1/QL2,P690Q/QH/QL1/QL2, 10CrMo9-10, 11MnNi5-3, 13CrMo4-5, 13CrMoSi5-5, 13MnNi6-3, 18MnMo4-5, 20MnMoNi4-5. (S)A204Gr.A/Gr.B/Gr.C (S)A285Gr.A/Gr.B/Gr.C (S)A299Gr.A/Gr.B,A302Gr.A/Gr.B/Gr.C/Gr.D, A387Gr.2/Gr.11/Gr.22. ASTMA455 (S)A515Gr.60/65/70, (S)A516Gr.55/60/65/70, (S)A516Gr.60(HIC), (S) A516Gr.60(R-HIC) (S)A517Gr.B/Gr.H (S)A533Gr.A/Gr.B/Gr.C (S)A537CL.1/CL.2/CL.3, ASTMA612, (S)A662Gr.A/Gr.B/Gr.C (S)A737Gr.B/Gr.C A738Gr.A/Gr.B/Gr.C (S)A841Gr.A/Gr.B/Gr.C/Gr.D SB410,SB450,SB480, SB450M/480M, SEV245/295/345, SBV1A/1B, SBV2/3, SGV410/450/480,SPV235/315/355/410, SPV450/490, SQV1A/1B/2A/2B/3A/3B
High-rise Building Plate	Q235GJB/C/D/E. Q345GJB/C/D/E,Q390GJC/D/E, Q420GJC/D/E, SN400A/B/C, SN490B/C

3. EN10025 S235J2G3 20mm Thick Hot Rolled Steel Plate

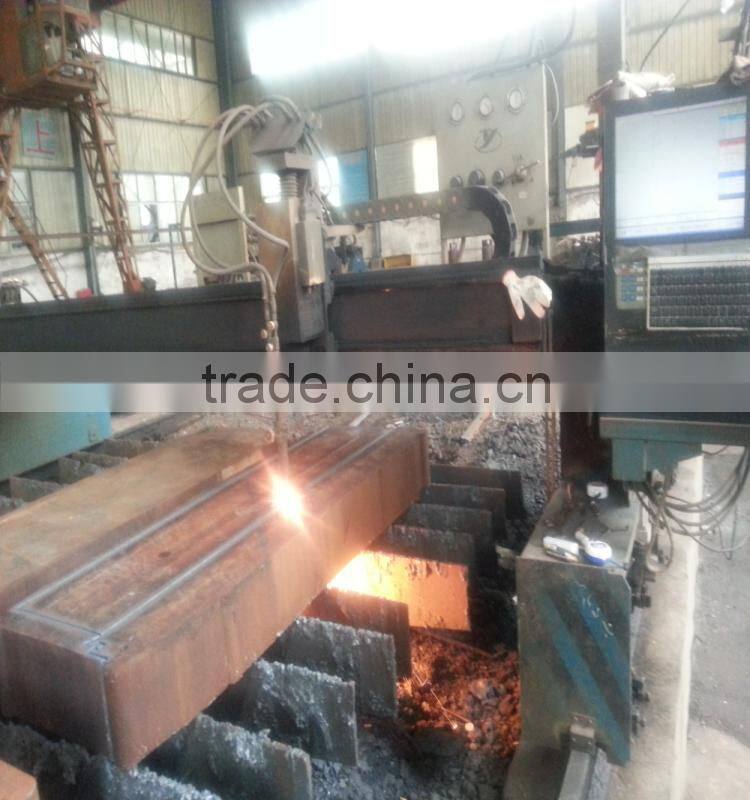

large plaes cut to flat plate or other sizes plate. cutting usually use laser cutting for thickness under 30mm, usually use flame cutting for plates thickness over 30mm, especially for thickness 100mm, 150mm, 200mm, 300mm large stock plates, cut to special sizes requried.

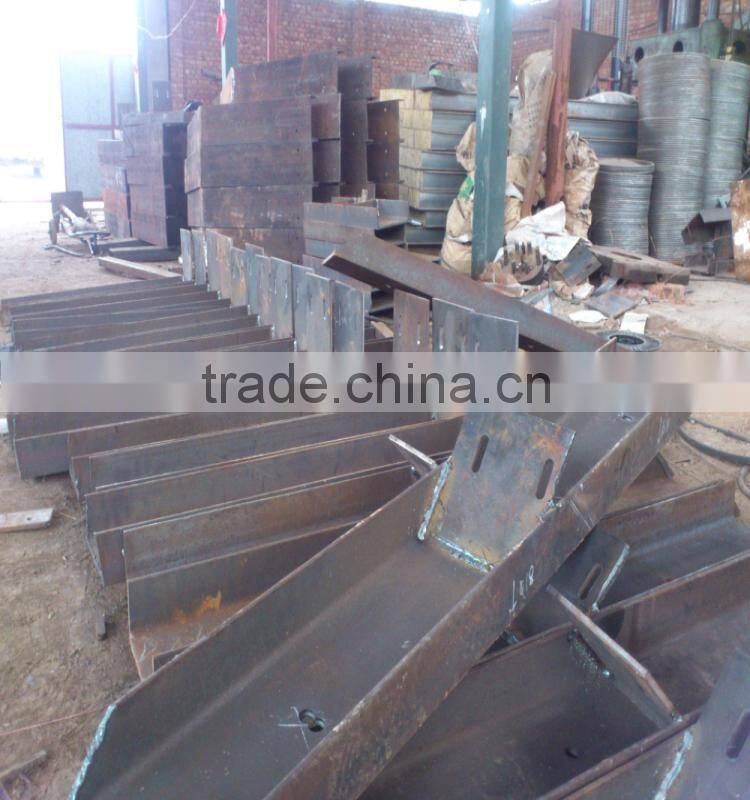

4. EN10025 S235J2G3 20mm Thick Hot Rolled Steel Plate , cutting service, cutting to different shapes

Steel Plate; steel sheets; carbon steel plates, alloy steel plates, ms steel plate; mild steel plate; chequered steel plate; checkered steel plate; steel sheet; galvanized steel coils; galvanized steel plate, ppgi steel plate; corrugated steel plate; steel angle bars, steel beam, h beams, steel channels; flanges; steel pipes; seamless steel pipes; welded steel pipes, steel tubes; stanless steel pipes; stainless steel plate. And can provide many different processing: steel welding, making holes; steel plates cutting, plates processing, laser cutting, steel plates processing, plate work processing; metal plate processing;;cutting plates; plates cutting; laser cutting steel plates; ms plate cutting; cutting steel plate; steel plate cuttings; laser cut metal plate; iron plate cutting; cut metal plate; metal plate lasr cutting; metal plates cutting; plates cutting flange; cutting scrap steel plate; cut edge plate; steel cutting disc; carbon steel cutting disc; cutting disc for steel; cnc steel cutting; plate processing.

5 EN10025 S235J2G3 20mm Thick Hot Rolled Steel Plate

we can cut the large steel plates by your requirements, but to the width and length your demand; we can make the surface of the cut steel plate to be bright by miling and grinding, also can make holes and make angle degrees,and can weld by your drawing.

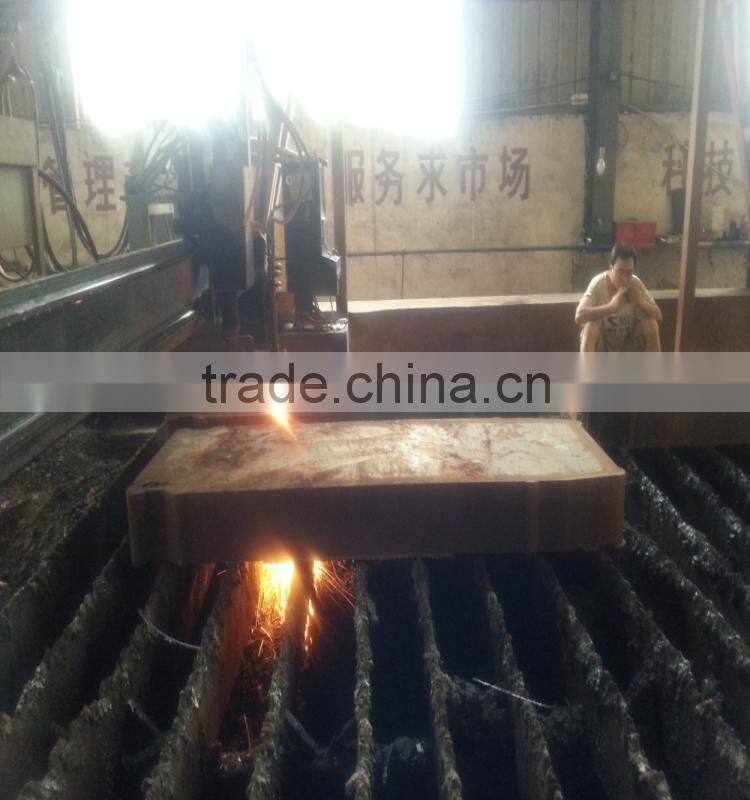

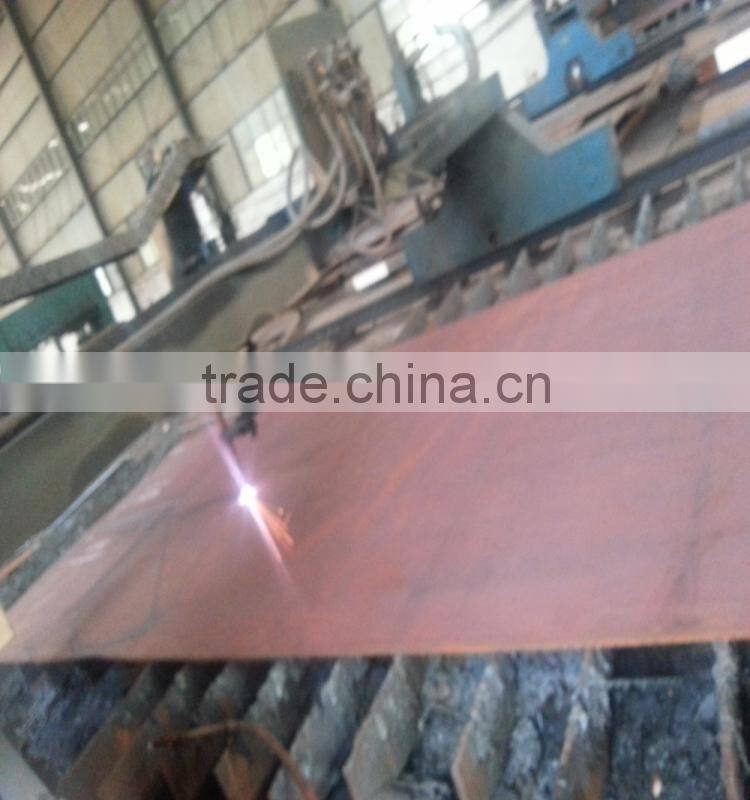

For the thickness under 30mm, we mainly cut by laser cutting;for thickness over 30mm, mainly OXY-cut, flame cutting.

for the thickness 200mm steel plate, because during the flame cutting, the temperature is very high, so the cutting parts steel plate might be broken at the angle part, then our workers will repair the angles to be good condition.

6. EN10025 S235J2G3 20mm Thick Hot Rolled Steel Plate

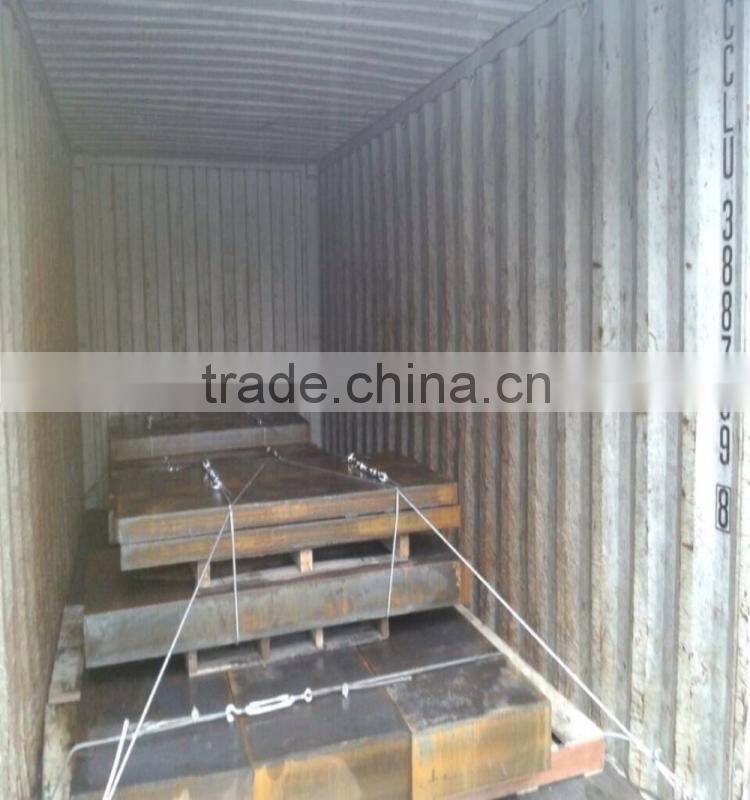

transportation at truck and loading into containers pictures
