Home > Auto, Motorcycle Parts & Accessories > Car Safety > Car DVR > HD CVI DVR With 1080P&720P 8CH 8 Channel CVR Realtime Recorder Remote View 8CH HDCVI DVR

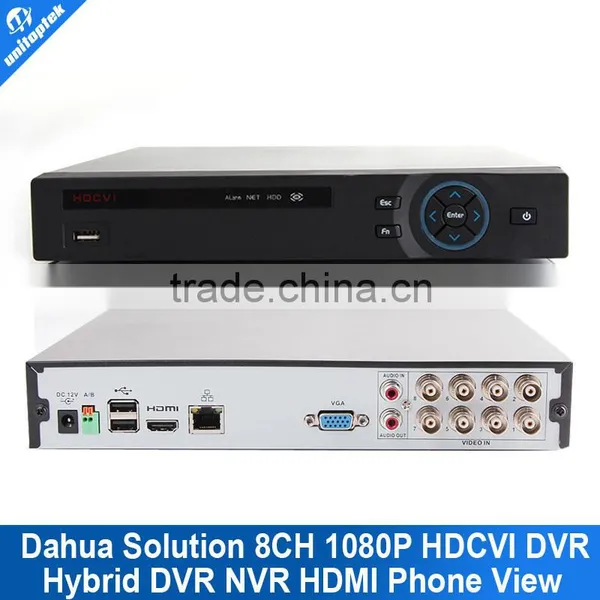

HD CVI DVR With 1080P&720P 8CH 8 Channel CVR Realtime Recorder Remote View 8CH HDCVI DVR

Name: HD CVI DVR With 1080P&720P 8CH 8 Channel CVR Realtime Recorder Remote View 8CH HDCVI DVR
Brand: UNITOPTEK
SKU: 123503281
Availability: InStock

HD CVI DVR With 1080P&720P 8CH 8 Channel CVR Realtime Recorder Remote View 8CH HDCVI DVR thumbnail-1

HD CVI DVR With 1080P&720P 8CH 8 Channel CVR Realtime Recorder Remote View 8CH HDCVI DVR thumbnail-2

HD CVI DVR With 1080P&720P 8CH 8 Channel CVR Realtime Recorder Remote View 8CH HDCVI DVR thumbnail-3

HD CVI DVR With 1080P&720P 8CH 8 Channel CVR Realtime Recorder Remote View 8CH HDCVI DVR thumbnail-4

HD CVI DVR With 1080P&720P 8CH 8 Channel CVR Realtime Recorder Remote View 8CH HDCVI DVR thumbnail-5

HD CVI DVR With 1080P&720P 8CH 8 Channel CVR Realtime Recorder Remote View 8CH HDCVI DVR thumbnail-6

HD CVI DVR With 1080P&720P 8CH 8 Channel CVR Realtime Recorder Remote View 8CH HDCVI DVR photo-1

HD CVI DVR With 1080P&720P 8CH 8 Channel CVR Realtime Recorder Remote View 8CH HDCVI DVR photo-2

HD CVI DVR With 1080P&720P 8CH 8 Channel CVR Realtime Recorder Remote View 8CH HDCVI DVR photo-3

HD CVI DVR With 1080P&720P 8CH 8 Channel CVR Realtime Recorder Remote View 8CH HDCVI DVR photo-4

HD CVI DVR With 1080P&720P 8CH 8 Channel CVR Realtime Recorder Remote View 8CH HDCVI DVR photo-5

HD CVI DVR With 1080P&720P 8CH 8 Channel CVR Realtime Recorder Remote View 8CH HDCVI DVR photo-6

US$ 120 - 128 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

UNITOPTEK

Model Number:

WCVR5208

Contact Supplier Request Quote Chat Now

Shenzhen Unitoptek Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ShenZhen pork

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name UNITOPTEK

Model Number WCVR5208

HD CVI DVR With 1080P&720P 8CH 8 channel CVR Realtime Recorder Remote View 8CH HDCVI DVR

Product Description

Features:

8CH 1080P Recording 12fps/channel

8CH 1.3MP Recording 25fps/channel

8CH 720P Recording 25fps/channel

Hybrid dvr NVR : 4CH CVR+4CH NVR

Note: The hdcvi cvr dvr support 960h Analog Camera

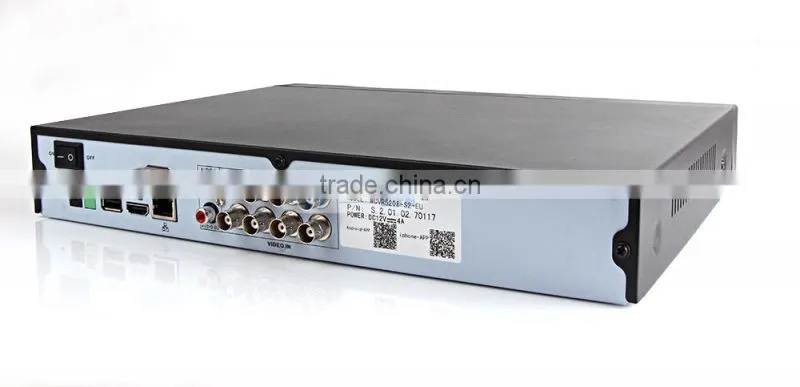

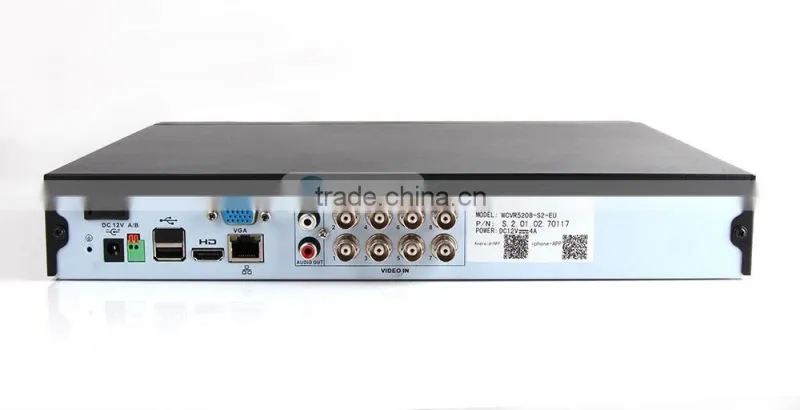

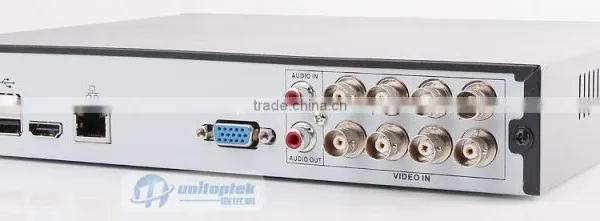

Video 8CH BNC input, 1ch VGA & HDMI output

Audio 1ch BNC input,1ch output

Support mobile Phone(Andrioid, IOS) & Network view

Support over 28 languages: English, Russian, Portuguese, Spanish, Japanese, etc.

2 SATA Port, up to 8TB

Why HDCVI ?

1) Reliability

HDCVI adopts P2P transmission to ensure a smooth and reliable transmission; while the

Transmission of network camera is based on Ethernet and thus may lead to network jitter and Packet loss;

2) Real-time

The network HD features video buer technology and the delay is controlled within 300Milliseconds in the general and fair networking environment;However, HDCVI features no Latency capability for an outstanding real-time performance;

3) No Compression

For HDCVI, there is no compression processed to maintain its original output and thus present in high quality image.

4) Transmitting data over 500m over a coaxial cable

Transmitting data over 500m over a coaxial cable can be realized, depending on the cable selected. Cable 75-3 and 75-5 are recommended for transmissions within 500m, cable 75-5 and above for over 500m.

Why Choose HDCVI (High Definition Composite Video Interface)?

1.HDCVI is a solution for megapixel high definition applications, featuring non-latent long-distance transmission at a lower cost. The technology offers two specifications: 1080p (1920×1080) and 720p (1280×720).

2.HDCVI is an over-coaxial-cable analog HD video transmission standard, allowing long-distance HD transmission at a lower cost to meet the requirements for a complex and large installation.With no new cabling or IP hassle required, HDCVI is one option for upgrading existing systems from standard definition to high definition, offering longer transmission via coaxial cable and lower total cost.

3.Transmitting data over 500m over a coaxial cable can be realized, depending on the cable selected. Cable 75-3 and 75-5 are recommended for transmissions within 500m, cable 75-5 and above for over 500m. Connectors and welding process also affect the transmission distance.

4.HDCVI composites video, audio, and control signals together and then transmits them over one coaxial cable, simplifying installation.

	HD-CVI	HD-SDI	CVBS	IP CAMERA
Resolution Pixel	1MP/1.3MP (720P/960P)	1MP/2MP (720P/1080P)	Max 552,960pixel	Unlimited
Image Quality	HD,Real-time,Lossless Compression	HD,Real-time, Lossless Compression	Standard,Real-time,Lossless Compression	HD,lossy Compression
Coaxial Control	Support	Extra Device	Extra Device	Support
Coaxial Audio	Support	Support	Not Support	Support
Transmission Delay	No delay	No delay	No delay	Network latency
Transmission Medium	SYV75-3 Coaxial Line	More than SYV75-5 Coaxial Line	SYV75-3 Coaxial Line	Cat5 Ethernet Cable
Transmission Distance	1-500M	1-100M	1-500M	1-100M
Construction Deployment	Easy Operate	Easy Operate	Easy Operate	Complex
Anti-interference	Strong	Weak	Strong	Stronger
Transmission Reliability	High	Low	High	Low
Total Cost	Cheap	Expensive	Cheap	Reasonable

Specification:

Model	WCVR5208
System	Main Processor	Embedded processor
System	Operating System	Embedded LINUX
Video	Input	8 channel,
Audio	Input	1 channel, RCA
	Output	1 channel, RCA
	Two-way Talk	NO
Display	Interface	1HDMI, 1 VGA
	Resolution	1920× 1080, 1280× 960, 1280× 720,
	Display Split	1/4/8
	Privacy Masking	4 rectangular zones (each camera)
	OSD	Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording	Video/Audio Compression	H.264
	Resolution	1080P/720P/960H /D1/HD1/2CIF/CIF/QCIF
	Extra Stream	CIF/QCIF(1~25/30fps)
	Bit Rate	48~6144Kb/s
	Record Mode	Manual, Schedule(Regular(Continuous), MD), Stop
	Record Interval	1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300sec
Video Detection & Alarm	Trigger Events	Recording, Tour, Video Push, Email, FTP, Spot, Buzzer & Screen tips
	Video Detection	Motion Detection, MD Zones: 396(22× 18), Video Loss & Camera Blank
	Alarm Input	NO
	Alarm Output	NO
Playback & Backup	Sync Playback	1/8
	Search Mode	Time/Date, MD & Exact search (accurate to second)
	Backup Mode	USB Device / Network
Network	Ethernet	RJ-45 port (10/100/1000M)
	Network Functions	HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter
	Smart Phone	Android, Windows Phone,IOS
Storage	Internal HDD	2 SATA port, up to 8TB
Auxiliary Interface	USB Interface	2 ports(1 Rear), USB2.0
General	Power Supply	DC12V/2A
	Power Consumption	≤15W(without HDD)
	Working Environment	-10 ~+55°C / 10~90%RH / 86~106kpa

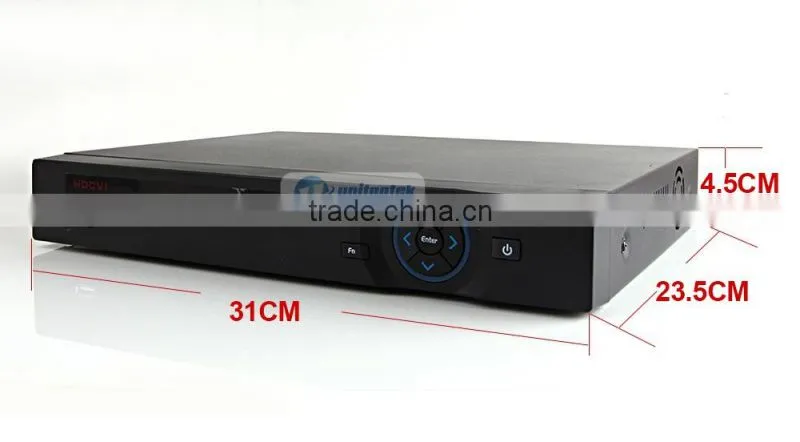

	Dimension	Packing:383012cm , only dvr:33.5265cm
	Weight	Packing:2.10kg(without HDD) , only dvr:1.40kg
