Specifications
1.Control and programming of pool lighting (automatic and manual mode2.Programmable wash and backwash time
Providing with filtration,backwash,rinse and empty functions.
Working mode:
1.Optional manual mode for direct operation with all conventional multi-port valve position.
2.Automatic activation of filter backwash via a pressure switch.
3.Control and programming of pool lighting(automatic and manual mode)
4.Programmable wash and backwash time.
Features:
Anti-earthquake protection.
IP65protection
Self-check device.
Pressure switch can self test the pressure.
Easy to install and run automatically.
Dual safety system to protect against potential lacks of power supply.
Maintain the water in optimum condition without anybody to watch it.
Advantages:
1.Fit the standard sand filters.
2.Make sand filters working more efficiency.
3.One product with multi-function but easy use.
Safety:
Avoid accidental draning from the pool.
Advise to set elctro valve beside the outlet.
It is forbidden to remove the cover when it is in work

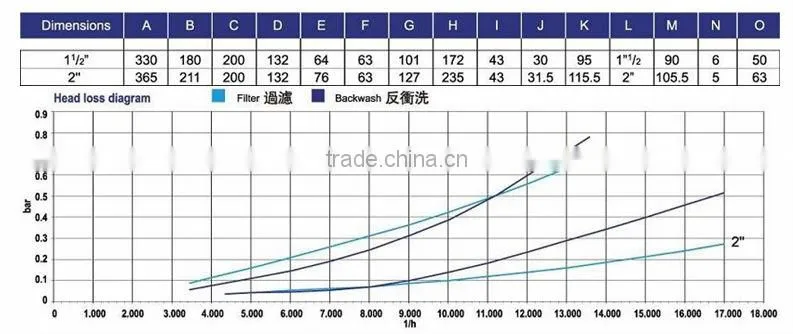

1.5” |
2” |
|
Valve |
HS3301 |
HS3302 |
Position |
Side-mount |
Side-mount |
Maximum working pressure |
3.5 bar(20°C) |
3.5 bar(20°C) |
Maximum testing pressure |
5.2 bar(20°C) |
5.2 bar(20°C) |
Flow |
16-25 m³/h |
35-55m³/h |
Protection |
IP65 |
IP65 |
Supply |
24VCD |
24VCD |
Control panel |
With or without transformer for pool lights |
|
Electrovalve (draining) |
Required when filtration system is build under the pool level |
|
3 way actuated valve |
It allows to automate selection between skimmer or pool vac intakes |
|
Packaging Details: Standard carton
Shipping time: within one month upon receipt of the deposit confirmation
