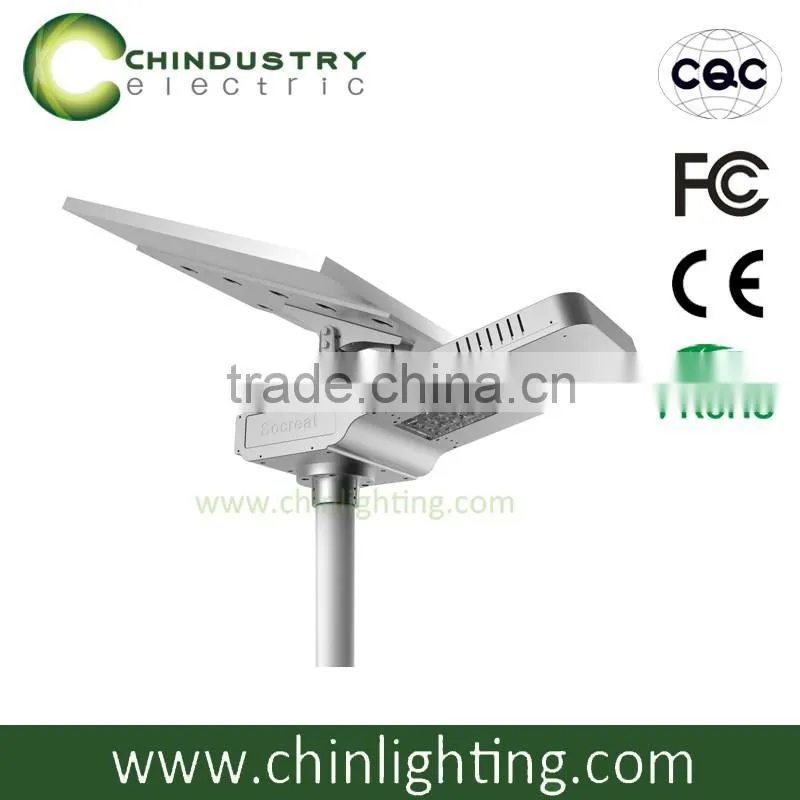

40w solar street light led, CE ROHS new style 5000lm led street light
Specifiction:
| Type | CH-SS-50 | CH-SS-65 | CH-SS-80 | CH-SS-100 |
| Lamp power | 15W | 20W | 30W | 40W |
| Solar panel | 50W/18V | 65W/18V | 80W/18V | 100W/18V |
| Lithium battery | 170WH/12.8V | 212WH/12.8V | 340WH/12.8V | 424WH/12.8V |
| LED qty | 40pcs | 40pcs | 60pcs | 60pcs |
| Luminous flux | 1800-2100lm | 2500-2800lm | 3600-4200lm | 5000-5600lm |
| Charge time(full sunlight) | 5.5hrs | 5.5hrs | 7hrs | 7hrs |
| LED chip | Bridgelux | |||
| Color temperature | 3000-6500K | |||
| CRI | ≥70Ra | |||
| Light control voltage | 5V | |||
| Light distribution | Bat wing with polarized light | |||
| Lighting time | 2-3 days | |||
| Sensor distance | 5-10m | / | ||
| Sensor time | 20-30s | / | ||
| Working temperature | -20 ℃~+60 ℃ | |||
| Lifetime | ≥50000hours | |||
| Material | High quality aluminum alloy, die-cast aluminum | |||
| Pole top diameter | 70mm | |||
| Mounting height | 5-10meters | |||
| Installation spacing | 10-30meters | |||

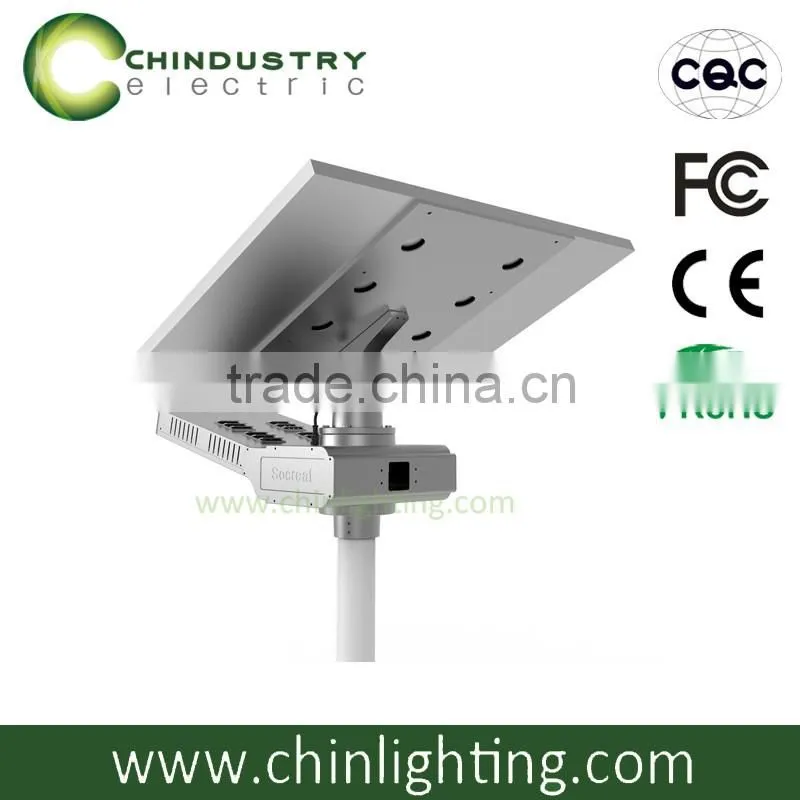

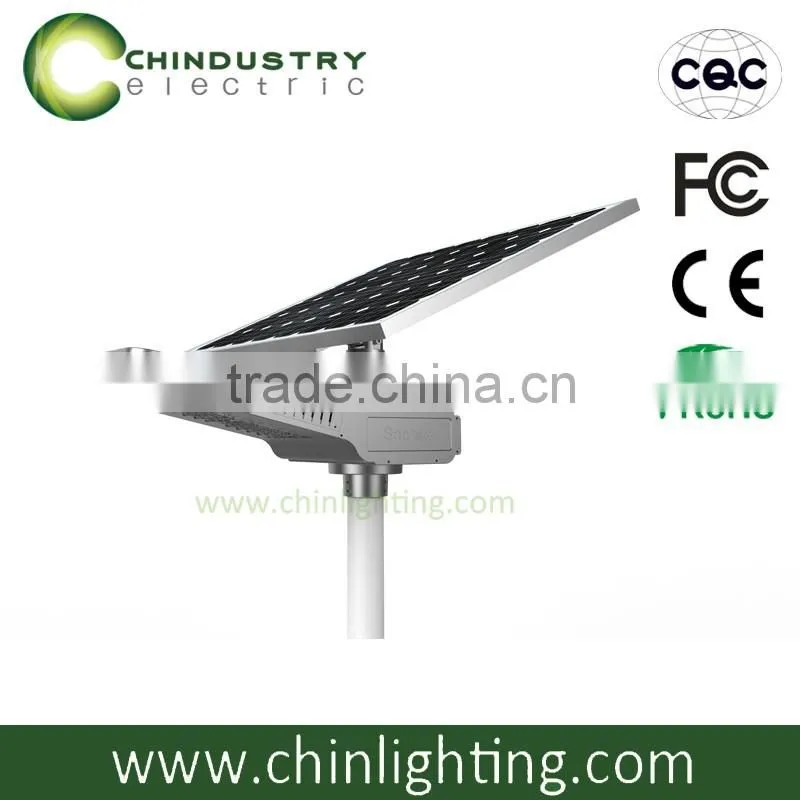

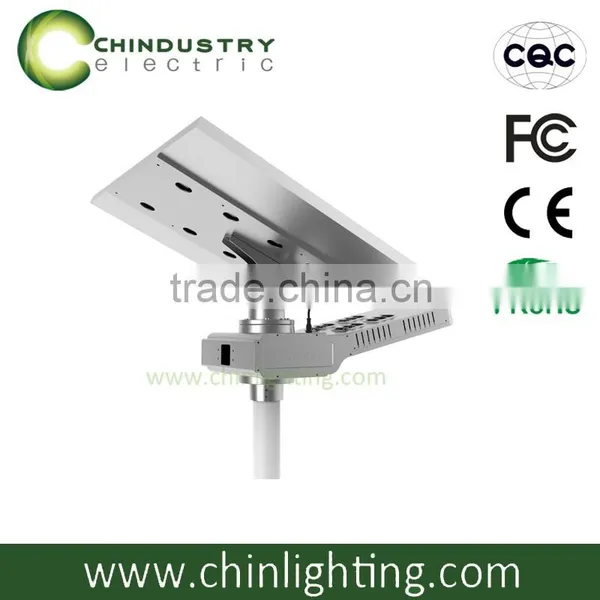

Solar panel is adjustable:
Feature:
1. Beautiful and modern appearance, simple and fashionable.
2. Use of solar green energy, environment friendly, saving more.
3. Low voltage driving, meet the Europe standard of CE RoHS FCC.
4. No Hg, Pb or other hazardous materials, no radiation, human safety.
5. IP65 grade, TVS lighting protection.
6. Long lifetime of whole lamp, low maintenance costs.
Advantage:
1. Wireless application - Integrated solar panel, LED, lithium battery, micro-controller and other accessories into one system simple and stylish.

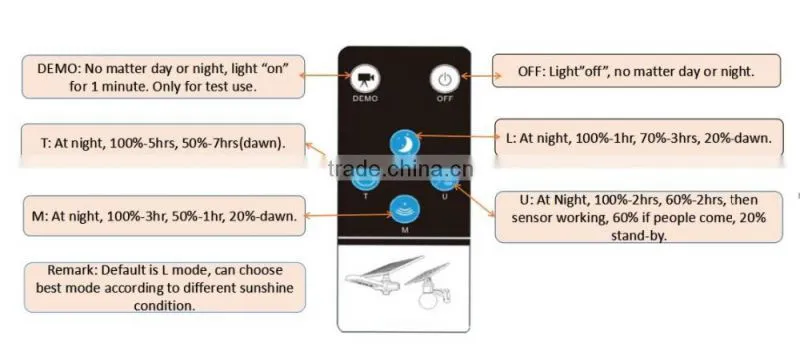

2. Micro-computer controlled - Combine light control system and time control system perfectly, ensure whole system more energy-efficient.
3. Easy installation - No power required, no cables required, easy installation in 5 minutes.
4. Solar panel angle adjustable - Adjustable in vertical and horizontal direction, ensure maximum efficiency of solar energy conversion.
5. Good heat dissipation - Solar panel, battery and light body do not connect directly, they will not conduct heat to each other, to support good heat dissipation and long lifetime.
6. Extreme light - Light efficiency reach 160lm/w, at same illumination, lower watt available.
7. Lithium battery - Adopt lithium battery to replace traditional gel battery, longer lifetime.
8. Modular design - All components are modular design and in standardized production. Battery can be easily replaced if needed.
9. Low cost - Compared with traditional solar led lights, much lower cost, easy to transport.
Pls attention:
(1) Items are shipped only after 100% payment is confirmed received.
(2) Handle time: All item will be shipped within 1 working day with stock, except for mass production item request.
(3) Shipping way: Fast shipping such as DHL,UPS,FEDEX,TNT,EMS and so on or appoint by buyer,but except for mass production item.
(4) Deliver time: most contry takes 4-10 days, we can offer more precise ref time for you when ordering.
(5) Please make sure your shipping address is corrected which we will use only system address.
Package specification:
Pack one lamp with two cartons.
Color box packaged, anti-shock packaging material, with bubble bags and foam, ensure transport safety.
| Type | Parts | Box size(L*W*H) | Net Weight | Gross Weight | Volume Weight | 20GP | 40GP |
| CH-SS-50 | Lamp body | 725*355*280mm | 10kg | 11kg | 24kg | 230pcs | 490pcs |
| Panel | 675*595*62mm | 6kg | 7kg | ||||
| CH-SS-65 | Lamp body | 725*355*280mm | 10.5kg | 11kg | 26kg | 220pcs | 450pcs |
| Panel | 725*660*62mm | 6.5kg | 8kg | ||||
| CH-SS-80 | Lamp body | 725*355*280mm | 11kg | 12kg | 29kg | 200pcs | 420pcs |
| Panel | 834*730*62mm |
9kg | 10kg | ||||
| CH-SS-100 | Lamp body | 725*355*280mm | 12kg | 13kg | 30kg | 190pcs | 390pcs |
| Panel | 1005*755*65mm | 11kg | 12kg |
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
