Help CenterDaylight White SMD3528 9W T8 Led Tube of 60cm
Related Products
-
60cm t5 Led Tube SMD3528 With FixtureUS$ 7.52 - 8.86MOQ: 1 Piece -
12w SMD3528 T10 Led TubeUS$ 15.21 - 25.05MOQ: 1 Piece
-
Warm White t5 Led Tube SMD3014 With FixtureUS$ 15.25 - 22.21MOQ: 1 Piece
-
Warm White SMD3528 Led Tube T8 150cmUS$ 28 - 32MOQ: 1 Piece
-
T5 Led Tube Led Grow LightUS$ 10.5 - 16.5MOQ: 1 Piece
Specifications
Super bright SMD led tubeCE(EMC,LVD), Rohs
constant current driver used
factory direct sales
<3% light declines in 3000h
Features
- 1/2 aluminum body with frosted PC cover, solid state, high shock vibration resistant
- No need ballast, soft start, no flickering, protect hurt of eyes
- Low power consumption, saving energy, No UV or IR radiation
- Long life of LED, minimum maintenance
- No hydrargyrum, green environment, compliant with RoHS
- High flux, direction illuminate, high efficiency
Applications
Factories’ production lines
Supermarket and convenient stores
Offices and conference room
Corridor and stairs
Hospitals and Schools
Car parks
LED Tube Standard Color
Warm White: 2800-3500K
Commerial White(Daylight white ): 4000-6000K
Cold White: 6000-7000K
LED Tube Dimension
60cm * 2.6cm
LED Tube Technical Specifications
1. LED type : 3528 SMD LED 144pcs
2. Wide voltage Input: AC 85-277 V
3. Frequency : 50-60 Hz
4. PF (power factor ): 0.92-0.99
5. Power Efficiency: >87%
6. Harmonic Wave: < 20
7. LED tube CRI:70
8. Use or storage temperature: -20°C---75°C
9.Life time: 30000hrs +
T8 LED fluorescent tube
External Structure:
A. PC cover
B. Metal Core PCB
C. Silicone thermal resin
D. D-shape aluminous body
E. PC isolation cover of power supply
F. Power supply
T8 LED Tube Illumination(Lux)
| Part No. | Length | 1M | 2M | 3M |
| Frosted shell | 60cm | 160-200lx | 40-60lx | 15-25lx |
| 90cm | 260-300lx | 60-80lx | 25-40lx | |
| 120cm | 350-380lx | 80-100lx | 35-45lx | |
| 150cm | 460-500lx | 110-130lx | 50-60lx | |
| 240cm | 550-600lx | 130-150lx | 60-75lx | |
| Transparent shell | 60cm | 250-300lx | 60-80lx | 25-35lx |
| 90cm | 360-400lx | 90-110lx | 40-50lx | |
| 120cm | 550-600lx | 130-150lx | 60-70lx | |
| 150cm | 650-720lx | 150-180lx | 70-80lx | |
| 240cm | 760-870lx | 170-210lx | 85-95lx |

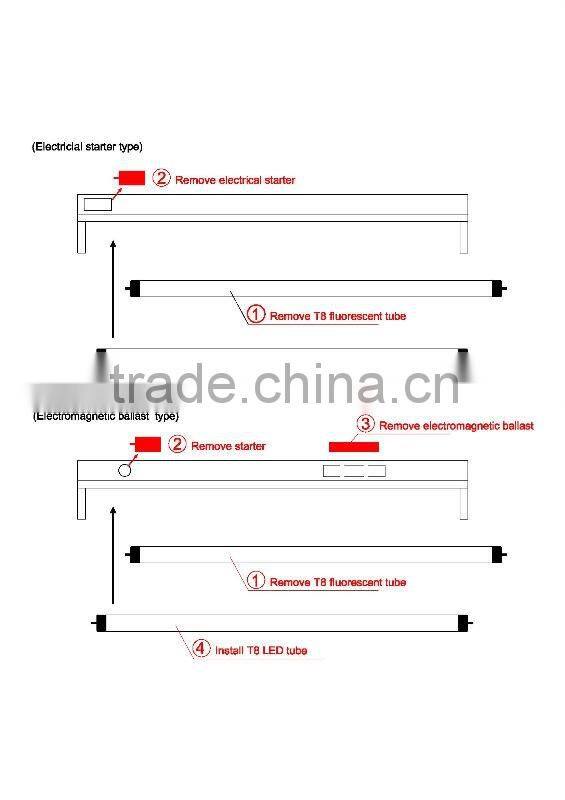

Installation diagram:
1)T8 LED tube light installation for replacing traditional fluorescent lamp
2)The T8 LED tube work under the right voltage according to the specification
Package :
1. Adopt imported high-grade environmental friendly thick card as packaging material;
2. Professional box lined design, the T8 LED tubes are well protected in transit
NOTE :
1,When install LED T8 tube, try to avoid the minefields, strong magnetic field and high-pressure region.
2,Ensure a solid connection correctly in order to avoid short-circuit damage to components and trigger fires.
3,Install LED tubes in a well-ventilated place to ensure appropriate environmental temperature.
4,Using T8 led tube, please check the local voltage compliance with product requirements.
5,To prohibit the live wiring, do check and confirm wiring is correct and no short-circuit then power on.
6,In case of failures, do not maintain in private.
