Waterproof IP65 Side View Led Set Strip Packed in Blister

Waterproof IP65 Side View Led Set Strip Packed in Blister thumbnail-1
Waterproof IP65 Side View Led Set Strip Packed in Blister photo-1
US$ 20.12 - 25.58 MOQ: 200 Sets
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
OEM ODM Optosun
Model Number:
side view led set strip OS-1208-335G-60
Contact Supplier Request Quote Chat Now
Shenzhen Optosun LED Technology Company Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name OEM ODM Optosun
Model Number side view led set strip OS-1208-335G-60
Length 5 meters/roll
Rated Power ≤4.8W/M
Holiday Name Christmas
Voltage Other, DC12V

side view led set strip packed in blister

Specifications:

 Item

 Parameter

 Model

OS-1208-335G-60

 Power

≤4.8W/M

 Input Voltage

 DC12V

 LED Source

Super bright 335 side view SMD LEDs

 LED quantity

60 LEDs /meter

 Color

Green

 Beam Angle

120°

 Working Environment

Working temperature:-40°C~+55°C

Working humidity:10%-90%

 Led  Life

>50,000 hours

 Warranty

2 years

 Certificates

CE/RoHS
Dimmensions 5000*8*2mm
Packing

Packed in blister

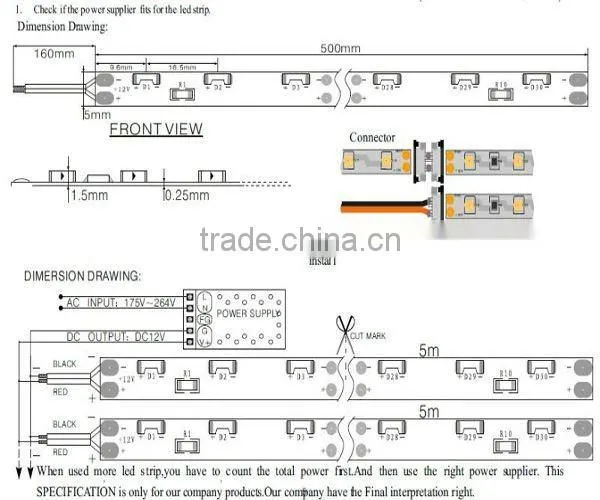

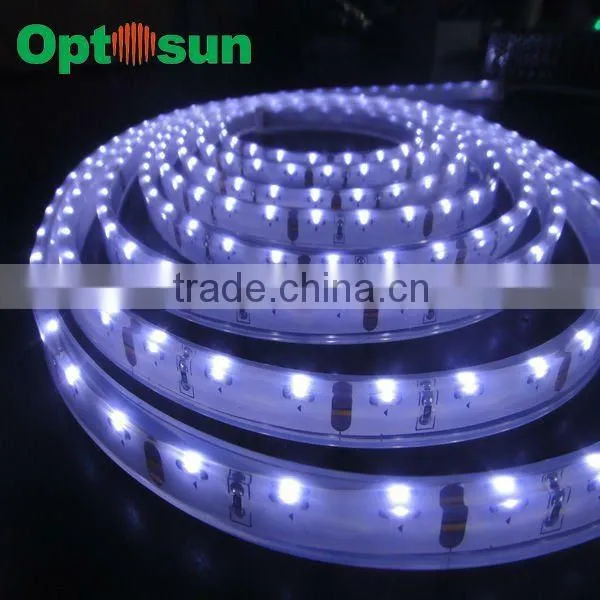

Details of side view led set strip:

Waterproof IP65 side view led set strip packed in blisterWaterproof IP65 side view led set strip packed in blister



Waterproof IP65 side view led set strip packed in blister



CCT/Wavelength of side view led set strip:

White Warm white Blue Pink Purple Yellow Red Green
5500-6500K 3000-3500K 465-470nm 420-430nm 370-410nm 515-525nm 620-625nm 585-595nm



More side view 335 strip:

Item Voltage LED QTY Waterproof grade Width of FPC Light direction
OS-NS12-335-xx DC12V 30leds or 60leds IP44 5mm or 8mm Side view
OS-WS12-335-xx DC12V 30leds or 60leds IP65 5mm or 8mm Side view
OS-TS12-335-xx DC12V 30leds or 60leds IP68 5mm or 8mm Side view

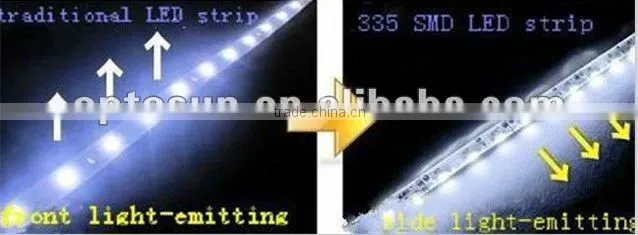

Advantages of side view led set strip:
1. Using self-produced335SMDsensuring realiable quality and competitive price;

 Red: 200-610mcd                                      Yellow: 170-400mcd
Blue: 110-250mcd                                      Green: 500-700mcd

Warm white: 3000-3500K  320lm           White: 5500-6500K 350lm

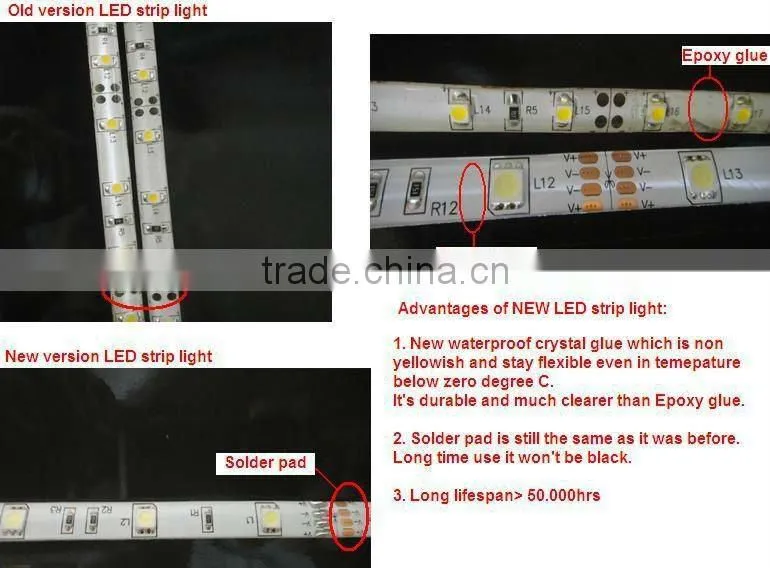

2. Using new waterproof crystal glue which is non yellowish and stay flexible even in temepature below zero degree C.

3. Long lifespan, low maintenance cost, energy-saving and environmentally friendly;

4. Anti-UV, NO IR, especially applicable to radiation sensitive objects;

5. The flexible led strip light is a kind of low-voltage product, 12V LED stripe and 24V LED strip are available, which can be widely used over the world and it is a good background decorative light products.

6.DIY available.

7.White/Yellow color of FPC are available.

8.5mm width or 8mm width of  side view 335  strip are available.

9.Stable UL power supply is much better than others.

10.Strips are can be cut by 3leds.

11.Our SMDs are adept at using ASM Auto Die Bonder, Wire Bonder and Japanese Silicon Glue Machine etc

12.The LED chips used are well-know brand to ensure quality, and we have various types of SMDs for your selection, such as SMD335, SMD3014, SMD3020, SMD3528, SMD5050, SMD5630 etc.

13. Chips are set on the FPC base so the heat can be spread from the base quickly.
This can extend the lifespan of LEDs and reach 50,000hrs.

14.2 years warranty with CE RoHS Approval.

15.UL class 2 listed power supply 24W, dimmer of 24W max.

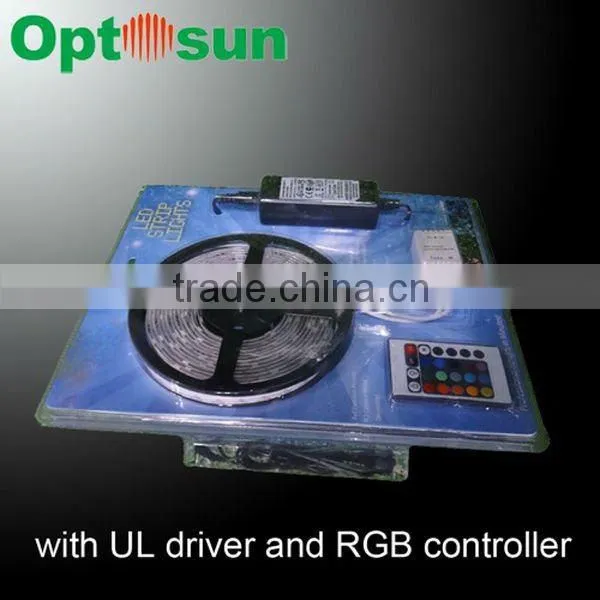

Waterproof IP65 side view led set strip packed in blister

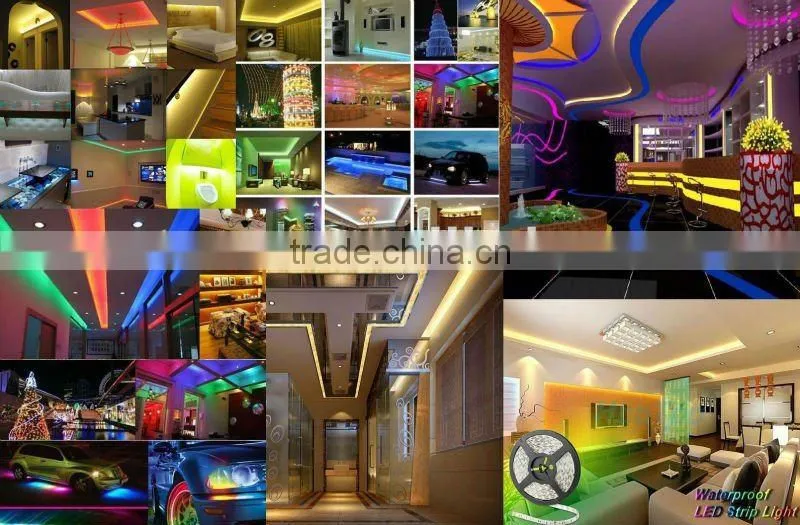

Applications of side view led set strip:

Waterproof IP65 side view led set strip packed in blister

Waterproof IP65 side view led set strip packed in blister



Relate products:

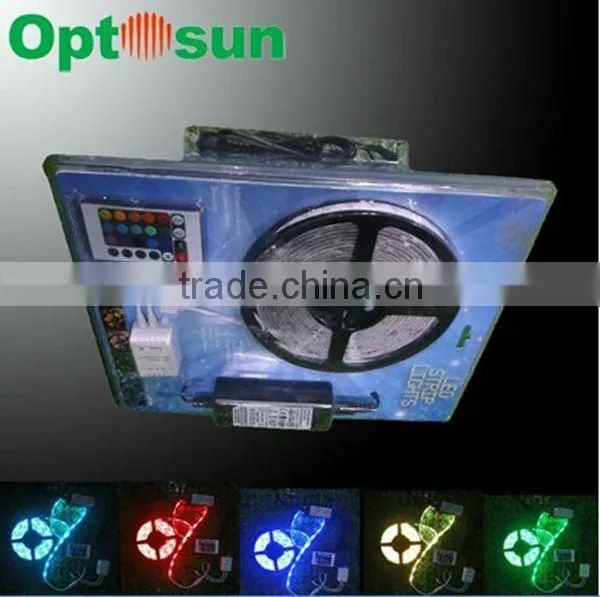

Waterproof IP65 side view led set strip packed in blister

Waterproof IP65 side view led set strip packed in blister

Waterproof IP65 side view led set strip packed in blisterWaterproof IP65 side view led set strip packed in blister



Our main products:

Waterproof IP65 side view led set strip packed in blister

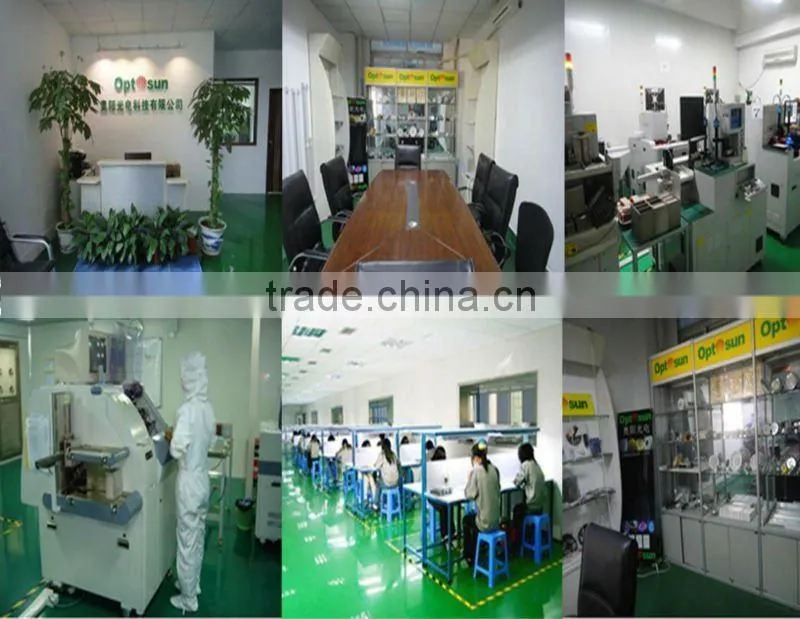

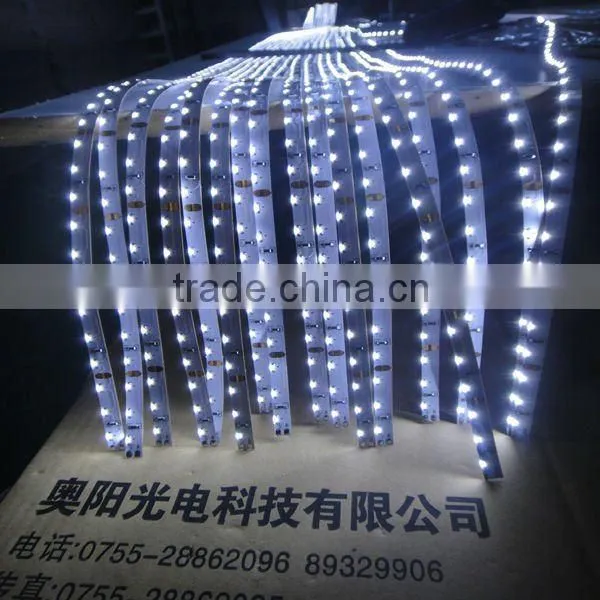

Our factory:

Waterproof IP65 side view led set strip packed in blister

Our service:

1. Your inquiry would be replied in within 24 hours.

2. Your special requirements of side view led set strip can be accepted.

3. Reasonable price would be provided by your order qty.

4. 5 years experience of production will always provide you pretty competitive price and superior goods.

5. 10 years experience engineers would be provided you helpful free technical.

6. 1300-square-meter factory can output at least 50KK SMD LEDs and 70K LED lighting monthly, To effect delivery smoothly.

7. Reasonable shipping cost are quoted under your requests.
