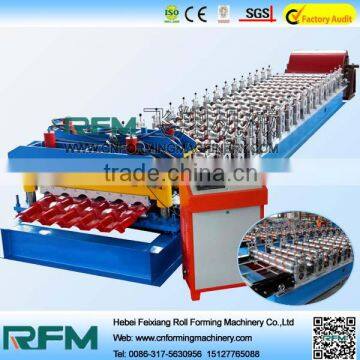

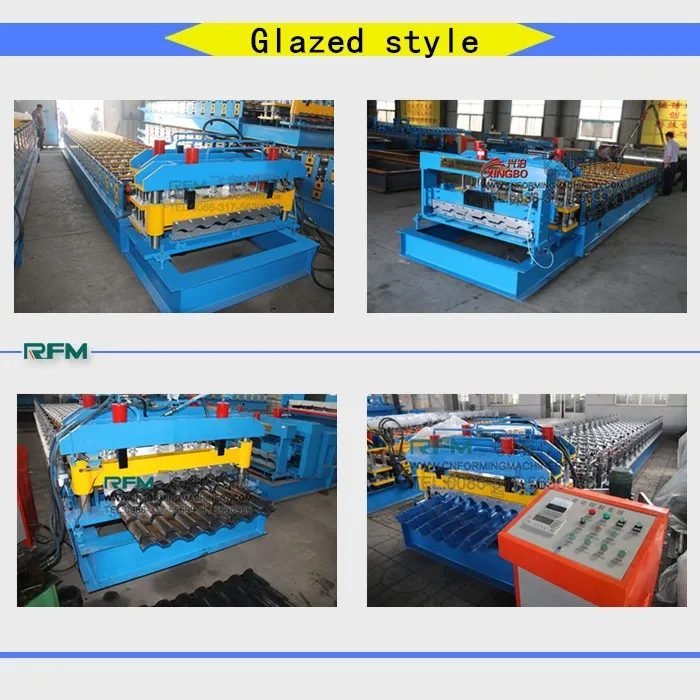

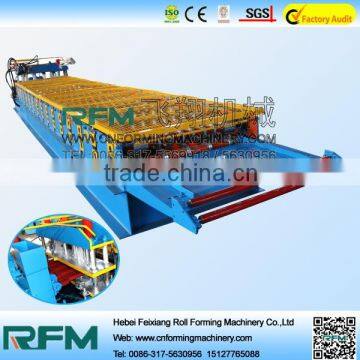

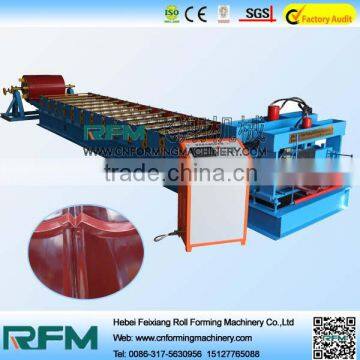

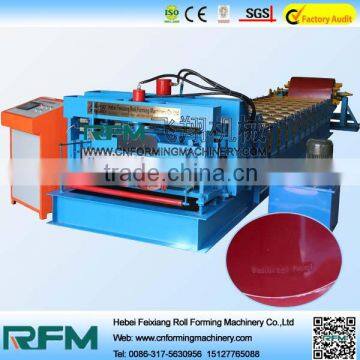

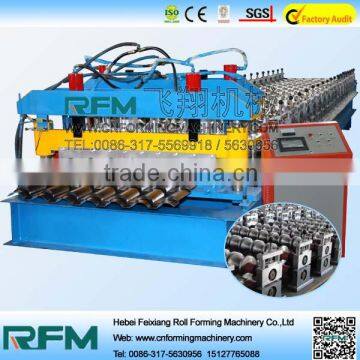

Glazed Tile Forming Machine, Glazed Tiles Roof Cold Roll Forming Machine

      Glazed tile forming machine,glazed tiles roof cold roll forming machine

1.The chart of process flow:

glazed tiles roof cold roll forming machine

  Decoiling--active feeding---forming---measuring length---cutting---product to stand

2.Main equipment:

glazed tiles roof cold roll forming machine

Decoiler,main forming machine,hydraulic cutting,electric system(plc),hydraulic system,product stand.

3.Technical parameters of  glazed tiles roof cold roll forming machine

1)Profile    thickness:0.3--1.2mm      2)inner tight decoiler

il inner diameter:450mm--550mm

B.max width of coiling:1250mm

C.max weight of loading:5000kg

D.Voltage:380v,50hz

E.Roller station:15

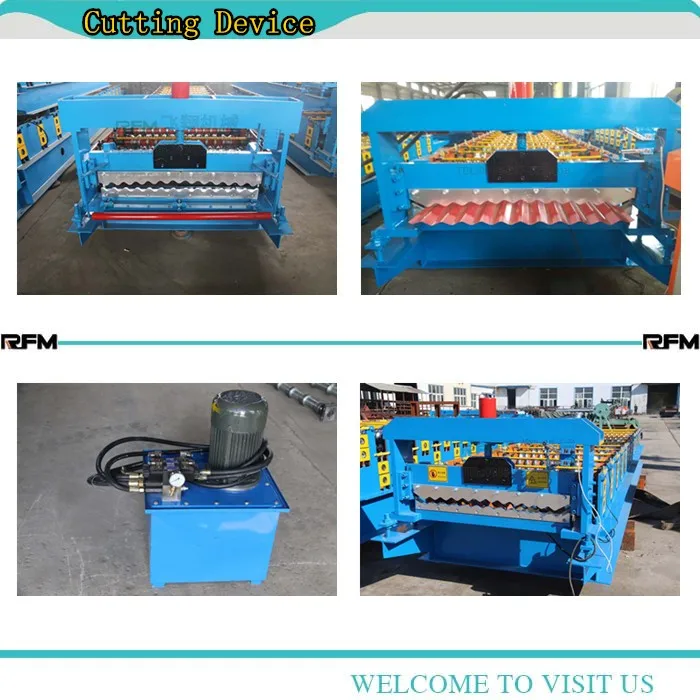

4.cutting system

A.hydraulic cutter

B.Blade and mould material:Cr12 steel with quenched treated 60-62°

C.Cutting system advanced hydraulic drive,after automatic cutting after forming,and  no noise and waste

ntrol system

A.PLC: 3.2inch screen Taida form Taiwan

B.Coder: from south korea

 6.hydraulic system

A.advanced hydraulic system from taiwan
B.Main Power:3KW

7.Product stand:

Our assessment and customers,

8. Payment  terms of Automatic roll making machine  :

30% by T/T in advance, 70% by T/T after you check and inspect the machine
