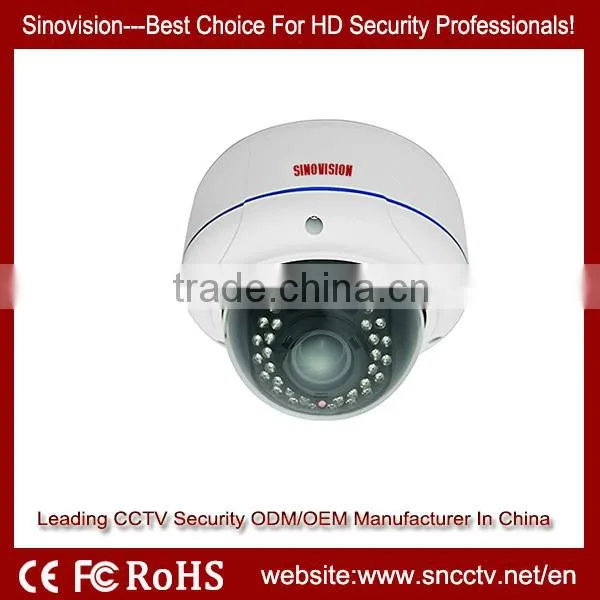

HD 1080P Vandalproof Dome HD-SDI Camera 2 Megapixel SN-D4022

Name: HD 1080P Vandalproof Dome HD-SDI Camera 2 Megapixel SN-D4022
Brand: SINOVISON
SKU: 123474697
Availability: InStock

US$ 65 - 130 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

SINOVISON

Model Number:

SN-D4022

Sinovision Technology (Shenzhen) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen HK

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name SINOVISON

Model Number SN-D4022

Type Digital Camera

Style Bullet Camera

Sensor CMOS

Technology NetWork

Special Features Vandal-proof

Specifications

HD 1080P Vandalproof dome HD-SDI Camera 2 Megapixel
1. HD 1080P dome HD-SDI camera
2. HD-SDI 2 Megapixel camera

HD 1080P Vandalproof dome HD-SDI Camera 2 Megapixel SN-D4022

Feature:

HD SDI camera

Adopt 2 Mega pixel 1/2.8" progressive scan CMOS , HD-SDI&BNC Dual Video output,

Support 1920*1080/ 1280*720

WDR function, 3D Digital Noise Reduction

3.6mm MP lens/ 2.8-12mm varifocal 2MP lens ,5X30PCS IR LED , 30m IR Distance

Specification

Model	SN-DQ-D4022P
Image Sensor	1/2.8"2 Megapixel CMOS sensor
Min. Illumination	0.002 lux/F=1.2(AGC ON)
S/N Ratio	>50dB(AGC OFF)
HD Video Output Interface	HD-SDI
HD Output Resolution	1920x1080 /2 Megapixel /1080P
HD Video Output	1080p 50/60fps
HD Output Connector	BNC-F
Output	HD-SDI,CVBS
Electronic Shutter	1/60(1/50)~1/8000
Lens	2.8-12mm MP lens
IR LED	5X30PCS IR LED
IR distance	30M
Day/Night	Dual filter switching(IR-CUT)
Back Light Compensation	ON/OFF
Auto Gain Control	High/Medium/Low/Off
Wide Dynamic Range	Advanced WDR performance can reach 120bD
Digital Noise Reduction	3D digital noise reduction
White Balance	Auto/One Push/Manual /Indoor/Outdoor
Gamma Correction	0.45,(0.05~1.00 adjustable)
Aperture Control	Auto,-2.0EV~2.0EV
On Screen Display	Supports(Controlled by 5 buttons on the rear panel)
Day/Night	Supports (Auto IR Filter)
Motion Detection	On/Off
Digital Zoom	Supports X1-X4
Privacy Masking	Supports 32 masks
Mirror	On/Off
Input Power Supply	12VDC
Power Dissipation	12VDC
Working Environment	-10°C~50°C (Humidity:20%~80%)
