Home > Lights & Lighting > LED Lighting Decoration > LED String Light > 5M Flexible Led Smd 335

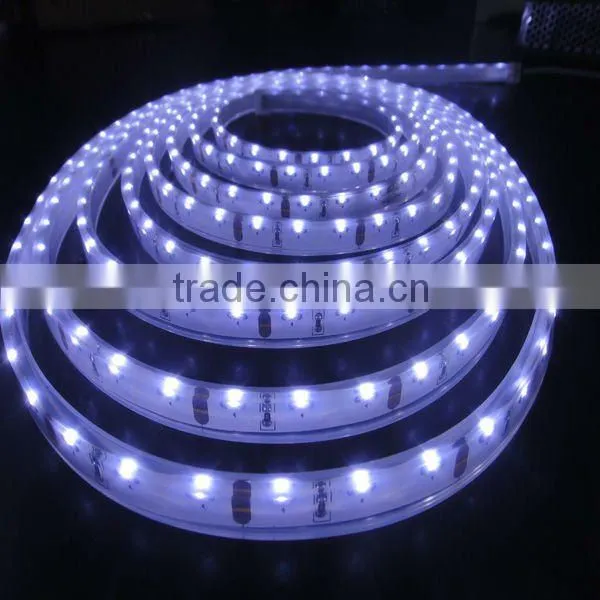

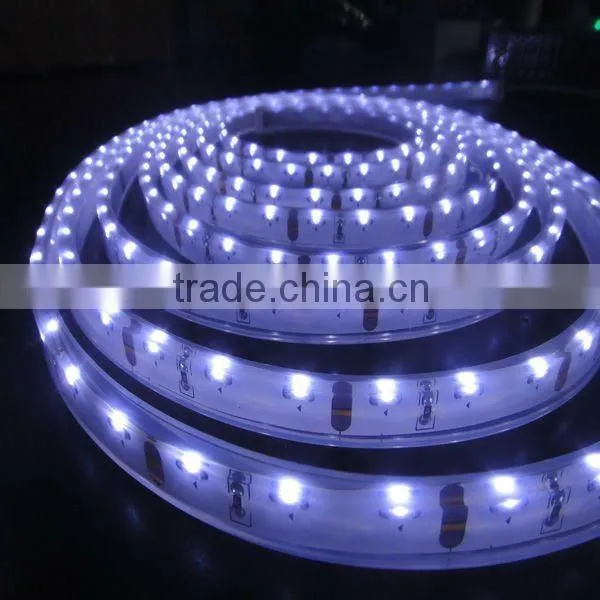

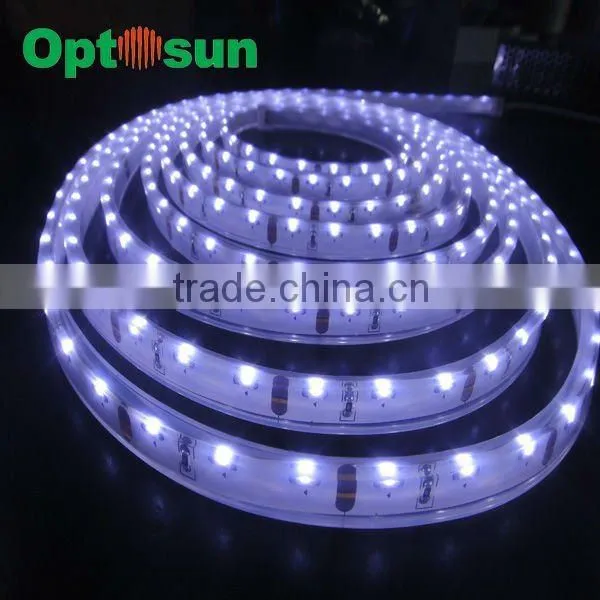

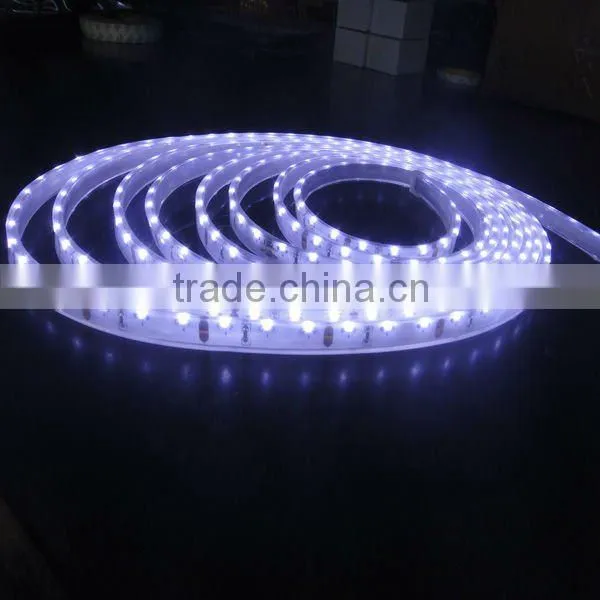

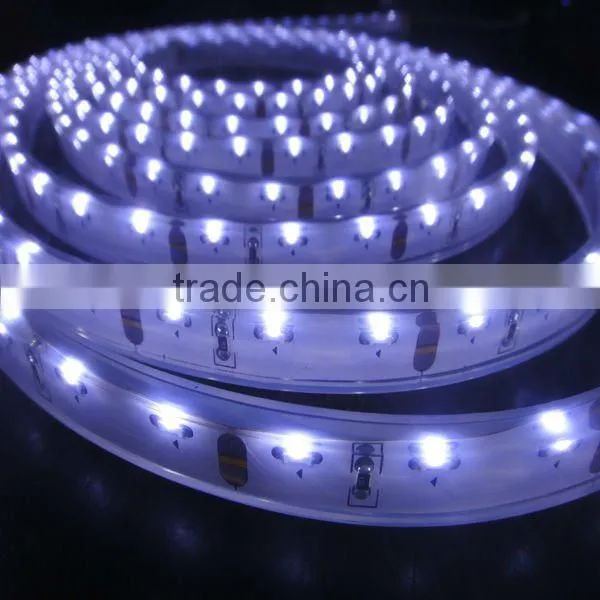

5M Flexible Led Smd 335

Name: 5M Flexible Led Smd 335
Brand: OEM ODM Optosun
SKU: 123472497
Availability: InStock

US$ 3.79 - 5.58 MOQ: 500 Meters

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

OEM ODM Optosun

Model Number:

led smd 335 OS-TS1205-335CW-60

Contact Supplier Request Quote Chat Now

Shenzhen Optosun LED Technology Company Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name OEM ODM Optosun

Model Number led smd 335 OS-TS1205-335CW-60

Length 5 meters/roll

Rated Power ≤4.8W/M

Holiday Name Christmas

Voltage Other, DC12V

Specifications

led smd 335
1.Factory direct sale
2.Flexible led smd 335
3.Waterproof IP67 60leds
4.CE RoHS Approval

led smd 335

Specifications:

Item	Parameter
Model	OS-TS1205-335CW-60
Power	≤4.8W/M
Input Voltage	DC12V
LED Source	Super bright led smd 335 side view
LED quantity	60 LEDs /meter
Color	White
Beam Angle	120°
Working Environment	Working temperature:-40°C~+55°C
Working Environment	Working humidity:10%-90%
Led Life	>50,000 hours
Warranty	2 years
Certificates	CE/RoHS

Dimmensions

5000*8*2mm

Packing details of 5M flexible led smd 335:

Details of 5M flexible led smd 335:

CCT/Wavelength of 5M flexible led smd 335:

White	Warm white	Blue	Pink	Purple	Yellow	Red	Green
5500-6500K	3000-3500K	465-470nm	420-430nm	370-410nm	515-525nm	620-625nm	585-595nm

More 5M flexible led smd 335:

Item	Voltage	LED QTY	Waterproof grade	Width of FPC	Light direction
OS-NS12-335-xx	DC12V	30leds or 60leds	IP44	5mm or 8mm	Side view
OS-WS12-335-xx	DC12V	30leds or 60leds	IP65	5mm or 8mm	Side view
OS-TS12-335-xx	DC12V	30leds or 60leds	IP68	5mm or 8mm	Side view

Advantages of 335 led strips:
1. Using self-produced335SMDsensuring realiable quality and competitive price;

Red: 200-610mcd Yellow: 170-400mcd
Blue: 110-250mcd Green: 500-700mcd

Warm white: 3000-3500K 320lm White: 5500-6500K 350lm
2. Using new waterproof crystal glue which is non yellowish and stay flexible even in temepature below zero degree C.

3. Long lifespan, low maintenance cost, energy-saving and environmentally friendly;

4. Anti-UV, NO IR, especially applicable to radiation sensitive objects;

5. The flexible led strip light is a kind of low-voltage product, 12V LED stripe and 24V LED strip are available, which can be widely used over the world and it is a good background decorative light products.

6.DIY available.

7.White/Yellow color of FPC are available.

8.5mm width or 8mm width of 335 led strip are available.

9.Stable UL power supply is much better than others.

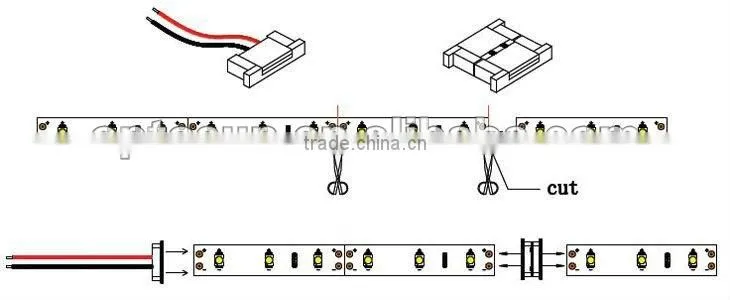

10.Strips are can be cut by 3leds.

11.Our SMDs are adept at using ASM Auto Die Bonder, Wire Bonder and Japanese Silicon Glue Machine etc

12.The LED chips used are well-know brand to ensure quality, and we have various types of SMDs for your selection, such as SMD335, SMD3014, SMD3020, SMD3528, SMD5050, SMD5630 etc.

13. Chips are set on the FPC base so the heat can be spread from the base quickly.
This can extend the lifespan of LEDs and reach 50,000hrs.

14.2 years warranty with CE RoHS Approval.

Applications of 5M flexible led smd 335:

Relate products:

For Optosun:

*100 workers;

*2500 square meter factory;

*6 years experience;

*3 years vendor of Wal-mart,ISO,CE RoHS certificated.
*One hour reach to HongKong and Shenzhen port, This is how we keep quality and competitives price for global valued customers
