Specifications
rgb led strip1.OEM ODM are acceptable
2.IP67 5V 32IC ws2801
3.Short lead time
4.CE RoHS Approval
addressable rgb led strip ws2801 for decoration
Specifications:
Item |
Parameter |
Model |
OS-TS510RGB-32-01 |
Power |
7.2W/meter |
Input Voltage |
DC5V |
LED Source |
5050SMD LEDs |
LED quantity |
32 LEDs /meter |
Work current |
540-600mA |
Color |
RGB |
Beam Angle |
120° |
Working Environment |
Working temperature:-40°C~+55°C |
Working humidity:10%-90% | |
Led Life |
>50,000 hours |
Size |
W:10mm*P:2mm*L:5,000mm |
Warranty |
2 years |
Certificates |
CE/RoHS/EMC/SAA/ETL/UL |
Advantages of rgb led strip:
1. Using self-produced 5050SMDs ensuring realiable quality and competitive price;
Green: 515-525nm(Single LED Intensity:1800-2200mcd 12*13mil Chip Size)
Red: 620-625nm(Single LED Intensity:600-800mcd 10/11/12mil Chip Size)
Blue: 465-470nm(Single LED Intensity:300-500mcd 12*13mil Chip Size)
2. Using new waterproof glue which is non yellowish and stay flexible even in temepature below zero degree C;
3. Long lifespan, low maintenance cost, energy-saving and environmentally friendly;
4. Anti-UV, NO IR, especially applicable to radiation sensitive objects;
5. Strips can be cut by every 3leds. DIY function;
6. Reliable quality with 2 years warranty;
7.Dimmable function is available;
8.Multi-color remote controller or DMX controller are available;
9.Super brightness. Luminous flux of each led: 18-20lm;
10.Use IC ws2801 to make each LEDs could light different color. even keep the voltage ad current are stable.
Applications of rgb led strip:

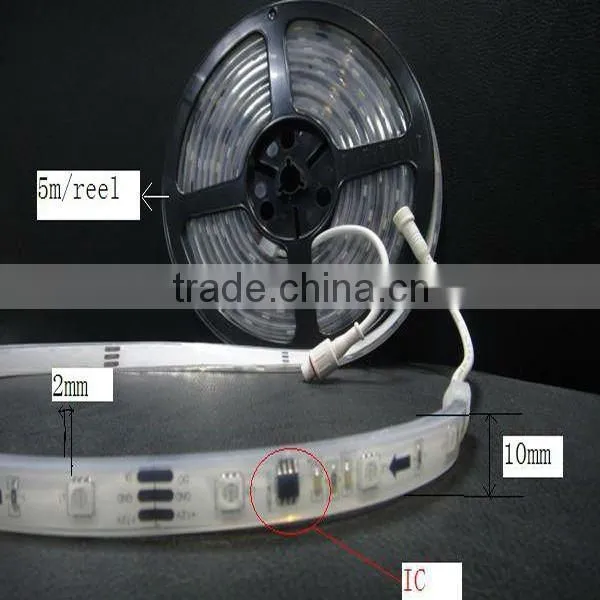

Details of rgb led strip:
Package of rgb led strip:
Related products:
For Optosun:
100 workers;
2500 square meter factory;
6 years experience;
3 years vendor of Wal-mart,ISO,CE RoHS certificated.
One hour reach to HongKong, This is how we keep quality and competitives price for global valued customers.
