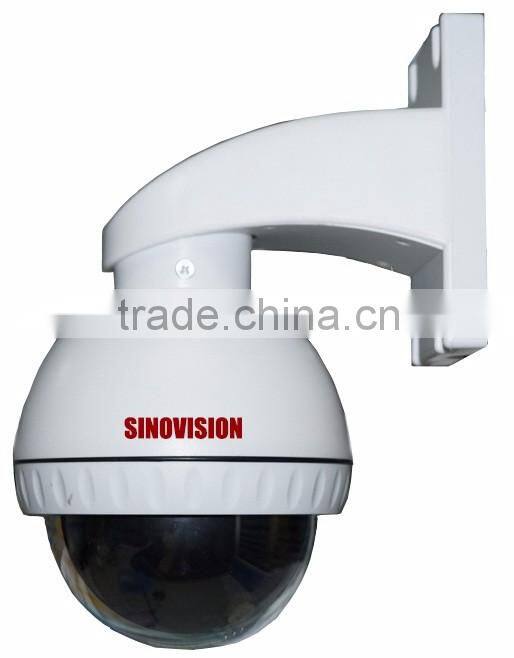

SINOVISION Mini Speed Dome Camera 10X zoom lens PTZ camera
-1/3" SONY SUPER HAD CCD,960H Resolution.
-Fixed 6.0mm Lens
-360° continuously rotation, tilt range up to 90°, with auto flip.
-Support 128 preset positions and 6 scanning route.
-Support multi-protocol with RS485.
Specifications of SINOVISION Mini Speed DOME CAMERA :
Model |
MPT05 |
Mechanical | |
|
Preset : 360°/sec |
Pan/Tilt Speed |
Manual:0.05~360°/sec (proportional to zoom) |
|
Auto Pan : 1~180°/sec |
Pan/Tilt Range |
Pan :0~360°(Continuous) |
Tilt: 0~180° | |
Preset |
128 presets |
Other Functions |
Auto Flip, Auto Parking, Power up Action etc. |
Operation | |
OSD Menu |
English |
Communication |
RS485 |
Baud Rate |
2400bps,4800bps,9600bps |
Protocol |
Pelco-P/D, Special protocols available |
General | |
Power Supply |
DC12V2A |
Work Temperature |
-10°C~+50°C |
Work Humidity |
Max 90% |
Help Selection |
Ceiling/Wall mounting/Hoisting |
Camera | |
CCD Sensor |
1/3”SONY SUPER HAD CCD |
Horizontal Resolution |
960H High Resolution |
Max Pixels |
PAL:795(H) x508(V) NTSC:811(H)x508(V) |
S/N Ratio |
52dB(AGC off) |
Zoom |
10X Zoom lens, 6mm fixed lens,3X zoom lens optional |
Min. Illumination |
0.7Lux (Color),0.02Lux(B/W), F1.8, 50 IRE |
White Balance |
Auto |
Shutter Speed |
1/50~1/120000sec |
What kinds of service Sinovision can offer?
1, Any inquiries will be replied within 24 hours;
2, Rich OEM/ODM Experience:
Silk print LOGO on Camera;
Customized camera housing;
Customized color packing box;
Any of your idea on camera, we will help you design and put it into production
3, Reliable quality, fashion design, reasonable/competitive price:
All products with 7-step strictly quality checked in house before packing;
All products will be well packed before shipping;
Two Years Warranty for CCTV Cameras and one year for the DVRs after shipment, plus free maintainance within warranty period.
4,Fast delivery:
No MOQ, sample order in stock, 3-5 days for bulk production
5, Payment:
T/T, Western Union, Paypal,negotiable payment terms.
6, Shipping:
More than 50% discount on shipping cost by DHL, UPS, TNT, and Fedex etc.
All ou products are CE, FCC certified, and also compliant with the RoHS Directives.
Sinovision Development Co., Ltd.
Sinoivision,one of the most professional manufacturers in security industry in Shenzhen, China, provides comprehensive services that cover R&D, producing, marketing and after sales service. Our full range of various products including Analog CCTV Camera,HD TVI/DVI/AHD Camera, Speed Dome Camera, DVR and HD IP Cameras, meet customers' demands in both domestic and overseas markets, and built in an excellent reputation in the world.
We have a specialized R&D team and the high quality terminal production equipments. Our R&D team are constantly devoted to improve existing products and develop new products in order to provide our global customers with top-quality products, they accumulated a wealth of experience in the CCTV and IT industries after these years’ development.
We insist strictly inspection in process, and always consider about its lifetime, safety, heat-resistant to make them reliable. Our 25 QC staffs are assigned to each production line. The complete quality control system consists of 12 procedures including raw materials test, vibrating test, voltage test, semi-finished products inspection, 40C for 48-hour aging test, waterproof test and finished product inspection, etc. So you can rest assured your cameras will have the quality you demand.
All our products are CE, FCC certified, and also compliant with the RoHS Directives.
“Your Safety, Our Concern” is all that we work for, and it is our honor to provide excellent service and quality products to meet your requirements.
Contact us today!! Sincerely looking forward to building a mutually beneficial business relationship with you.
Each year Sinovision will go to different countries for exhibitions.
Let's meet in Russia, Mexico, United Kindom, Turky in 2006!
