dimmable led panel downlight

Specifications

led panel downlight
1.5%-100% Dimmable
2.Replacing 35/50W Halogen Downlight
3.5 years warranty
4.COB LED

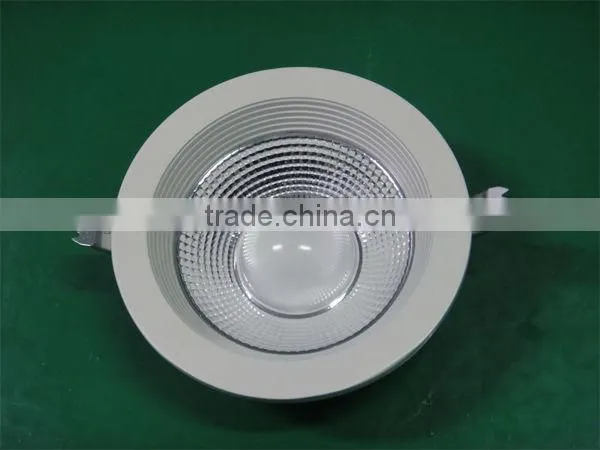

Dimmable led panel downlight



Specifications:

Model	OS-C92SF12-WW	Beam angle	80°
Power	10W	Material	Alu+PC
LED Source	COB LED	Waterproof Grade	IP33
LED Chip Size	40*40mil	Working temp	-35°C-65°C
Input voltage	AC85-265V	working humidity	<95%
Power factor	>0.92	Lifespan(LED)	50000hrs
Driver efficiency	80%	Warranty	5 years
Driver type	UL driver	Packing	L127*W77*H127*(mm)
Light efficiency	82 lm / W	GW	0.64kg
Lumilosity	820lm	NW	0.60kg
Color temp	3000-6500K	Packing size	L248*W400*H400(mm)(2pcs/ctn)
CRI	Ra>82	Packing weight	18.3kg(2pcs/ctn)

1.Using light emitting from sides way and guide light plate, making light effective and harmogeneous;

2.Proprietary design for excellent thermal management with aluminum housing;

3.Easy installation and maintenance free, plug in to use,

4.Smd2323 Samsung leds as llight sources, long life span(>50,000hours)

5.Solid-state, high shock hibration resistant;
6..Beautiful appearance, High brightness output;
7. Adjustable beam angle;
8.Special different view angles mixing lighting design;
9.Green Product, No ultraviolet and infrared radiation, very short start time;
10.High luminance efficiency by using super bright  LED, 90% of electricity can transform into visible light. Compared with the traditional high- pressure sodium lamp,  LED lamp can save more than 80%.
11.Excellent color rendering CRI>82

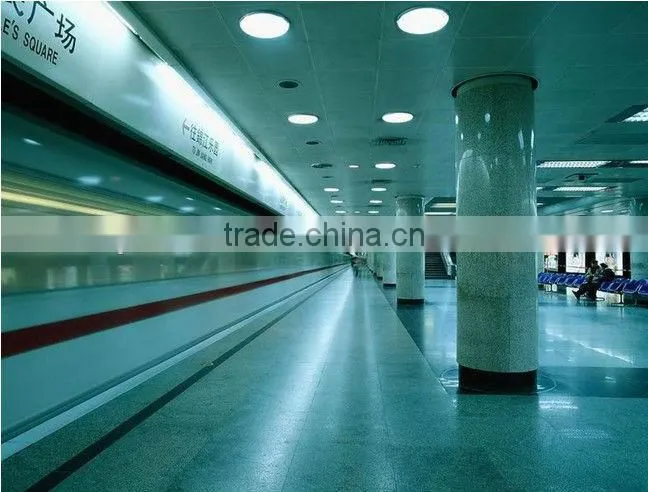

Applications:
Office, Hospital, School, Factory, Shopping Mail, Supermarket, Household lighting, Parking Lot,etc.

This light can be used in any places where need energy-saving and pro- environment lights
