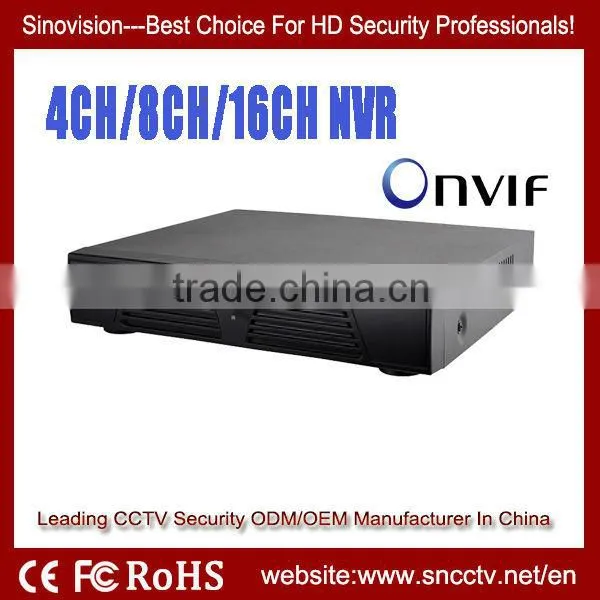

SHENZHEN Factory ONVIF 4/8/16CH 1080P P2P IP NVR

Name: SHENZHEN Factory ONVIF 4/8/16CH 1080P P2P IP NVR
Brand: Sinovision
SKU: 123470645
Availability: InStock

US$ 36.5 - 38 MOQ: 1 Unit

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Sinovision

Model Number:

SN-NVR-1002P

Sinovision Technology (Shenzhen) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

FOB Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Sinovision

Model Number SN-NVR-1002P

Specifications

With HDMI, Support 1080P high-definition (1920 * 1080P)
Support ONVIF/P2P Technology

SHENZHEN Factory ONVIF 4/8/16CH 1080P P2P IP NVR

Feature:

With H.264 High efficiency Video Compression
With unique time screen in front of the panel, and displays recorder.
Support Windows Mobile, Iphone, Android,, Blackberry and so on.
Support 1*HDD( 3TB), with 2*USB2.0 for backup, burning, upgrading operation
Stronger network service. support IE browse and CMS software
With HDMI, Support 1080P high-definition (1920 * 1080P)
With ONVIF protocol, can connect the ONVIF IP camera directly, also can by IE and CMS.
Support P2P cloud functions

Specification:

	Model	SN-NVR-1002P	SN-NVR1004P	SN-NVR1008P	SN-NVR1016P
System	Main processor	Hi3520D chip	Hi3515A	Hi3520D	Hi3535
	Screen display	1/4	1/4	1/4/8/9	1/4/8/9/16
Video	Video standar	PAL(625TVL,50Fields / sec. ;NTSC(525TVL,60Fields / sec. )
	Video quality	Monitor :D1;VGA: HD;HDMI:HD
	Coding capacity	1080P/720P/960H/D1/HD1/CIF/QCIF
	Digital input	*21080P/ 4720P*	*4960P**	*81080P**	*16720P**
	Motion Detection	Each screen can be set to 192 (16 × 12) detection area; multi-level sensitivity can be set
Video playback	Video mode	Manual> Alarm> Motion detection> timing
	Local Playback	1ch	1ch	1ch	4ch
	Video inquiry	Point-in-time retrieval, calendar search, event search, channel search
Storage backup	Space	CIF: 5G / day / channel D1: 20G / day / channel 720P: 40G / day /channel 1080P: 80 G/ day/channel
	Video save	HDD. Network
	Backup mode	Network backup,USB mobile HDD,USB Burner,DVD CD burning
Interface	Video input	No
	Video output	1ch BNC output,1ch SPOT output,1ch VGA output,1ch HDMI output(*19201080P**)
	Audio input	1ch RCA
	Audio output	1ch RCA audio output
	Alarm input	NO
	Alarm output	NO
	Network interface	RJ45 10M/100M/1000M
	PTZ control	One RS485 ptz control interface
	USB interface	2*USB interface
	HDD	1 SATA (3TB)
Others	Power supply	12v/2a	12v/2a	12v/2a	12v/2.5a
	Size	390(width)x30(deepth)x100(hight)mm
	Weight	2kg(not including HDD)
