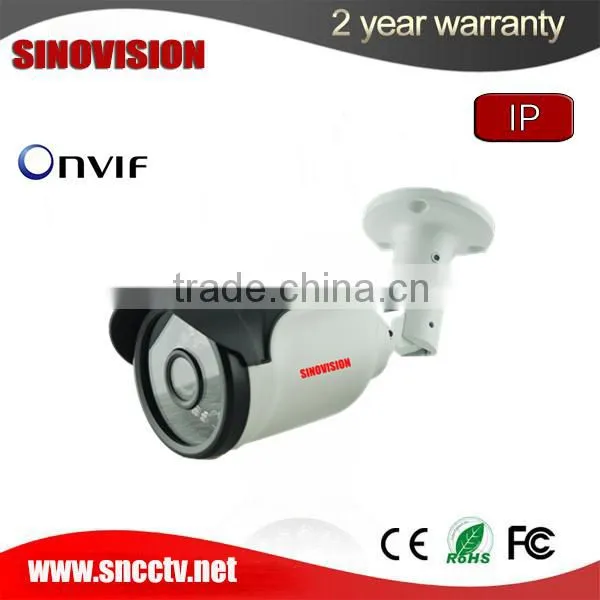

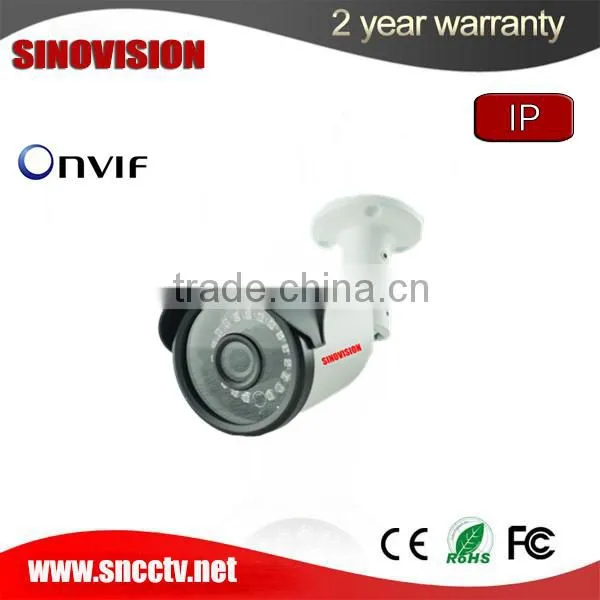

p2p onvif IP network new model cctv camera
Feature
*H.265.H.264 main profile compression, achieve low bit-rate, high definition image quality
*Support dual stream
*Multi-brand NVR compatible
*POE optional
*Support IR-CUT filter switch to achieve day and night monitoring
*IP66 rating
*18PCS SMD IR LED,30Meter IR Range
*3.6/6mm Megapixel Fixed Lens
Specification
| Model | SN-IPCH10/13/20/40/50-W1002S |
| Camera Type | IP Network Fixed lens Bullet Camera |
| Camera | |
| Image Sensor | 1.0/1.3/2.0/4.0/5.0 megapixels Progressive CMOS |
| Effective Pixel | 1280(H)X720(V) / 1280(H)X960(V) / 1920(H)X1080(V) / 2592(H)X1520(V) / 2560(H)X1920(V) |
| Min illumination |
Color:0.01Lux @(F1.2,AGC ON),0 LUX with IR B/W:0.01Lux @ (F1.2,AGC ON),0 LUX with IR |
| Electronic shutter | 1/50(1/60)s - 1/100,000 s |
| Scanning System | Progressive |
| Electronic Shutter | Auto (1/25 ~ 1/100000s) |
| S/N Ratio | ≥50db(AGC OFF) |
| IR-Cut | Support |
| Day/Night | Auto(ICR)/Color/B/W |
| WDR | Digital WDR |
| White Balance | Auto |
| Gain Control | Auto |
| Noise Reduction | 3D-DNR |
| Lens | 3.6/6mm Megapixel Fixed Lens |
| IR-LED | 36PCS IR LED |
| IR Distance | 30Meter IR Range |
| Protection Range | IP66 |
| Video/Audio | |
| Video compression | H.265.H.264 Main Profile, JPEG capture |
| Video Bite Rate | 100Kbps~6Mbps |
| Audio | Support(Optional) |
| Image | |
| Frame Rate | 50Hz:25fps, 60HZ:30fps |
| Image settings | Saturation, Brightness, Contrast adjustable through Client software or web server |
| Network Function | |
| Storage | NVR WITH HDD |
| Intelligent Alarm |
Motion detect, video loss ,network disconnection, IP address conflict, storage full, storage error |
| Protocol | TCP/IP,HTTP,DHCP,DNS,DDNS, PPPoE, SMTP,NTP |
| Basic | Anti-flicker, dual stream, heartbeat, password protection |
| Interface | |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet interface |
| Video output | 1Vp-p Composite OutpuT |
| General | |
| Working Environment | .-20°C~+55°C , Less than 90% RH Dimensions |
| Power supply | DC12V±10% |
| Power consumption | 6W MAX; |
| POE | POE IEEE 802.3af (Optional) |
How can I get some samples?
We are honored to offer you samples.But free sample is not available to new scustomer,when you become our VIP,you will have this privilege.
What's your MOQ?
No MOQ for any sample,at least 50pcs/model after sample order.
Is OEM,ODM service available?
Yes,we providevariety OEM Services,like printing logo,Label,Packing box,when reach 50pcs/Mode. ODM will be based on the quantity.
Payment:
1.Price Terms:EXW,FOB SHENZHEN(Shipping cost are quoted under your requirement)
2.Payment terms:L/C,T/T(USD/RMB).Western union.Paypal etc.
Delivery Time:
Sample order,3-7days after payment cleared;Bulk order,7-14 days after payment cleared.(Working days upon receipt of deposit)
Warranty:
1.Warranty: 18 Month for DVR & NVR ;24 Months for Cameras;
2.The warranty starts from the delivery date from our factory;
3.During the warranty,any defective products can get repaired or replaced for free;
4.The warranty is unavailable for those products which are broken by the violence,the carelessness,
repaired or altered without the authorization.
5.Provide 7*24h services.
