Home > Products > Colored steel tile forming machine > Roof panel machine corrugated sheet making machine
Roof panel machine corrugated sheet making machine
- 6 Set / Sets per Month
- delivery from any port
- T/T
Product Details
Condition: | New | Type: | Other, Tile Forming Machine, Roof panel machine corrugated sheet making machine | Tile Type: | Steel |
Use: | Roof | Production Capacity: | 8-15m/min | Place of Origin: | Hebei, China |
Brand Name: | FeiXiang | Model Number: | Roof panel machine corrugated sheet making machine | Power(W): | 7.5kw |
Voltage: | client want | Dimension(L*W*H): | 8.2*1.5*1.6m | Weight: | 8.2tons |
Certification: | CE BV ISO | Warranty: | 365 days | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Roof panel machine corrugated sheet making machine
Specifications
1.Roof panel machine corrugated sheet making machine
2.precise forming
3.reliable quality
fessional service
5.CE&ISO certificates
1.Processing flow diagram of South africa roof tiles machine
Manual decoiler→Feeding material into machine→Roll forming machine→Measure length→Hydraulic cutting→Finished Products
2.Technical parameters of corrugated steel panel roll forming machine.
Remark: below parameters are standard, we can design and make some change exactly according to your requirements.
Model number | Roof panel machine corrugated sheet making machine |
Rolled material | 0.3-0.8mm thickness, aluminum sheet, galvanized sheet, colored steel sheet and various steel plates |
Effective width | 1000mm |
Feeding width | 914mm 1000mm 1250mm |
Forming steps | 14 stations |
Roller | 45# forged steel, hard chrome plating within 0.05mm |
Diameter of shaft | 70mm |
Main motor power | 4 kw |
Pump power | 3 kw |
Sprocket chain | 1 inch |
Drive type | by chain |
Cutting Blade | Cr12, heat treatment 60-62°C |
Frequency Converter | It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm). |
component | 1 set of manual decoiler, 1 set of main roll forming machine, 1 set of computer control cabinet, 1 set of hydraulic System, 1 set of cutting mechanism, 1 set of counter, 1 set of output table |
Payment terms | cash,T/T,L/C. |
Delivery time | 30 working days |

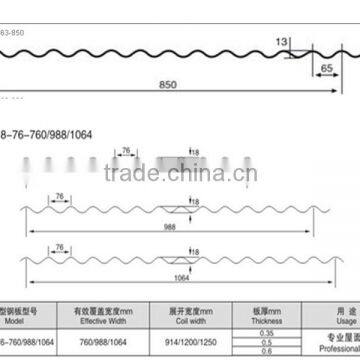

3.Profile and Real photos of corrugated steel panel roll forming machine.
4.Details of corrugated steel panel roll forming machine. :
5.After-sales service
A: Warranty: One year ,and we will provide the technical support for the whole life.
B: Training: the buyer should charge of visa, round-trip ticket, food and accommodation
overseas and USD100/person/day for salary.
C: Need one technician.
D: Training time: one week (contains the time of installation and adjustment)
Roof panel machine corrugated sheet making machine
6.Real Photos of Our Factory. Warmly Welcome to Come and Visit Our Company
corrugated steel panel roll forming machine.
Roof panel machine corrugated sheet making machine
7.Certifications for Our Company and Our Machines
corrugated steel panel roll forming machine. 8.if any needs or questions on roll forming machines, please feel free to contact me.
Roof panel machine corrugated sheet making machine
1: How to place order
Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit or L/C---then OK
2: How to visit our company
Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
If any questions, you can call me mobile phone at any time:0086-15231779729
3: If you want to get more pictures or videos of the machines, I can send them to you by Email or Skype.
Roof panel machine corrugated sheet making machine. 1. we can produce the special machine,send your drawing to us,we can design for you.
2. if you buy our products,we also can help you to purchase the material,like color roll,the price is lower than you buy by yourself.
3. we provide a one year warranty and lifelong technical support, we can send our technicians to you to give you on-site training.
The training period would be for no more than one week with the customer paying for the visa, return ticket, food, accommodations and a daily wage of US100.
4. engineers available to service machinery overseas.
5. if you come to visit our factory,we can book the room for you, car pick up to send.
Thanks for visiting our products, if you have interest, pls leave your message, or you can contact us, special design is available! The real data, the most professional foreign trade team, your best trustable partner.
A:- What service can you provide before order?
- About the pre-sale service. We provide you answers of all your questions on our machines, such as technical parameter, price, payment terms, ect. If you wanna visit our factory and check the machines, we also can send you invitation letter and give you our warmest welcome.
B:- Can you finish the machine during the delivery time?
- We will finish the machine in time according to determined lead time.
C:- Can you provide some spare parts?
- Yes, of course. The quick-wear parts are sent to you together with the machine.
D:- What is the after- sale service?
- About the after-sales service. We can send technician to your country to fix the machine. The buyer should bear all the cost including: visa, Roundtrip ticket and suitable accommodation, also buyer should pay the salary 100USD/day.
The warranty is one year. and we will provide the technical support for the whole life. It is free to maintain the machine the first year after buying, including changing the main components. The first year hence, you will pay for our technician $100 per day to maintain the machine. And the components are not free, if you need to get it from us.
E:- Any other service?
- We can manufacture, design, installation and debug various roll forming machines including standard and customized machines.
It is free to assemble machine and train your works, but the buyer should pay for the round-trip airplane ticket, and arrange accommodation during that time.
F:- Can you accept OEM?
- We can accept OEM.
G:- Any certification:
- Yes, we have CE ISO BV certification.
