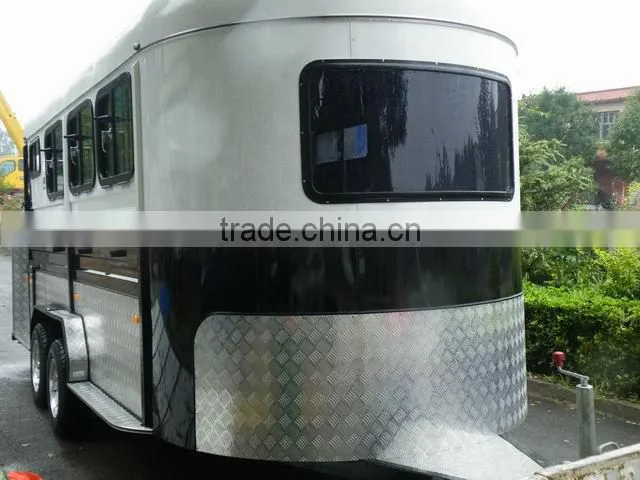

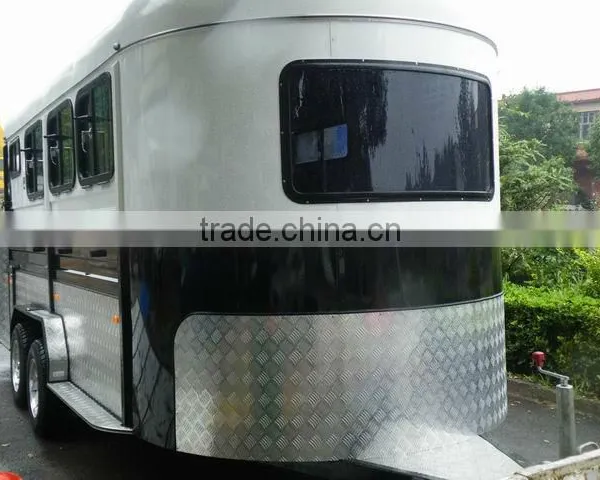

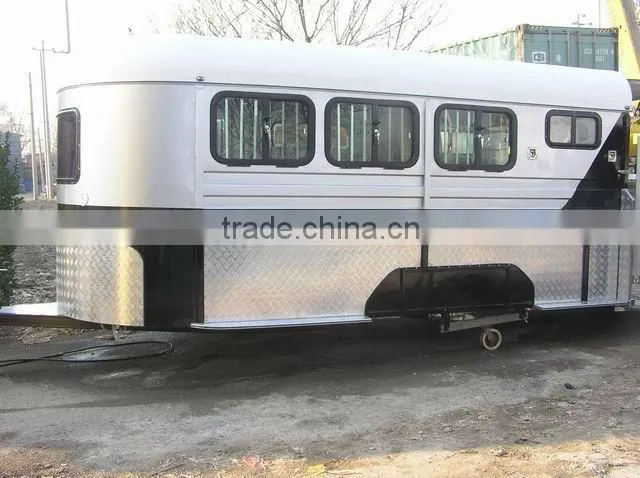

Deluxe 3 Horse Angle Load Horse Trailer

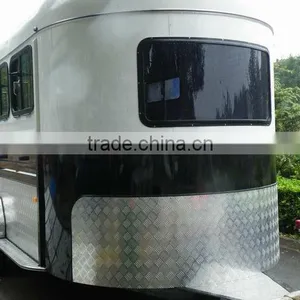

Deluxe 3 Horse Angle Load Horse Trailer thumbnail-1
Deluxe 3 Horse Angle Load Horse Trailer photo-1
US$ 6,000 - 8,000 MOQ: 3 Units
Key Specifications
Get Latest Price
OEM No.:
3HAL-L500
Max Payload:
2500KGs
Size:
5925 x 2290 x 2600
Contact Supplier Request Quote Chat Now
Shandong Standard Trailer Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
OEM No. 3HAL-L500
Max Payload 2500KGs
Size 5925 x 2290 x 2600
Place of Origin Shandong, China
Brand Name Standard
Model Number STD-3HAL-L500

Specifications

1.safe and high quality;
et Australia standard;
3.rich types,and specially designed

The following pictures are owned by Shandong Standard Trailer Co.,Ltd,
 infringement rights reserved.



Deluxe 3 horse angle load horse trailerDeluxe 3 horse angle load horse trailerDeluxe 3 horse angle load horse trailer

Deluxe 3 horse angle load horse trailer







detailed drawing





Deluxe 3 horse angle load horse trailer

 3mm Fiber-glass roof ,durable and sturdy





Deluxe 3 horse angle load horse trailer

 Double electric axles ,50*50 , making the trailer more strong





Deluxe 3 horse angle load horse trailer

 Rock suspension





Deluxe 3 horse angle load horse trailer

 Adjustable Knight wheel , Floats can be parked in a safe and secrue place





Deluxe 3 horse angle load horse trailer



Drop-down windows and side windows with high quality



Deluxe 3 horse angle load horse trailer

 All the LED Conform to ADRS





Deluxe 3 horse angle load horse trailer

 Rug rack with small door





Deluxe 3 horse angle load horse trailer

 Break away System guarantee the safety of floats and horse in some extreme cases





Deluxe 3 horse angle load horse trailer

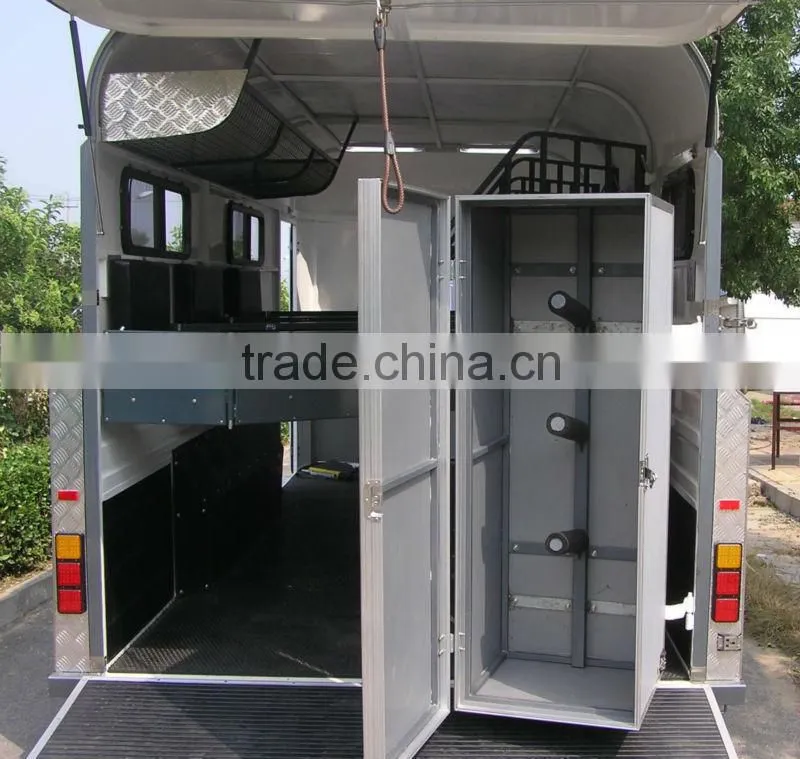

 Beautiful and durable cupboard





Deluxe 3 horse angle load horse trailer

 Exquisite saddle box





Deluxe 3 horse angle load horse trailer



  All the screws&nuts&handles use the stainless steel





Detailed parameter



Model STD-3HAL-L500
Materials Chassis Material: double hot dip galvanized RHS (3.5mm-4.0mm)
  Frame Material: double hot dip galvanized RHS (2.5mm)
  Body Panel: galvanized sheet (1-1.5mm)
  Roof: Special molded FRP 3mm
Brake double axle electric brakes
Drawbar Drawbar Checker Plate 1.2mm aluminium
  Drawbar Safety Chain two & Bracing Wheel one
Suspension Roll rocker tandem spring 8 plate
Axles Two special trailer axles 50*50mm
Wheels & Tyre Five 205R14 tyres and 14’ aluminum alloy rims including a spare wheel
Rubber Matting 18mm special plywood for floor& ramp door
  Rubber Matting For Inner Side Panel           6mm Rubber Matting
  Rubber Matting For Floor & Ramp Door     17.5mm anti-slip rubber sheet
Windows& Doors Front Window (mm) 1220*610mm
  Side Windows   6       Drop-down windows 3
  Vents     two large size upturning ventilation windows
  Rear Upper Door (mm) 1980*1065 Strut & High-intensity anti-rust strut
  Ramp Door (mm) 2030*1210
  Side Door (mm)   1730*615
  Hinges for Rear Upper Door   special 6mm diameter copper hinges
Supporting Wheel Swing-able knight supporting wheels to make parking safe and reliable
Lights& Retro Reflectors Trailer Plug       Seven-prongs plug
  Rear Lights brackets aluminium
  LED interior lights, two small LED sidelights, two LED combination taillights
  Retro Reflectors 8
Auxiliary Fittings Cupboard   Front
  Horse Protection Frame fully padded
  Horse Ring     7
  Saddle Rack   in saddle box(1200mm height for 3 saddles)
  Rug Rack       Side
  Saddle Box   One
Dimensions Body Dimension (L x W x H: mm) : 5075 x 1980 x 2230
  Inner Dimension (L x W x H: mm) : 5025 x 1930 x 2155
  Overall Dimension (L x W x H: mm): 5925 x 2290 x 2600
  Length of Tone (mm):   850
Empty Weight 1900 KGs
Carrying Capacity 2500 KGs
