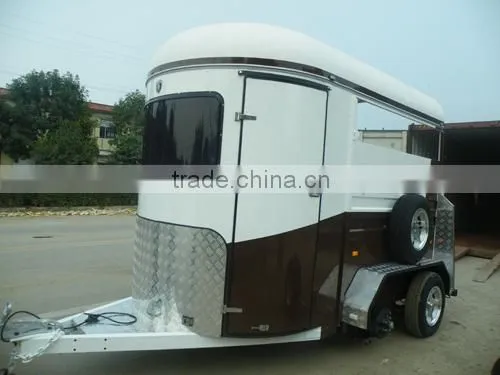

2 Horse Float Straight Load Economical Camper Float

2 Horse Float Straight Load Economical Camper Float thumbnail-1
2 Horse Float Straight Load Economical Camper Float thumbnail-2
2 Horse Float Straight Load Economical Camper Float thumbnail-3
2 Horse Float Straight Load Economical Camper Float thumbnail-4
2 Horse Float Straight Load Economical Camper Float thumbnail-5

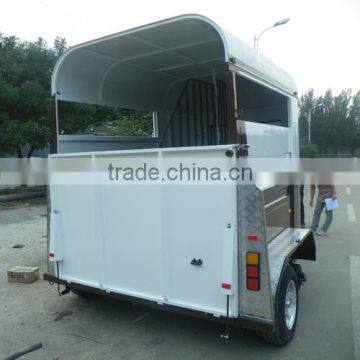

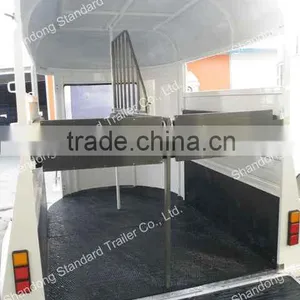

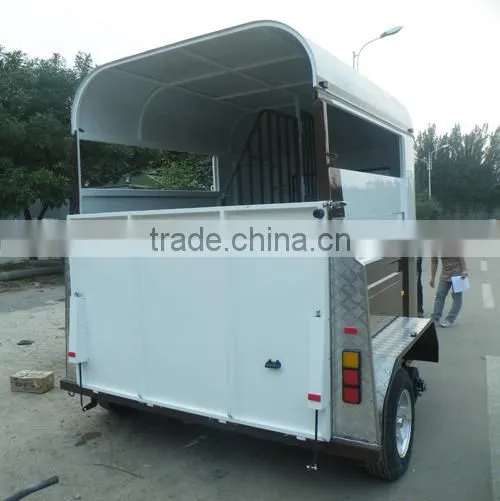

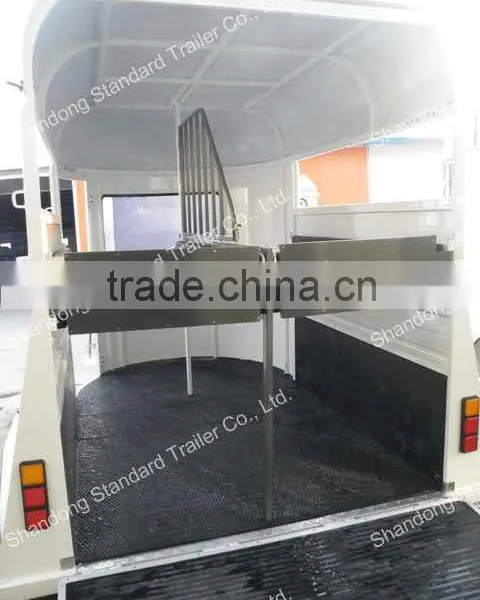

2 Horse Float Straight Load Economical Camper Float photo-1
2 Horse Float Straight Load Economical Camper Float photo-2
2 Horse Float Straight Load Economical Camper Float photo-3
2 Horse Float Straight Load Economical Camper Float photo-4
2 Horse Float Straight Load Economical Camper Float photo-5
US$ 1,000 - 20,000 MOQ: 1 Set
Key Specifications
Get Latest Price
OEM No.:
2HSL
Max Payload:
1500 KGs
Size:
3925 x 2290 x 2600(L x W x H: mm)
Contact Supplier Request Quote Chat Now
Shandong Standard Trailer Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
OEM No. 2HSL
Max Payload 1500 KGs
Size 3925 x 2290 x 2600(L x W x H: mm)
Place of Origin Shandong, China
Brand Name STD
Model Number STD-2HSL-E



Company advantages:

1.The double hot dip galvanized chassis offers a 15-20 years guarantee against rusting in bad working condition (most factories use hot dip galvanized pipe welding. Although the steel doesn’t rust, the welding parts will. We choose the whole chassis galvanized after welding.)

2.Different ATM will need different tyres. Three horse and more will choose 205R tyres which can keep transportation much safer also conform the ADRS.

3.50*50 axles making the trailer more strong

4.17.5mm ultra thick anti-slip rupper floor

5.Water tank including the level display , Show you the detailed information .

tection cover for gas struts in tailgate.

7.5MTs’ gooseneck adopt gas brake.

8.Beautiful style of closed front.

9.FRP roof is much tougher.

10.Upgated U shape big horse ring is tougher and more convenient.

11.Button lock in the cupboard , practical and convenient .

12.Australian standard coded Trailer chain

13.The user instructions are provided

14. Weld axle to plate to avoid movement,both sides of axle



                                         2 Horse Float Straight Load Economical Camper Float



Model STD-2HSL-E
Materials Chassis Material: double hot dip galvanized RHS 3.5*4.0mm
Frame Material: double hot dip galvanized RHS 2.5mm
Body Panel: galvanized sheet 1.0-1.5mm
Roof: Special molded FRP 3mm
Brake Perfect Security Structure Design,single axle electric brake
Draw bar Drawbar Checker Plate   none
Drawbar Safety Chain two & Bracing Wheel one
Suspension general spring 5 plate
Axles Two special trailer axles 50*50mm
Wheels & Tires White steel rims 5 hole without spare wheel
Rubber Matting 18mm special plywood for floor& ramp door
Rubber Matting For Inner Side Panel           6mm Rubber Matting
Rubber Matting For Floor & Ramp Door     17.5mm anti-slip rubber sheet
Windows & Doors Front Window (mm) 1220*610
Side Windows     None
Vents                   None
Rear Upper Door (mm)   None
Ramp Door (mm)   1800*1210
Side Door (mm)     1730*615
Supporting Wheel Swing-able knight supporting wheels to make parking safe and reliable
Lights&Retro Reflectors Trailer Plug       Seven-prongs Plug
Rear Lights brackets iron
LED interior lights, two small LED sidelights, two LED combination
Auxiliary Fittings Bed
Cupboard         None
Horse Protection Frame     fully padded
Horse Ring     6
Saddle Rack     None
Rug Rack         None
Saddle Box     None
Dimensions Body Dimension (L x W x H: mm): 3075 x 1750 x 2230
Inner Dimension (L x W x H: mm): 3025x 1700 x 2155
Overall Dimension(L x W x H: mm): 3925 x 2290 x 2600
Length of Tone (mm):     850
Empty Weight 1200 KGs
Max Payload 1500 KGs

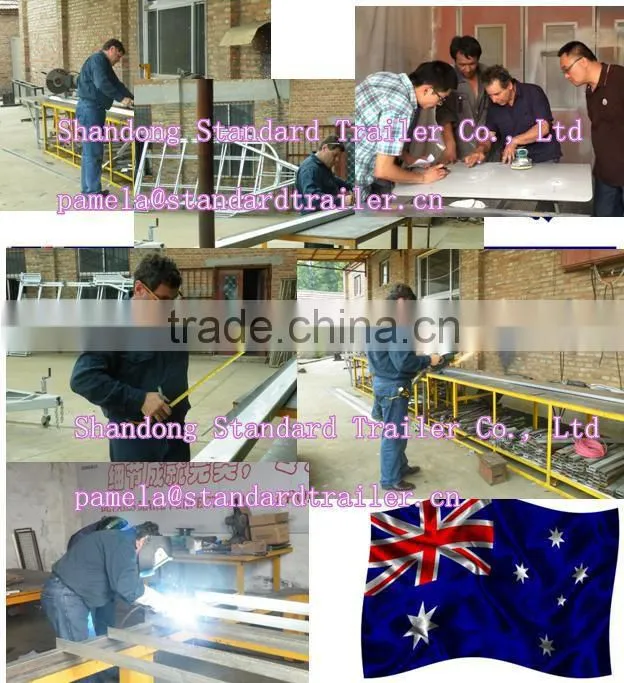

 Our engineers from Australia

2 Horse Float Straight Load Economical Camper Float

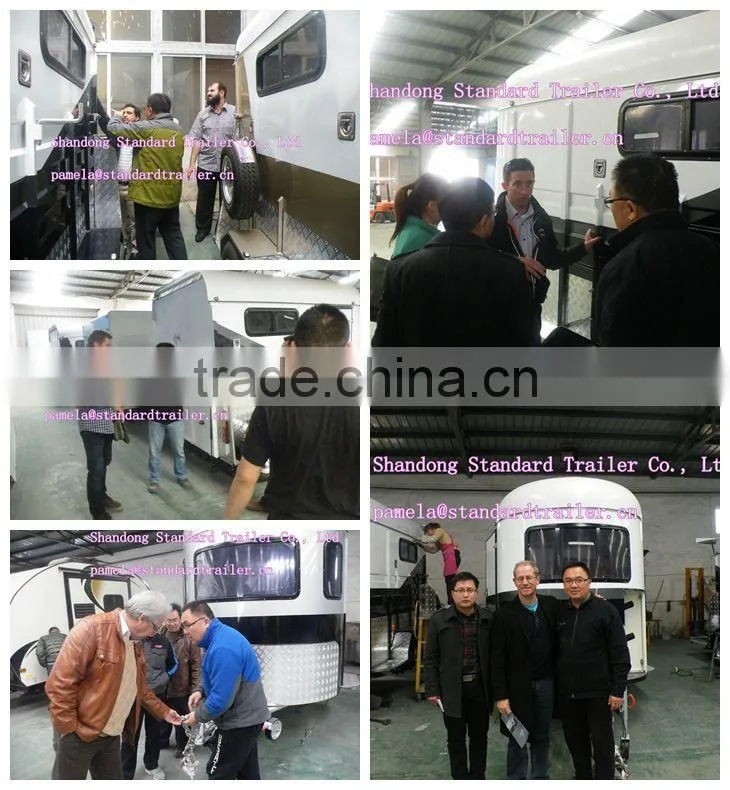

Customers visited our factory

2 Horse Float Straight Load Economical Camper Float

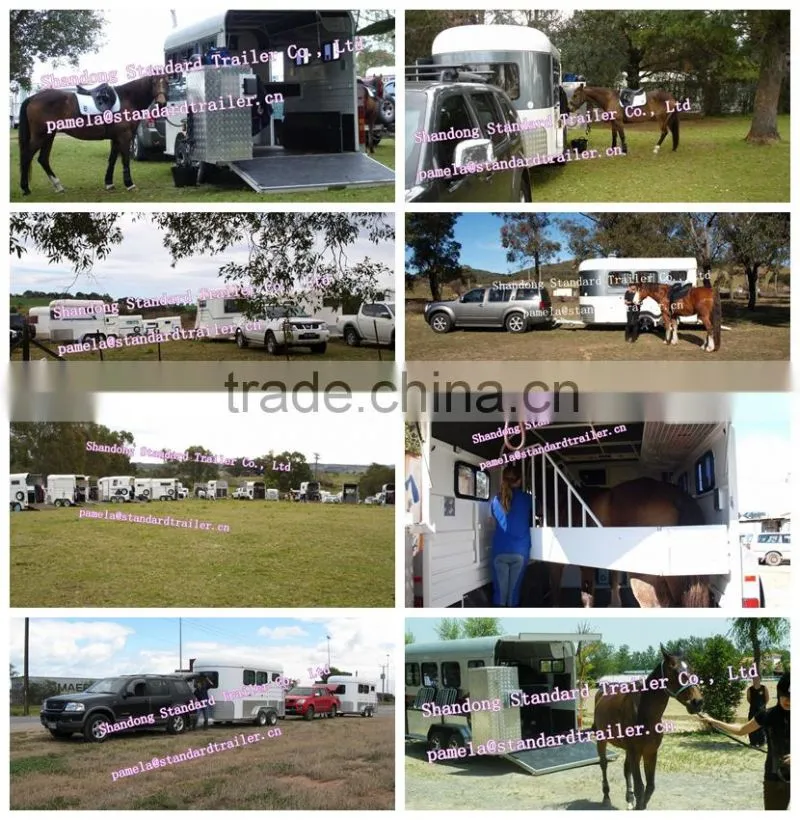

Customers' use case--horse float in Australia

2 Horse Float Straight Load Economical Camper Float

The letter from customer

2 Horse Float Straight Load Economical Camper Float
