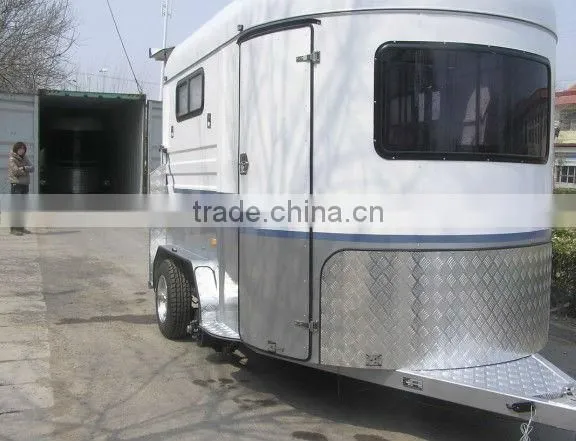

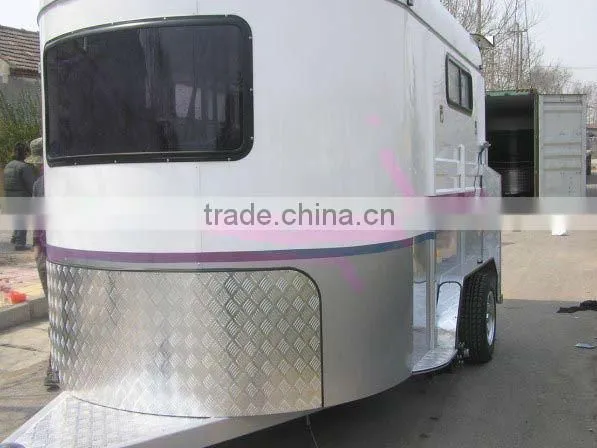

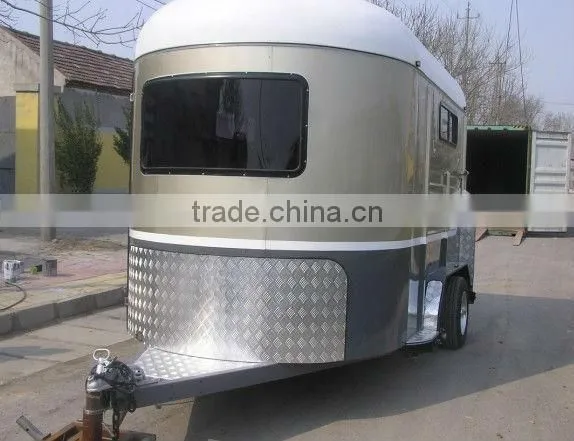

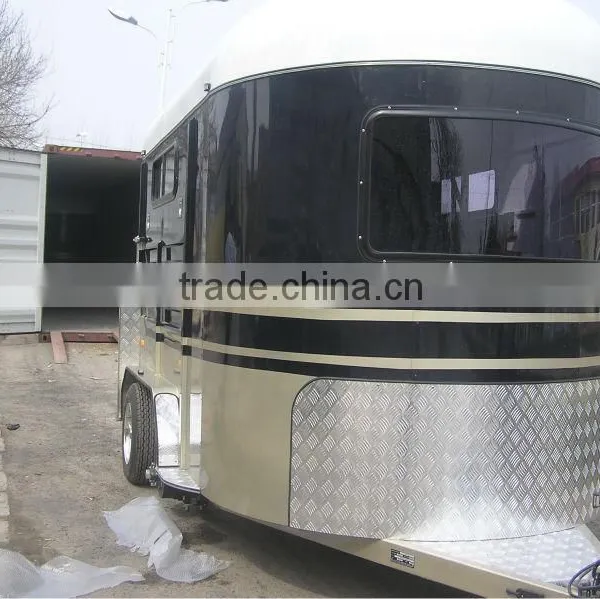

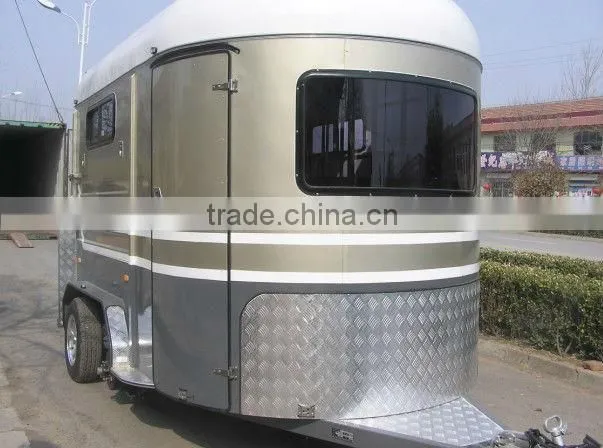

2 Horse Trailer Angle Trailer Manufacturer

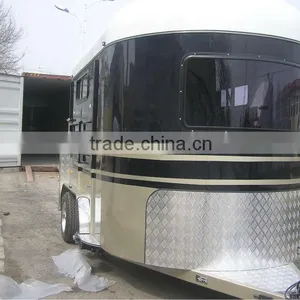

2 Horse Trailer Angle Trailer Manufacturer thumbnail-1
2 Horse Trailer Angle Trailer Manufacturer photo-1
US$ 4,000 - 6,000 MOQ: 3 Units
Key Specifications
Get Latest Price
Max Payload:
1500KGs
Size:
4110 x 2290 x 2600mm
Place of Origin:
Shandong, China
Contact Supplier Request Quote Chat Now
Shandong Standard Trailer Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Max Payload 1500KGs
Size 4110 x 2290 x 2600mm
Place of Origin Shandong, China
Brand Name Standard
Model Number STD-2HAL-S

Specifications

1.saled directly by factory at the best price;
nform to Australia standard;
3.rich types,specially designed.

2 horse trailer angle trailer manufacturer2 horse trailer angle trailer manufacturer2 horse trailer angle trailer manufacturer2 horse trailer angle trailer manufacturer

Model STD-2HAL-S
Materials Chassis Material: double hot dip galvanized RHS (3.5mm-4.0mm)
  Frame Material: double hot dip galvanized RHS (2.5mm)
  Body Panel: galvanized sheet (1-1.5mm)
  Roof: Special molded FRP 3mm
Brake Perfect security structure design, double axle electric brakes
Drawbar Drawbar Checker Plate 1.2mm aluminium
  Drawbar Safety Chain two & Bracing Wheel one
Suspension Roll rocker tandem spring 5 plate
Axles Two special trailer axles 50*50mm
Wheels & Tyre Five 185R14C tyres and 14’ aluminum alloy rims including a spare wheel
Rubber Matting 18mm special plywood for floor& ramp door
  Rubber Matting For Inner Side Panel           6mm Rubber Matting
  Rubber Matting For Floor & Ramp Door   17.5mm anti-slip rubber sheet
Windows& Doors Front Window (mm) 1220*610
  Side Windows   900*300mm
  Skylight   two large size upturning ventilation windows
  Rear Upper Door (mm) 1980*1065 Strut & High-intensity anti-rust strut
  Ramp Door (mm) 2030*1210
  Side Door (mm)   1730*615
  Hinges for Rear Upper Door   special 6mm diameter copper hinges
Supporting Wheel Swing-able knight supporting wheels to make parking safe and reliable
Lights& Retro Reflectors Trailer Plug       Seven-prongs Plug
  Rear Lights brackets aluminium
  LED interior lights, two small LED sidelights, two LED combination taillights
  Retro Reflectors     10
Auxiliary Fittings Cupboard             None
  Horse Protection Frame fully padded
  Horse Ring         6
  Saddle Rack   in saddle box(1200mm height for 2 saddles)
  Rug Rack             Side
  Saddle Box         One
Dimensions Body Dimension (L x W x H: mm) : 3260 x 1980 x 2230
  Inner Dimension (L x W x H: mm) : 3210 x 1930 x 2155
  Overall Dimension(L x W x H: mm): 4110 x 2290 x 2600
  Length of Tone (mm):   850
Empty Weight 1250 KGs
Carrying Capacity 1500 KGs
