600x150x50mm Calcium Silicate Board
- Qingdao
- T/T Money Gram
You May Like
Product Details
| Grade | HP (High Pure) | Application | Refractory | |
| Thickness | 10-50mm | Width | 400/600mm | |
| Length | 600/900mm | Chemical Composition | Al2O3,SiO2,Fe2O3 | |
| Working Temperature | 600 | Fiber Diameter | 3-5 | |
| Shrinkage (1800 ℉, 3h) | 0.18 | Model Number | HP-320 | |
| Brand Name | Yonganda | Place of Origin | Shandong, China |
Product Description

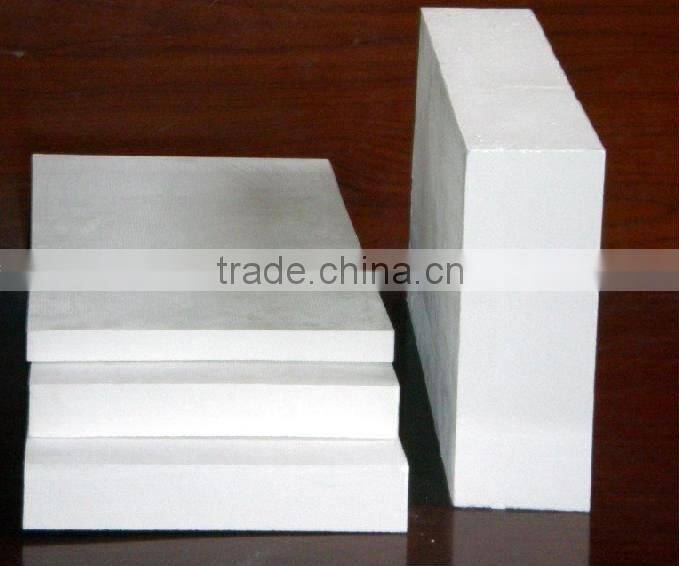

600x150x50mm calcium silicate board
Character
1. low thermal conductivity and low heat stroage
2.high quality of tensile strength
3.Excellent stability and thermal shock resistance
4.Excellent heat insulation,fine proofing and sund-absorbability
Application
1.Lining of atove,heating equipments and high temperature pipeline
2.Lining of high temperature reacting and heating equipments in chemical engineering
3.Fire proofing and heat insulation of high building
5.Heat insulation of kiln door and lid
6.Material for high-temperature filtrating
Technical index
Item | COM | ST | HP | HA | HZ |
Specification(°c) | 1100 | 1260 | 1260 | 1360 | 1430 |
working tem(°c) | ≤1000 | 1050 | 1100 | 1200 | 1350 |
color | white | ||||
density(kg/m3) | 260/320 | ||||
rate of liner(%) (24h density320kg/m3) | -4 | -3 | -3 | -3 | -3 |
rate of thermal conductivity (w/m.k)(density128kg/m3) | 0.085(400°c) 0.132(800°c) 0.18(1000°c) | ||||
tensile strength(mpa) | 0.5 | ||||
chemical composition
Chemical(%) | COM | ST | HP | HA | HZ |
Al2O3 | 44 | 46 | 47-49 | 52-55 | 39-40 |
Al2O3+SiO2 | 96 | 97 | 99 | 99 | -- |
Al2O3+SiO2+ZrO2 | -- | -- | -- | -- | 99 |
ZrO2 | - | - | - | - | 15-17 |
Fe2O3 | <1.2 | <1.0 | 0.2 | 0.2 | 0.2 |
Na2O+K2O | ≤0.5 | ≤0.5 | 0.2 | 0.2 | 0.2 |
If you are interested in our products or have any question,
please feel free to contact us for further information.
Tel: +86-533-5589999
Mob: +86-18560275809
Skype: liu0qian0
Sincerely look forward to establishing a long-term business relationship with you!
