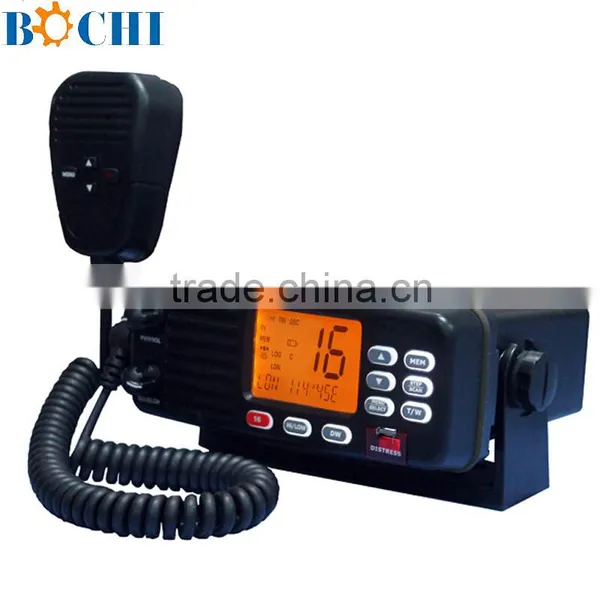

Marine VHF Transceiver Use For Boat
1. Equipped with all international channels. (with United States and Canada channels)
2. High transmission power of 25W / Low transmission power of 1W.
3. Principal commands duplicated on the microphone.
4. Back lit LCD display and adjustable contrast.
5. Possibility to program 20 private channels.
6. Extraordinary capability for water resistance. Conforms to the standard IPX7.
7. Recall button for channel 16.
8. NMEA connection from the transceiver to an external GPS system.
9. DSC or Digital Selective Calling.
10. MMSI directory.
11. Mounting on adjustable bracket.
12. Connection to an external speaker.
1. Channels |
All 57 international marine channels |
2. Frequency generation |
PLL synthesizer |
3. Frequency range |
TX from 156.025 to 157.425 MHz |
4. Antenna Impedance |
50 Ohm |
5. Power Supply |
12 Vdc |
6. Operating Temperature |
from -15 degrees Celsius to +55 degrees Celsius |
7. Size |
72x177x146 mm |
8. Weight (device only) |
1.380 kg |
| |
TRANSMITTER | |
1. Output power |
High (HI): 25W / Low (LO): 1W |
2. Modulation type |
FM |
3. Microphone |
Condenser type |
4. Hum and Noise attenuation |
34 dB |
5. Audio distortion |
<5% |
6. Harmonics reduction |
<36 dBm |
| |
RECEIVER | |
1. Sensitivity @ 20 dB Sinad |
<0.5 UV |
2. S/N ratio (20 dB) |
0.8 UV |
3. Squelch sensitivity |
Threshold -12 dB UV (EMF) |
4. Adjacent channel rejection |
70 dB |
5. Audio output power |
> 2W 8 Ohm |
6. Audio distortion |
10% |
We are one of the suppliers of marine equipments in China. Located in Chongqing,
which is among the largest industrial and commerical cities in China.
Electric equipment can supply all kinds of marine equipments like
Marine GPS Chart Plotter,AIS Fish Finder, Radar, Satellite TV Antenna
and marine accesorries as electrical etc
We are one of the suppliers of marine equipments in China. Located in Chongqing,
which is among the largest industrial and commerical cities in China
Navigation&communication equipment can supply all kinds of marine equipments like gps, ais,sounder,radar,satellite tv antenna.vhf etc.
