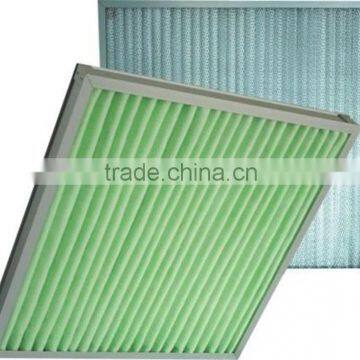

Combined High Efficiency Air Filter Fold Type
Application:
As primary filter it suitable for commercial or industrial ventilate air-conditioning system, central air-conditioning, clean spot or other related industry.
Feature:
1.Filter material fiber be made by the method of special punching,with high air permeability.
2.Using composed metal net as filter material which making into folding type,its filter area is 5 times than general flat filter screen, with long service life,low resistance features.
3.Efficiency is from G3 to F8, sizes can be made according to client's requirement.
4.The frame material can be paper, galvanized, stainless steel or plastic.
| Model | Size | Air Flow | Pressure | Filter Area | ||
| (m3/h) | (Pa) | (m2) | ||||
| W*H*D (mm) | Standard Air Flow | Max Air Flow | Standard | Max Air Flow | ||
| BMMVPVEFF-001 | 290×595×23 | 600 | 1200 | 20 | 63 | 0.4 |
| BMMVPVEFF-002 | 493×341×23 | 550 | 1100 | 0.39 | ||
| BMMVPVEFF-003 | 493×366×23 | 625 | 1250 | 0.43 | ||
| BMMVPVEFF-004 | 493×391×23 | 650 | 1300 | 0.45 | ||
| BMMVPVEFF-005 | 493×493×23 | 800 | 1600 | 0.56 | ||
| BMMVPVEFF-006 | 493×595×23 | 950 | 1900 | 0.65 | ||
| BMMVPVEFF-007 | 595×595×23 | 1200 | 2400 | 0.83 | ||
| BMMVPVEFF-008 | 620×341×23 | 700 | 1400 | 0.48 | ||
| BMMVPVEFF-009 | 620×391×23 | 800 | 1600 | 0.57 | ||
| BMMVPVEFF-010 | 620×493×23 | 1000 | 2000 | 0.71 | ||
| BMMVPVEFF-011 | 341×493×46 | 850 | 1700 | 20 | 70 | 0.77 |
| BMMVPVEFF-012 | 493×290×46 | 700 | 1400 | 0.7 | ||
| BMMVPVEFF-013 | 493×391×46 | 900 | 1800 | 0.94 | ||
| BMMVPVEFF-014 | 493×442×46 | 1050 | 2100 | 1.01 | ||
| BMMVPVEFF-015 | 493×493×46 | 1200 | 2400 | 1.12 | ||
| BMMVPVEFF-016 | 595×290×46 | 850 | 1700 | 0.79 | ||
| BMMVPVEFF-017 | 595×442×46 | 1300 | 2600 | 1.24 | ||
| BMMVPVEFF-018 | 595×493×46 | 1400 | 2800 | 1.36 | ||
| BMMVPVEFF-019 | 595×595×46 | 1700 | 3400 | 1.64 | ||
| BMMVPVEFF-020 | 620×391×46 | 1200 | 2400 | 1.18 | ||
| BMMVPVEFF-021 | 620×442×46 | 1350 | 2700 | 1.27 | ||
| BMMVPVEFF-022 | 620×493×46 | 1500 | 3000 | 1.42 | ||
| BMMVPVEFF-023 | 493×391×96 | 950 | 1900 | 18 | 68 | 1.45 |
| BMMVPVEFF-024 | 493×493×96 | 1200 | 2400 | 1.73 | ||
| BMMVPVEFF-025 | 595×290×96 | 850 | 1700 | 1.28 | ||
| BMMVPVEFF-026 | 595×442×96 | 1300 | 2600 | 1.91 | ||
| BMMVPVEFF-027 | 595×493×96 | 1400 | 2800 | 2.09 | ||
| BMMVPVEFF-028 | 595×595×96 | 1700 | 3400 | 2.55 | ||
| BMMVPVEFF-029 | 620×391×96 | 1200 | 2400 | 1.82 | ||
| BMMVPVEFF-030 | 620×493×96 | 1500 | 3000 | 2.18 | ||
| BMMVPVEFF-031 | 620×721×96 | 2150 | 4300 | 3.27 | ||
Note: the datas in table are just for reference, we could design and recommend correct model according to
client's requirements, if you have no idea, just send us ur ship or project information, we could help you.
Bochi Corporation could disign and offer you best products with good servces: we take care of our order!
We are one of the manufacturers of marine equipments in China. Located in Chongqing, which is among the largest industrial and commerical cities in China.
We operate as the import and export branch of Bochi Corporation.
We are Alibaba Excellent Supplier & Alibaba Recommended Supplier!
With the aim of "to establish a close strategic partnership and develop together with customers", we will work whole-heartedly to improve our products and service.
