YM-250T Longmen Hydraulic Press Machine

YM-250T Longmen Hydraulic Press Machine photo-1
YM-250T Longmen Hydraulic Press Machine photo-2
YM-250T Longmen Hydraulic Press Machine photo-3
YM-250T Longmen Hydraulic Press Machine photo-4
YM-250T Longmen Hydraulic Press Machine photo-5
YM-250T Longmen Hydraulic Press Machine photo-6
US$ 100 - 1,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other
Place of Origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Other
Place of Origin Shandong, China
Brand Name DATONG
Model Number YM-250T
Voltage According to your requirement
Power(W) 5.5KW
Dimension(L*W*H) According to your requirement
Weight According to your requirement
Certification ISO9001,CE
Warranty One Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

 YM-250T Longmen Hydraulic Press machine

YM-250T Longmen Hydraulic Press machine



Usage :



1.This machine can preset pressure



2.Can be used for production and processing



3.Correct deformed work piece



4.Dismounting all kinds of close fitting component



5.Used in alignment and stamping of plates and sectional material






Specification:





Specification

Unit

YM-160T

YM-200T

YM-250T



Nominal force

Kn

1600

2000

2500

Max pressure of hydraulic system

Mpa

31.5

31.5

31.5

Max. Opening height

mm

700

700

700

Effective stroke

mm

260

280

360

Worktable effective area (Left and right)

mm

640

670

760

Worktable effective area (front and back )

mm

550

600

700

Blanking hole diameter

mm

200

200

200

The height from worktable to floor

mm

600

600

500

Motor power

Kw

5.5

7.5

5.5

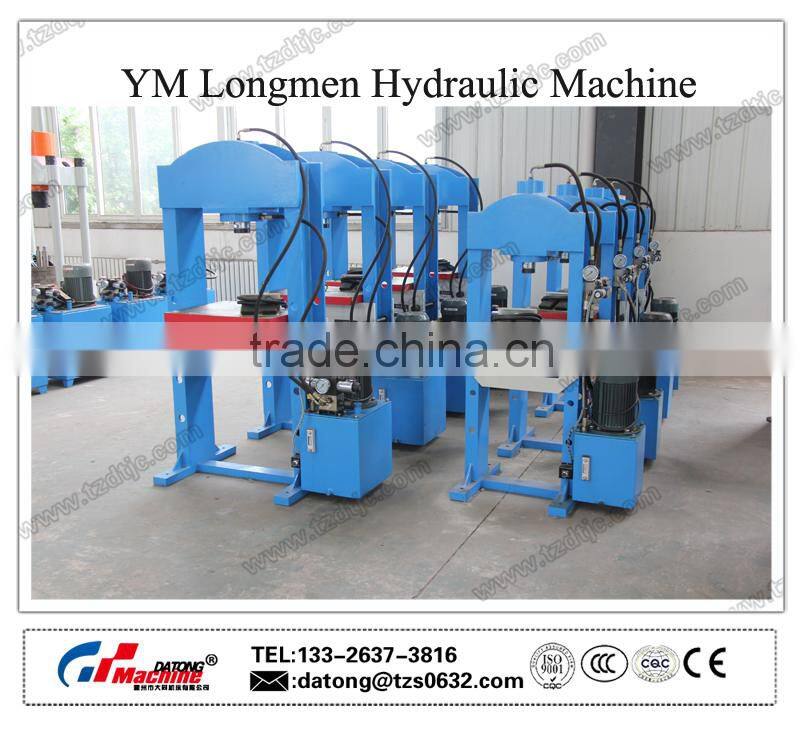

Detailed Images
