Help CenterAluminum Composite Panel Perforated
Related Products
Specifications
1) thickness:1~8mm2) Width:1000~2000mm
3) PVDF:20 years (PPG Paint)
4) Core:Unbreakable, Firproof A2
5) CE; ISO;Green Leaf
SkyRainbow® Spectra colors ACP Aluminium composite panel is a composite one consisting of two aluminium cover sheets and a plastic core. The superb properties of this material boost one's inspiration and offer architecture a whole new range of solutions,whether your project is a private home, a public building, a corporate headquarter or an office, a trading or industrial complex,or if your organisation wants to create a new image,building Corporate Design,whether for petrol stations, car showrooms, banks or supermarkets.
Creating interesting colors gradients from different view angle, spectra color is created through various colours gradients of gloss and depth. It has PVDF coating and polyester coating, and the former has 15 years' color retention as outside wall cladding.
1)Material:
A) Front : aluminium alloy sheet coated with Pleochromatic PVDF paint on surface
B) Core: nontox low density polyethylene
C) Back: aluminium alloy sheet coated with polyester resin painting
D) Surface coating thickness: 32μ±1μ
E) Aluminium alloy: 3003 H24
F) Sheet thickness: 0.3mm,0.4mm,0.5mm
2)Dimensions
A) Thickness: 3mm,4mm,6mm,8mm,10mm
B) Width: 1220mm,1250mm,1500mm,1570mm,1800mm,2000mm(max)
C) Length: 2440mm,3050mm,3200mm( max:6000mm)
D) Weight: 5.5kg/sqm baesd on 0.5/4mm thickness
E) Standard size:1220*2440mm
F) Qty/20'fcl:4mm/2380sqm; 3mm/2977sqm
G) Non-stanard size are available according to requirement
3)Standard:
A) West Europe standard ( Germany DIN Standard);
B) The EAST Europe standard ( Russian standard );
C) The commonweathlth standard (U.K BS Standard );
D) The North America ASTM standard;
E) The South American standard (Mexico standard )and so on .
4)Features:
A) Light weight,flat surface and high strength
B) Excellent heat insulation ,sound insulation,fire-resistance,acid-resistance,alkali-resistance,weatherproofness and non-resonance
C) Various uniform colors
D) Rbright ,elegan and magnificent,fit for various designs
E) Kynar 5000 PVDF resin feature strong chemical resistance,unique colors can be easily maintained
5)Applications:
A) May be widly used in gallaies,exhibition,saloons,stores,offices,banks,hotels,restaurants and apartments
B) An ideal decorative materials for buildings
C) An ideal outer and inner walls
D) Kitchen cabinees,billboards,signboards,tunnels,subway,interiors
E) Cellings,eaves,galleries,balconies,partitions,interior decorations
F) Telephone tooths,vehicle bodies,yachts,industrial usage etc.
6)SkyRainow® ACP compared with different products( Lightness / Rigidity ):
The composite structure of SkyRainbow® results in an impressive strength-to-weight ratio, even when comparing large panel sizes. Despite its low weight, which makes Sky Rainbow ® easy to transport and handle in the factory and on site, its rigidity and high strength make the panels keep their shape and remain flat, even when exposed to extreme temperature changes.
Comparison of thickness and weight of panels with equal rigidity
7)SkyRainow® ACP compared with solid aluminium: Required thickness and actual weights of panels with same rigidity
| SkyRainow® ACP | Aluminium | ||||
| Rigidity (E J) | Section modulus | Thickness | Weight | Thickness | Weight |
| 1250 kN cm2/m | 1.25 cm3/m | 3 mm | 4.5kg/m2 | 2.7 mm | 7.3kg/m2 |
| 2400 kN cm2/m | 1.75 cm3/m | 4 mm | 5.5kg/m2 | 3.3 mm | 8.9kg/m2 |
8)Skyrainbow ACP Tolerance(mm) :
| Thickness | ± 0.2 |
| Width | ± 2 |
| Length | ± 4 |
| Diagonal | ± 5 |
9)Skyrainbow ACP Physical Properties for Panel:
| Panel density | 5.5kg/m2 |
| Peel Strength | Average 7.0 N/mm |
| Tensile Strength | 52.5 Mpa |
| Flexural Strength | 100.0 Mpa |
| Shear Strength | 28.1 Mpa |
10)Physical properties for aluminium and coating:
| Aluminium alloy | 1100, 3003, 5005 |
| Pencil hardness | 2H |
| Toughness of coating | 2T |
| Elongation | 5% |
| Tensile strength | 130 Mpa |
| Temperature Resistance | -50°C to +90°C |
| Impact Strength | 50kg/cm2 , no change |
| Boiling water resistance | Boiling for 2 hrs, no change |
| Thermal Expansion | 2.4mm/m at 100°C Temp difference |
| Acid Resistance | Immersed in 2% HC1 for 24 hrs, no change |
| Alkali Resistance | Immersed in 2% NaOH for 24 hrs, no change |
| Cleaning Resistance | Cleaned 1000 times with water, no change |
| Oil Resistance | Immersed in 20# engine oil for 24 hrs, no change |
| Solvent Resistance | Cleaned 100 times with dimethylbenzene, no change |

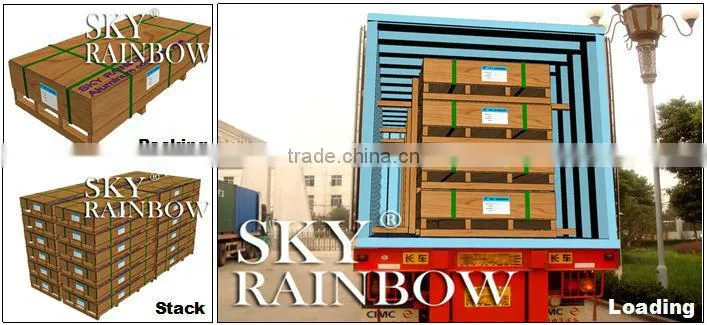

11) Packing:Put all the panles in one wooden box. Stocks: the packings are less 6 per one pile.Loading the container time, we will use timbers to reinforce.

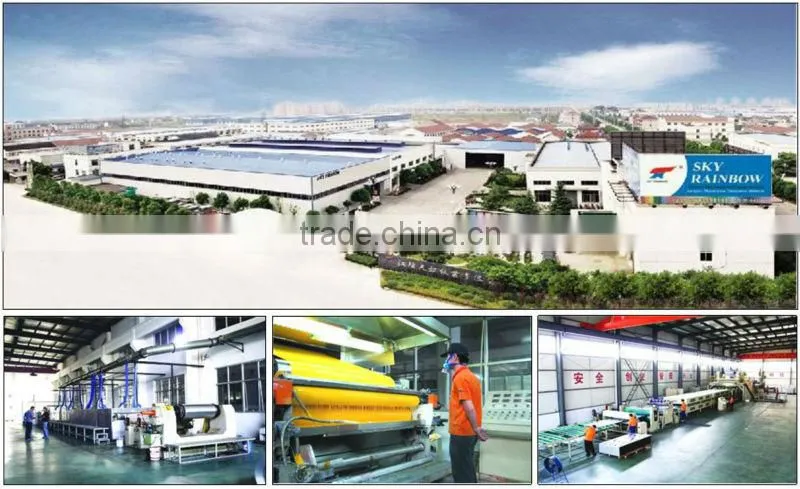

12) Company information:

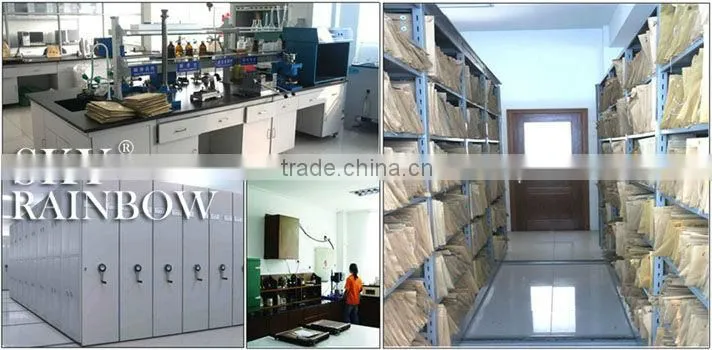

13) Testing center
