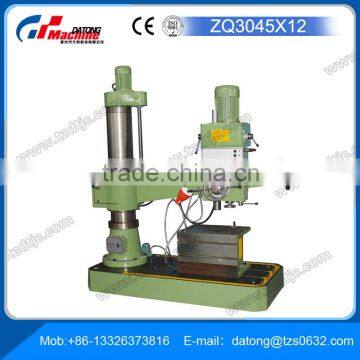

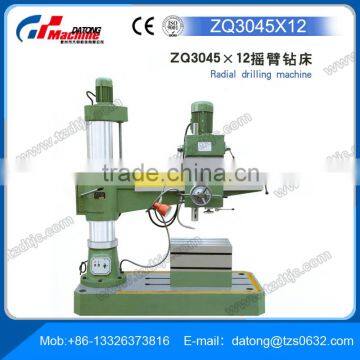

Radial Drilling Machine ZQ3045*12

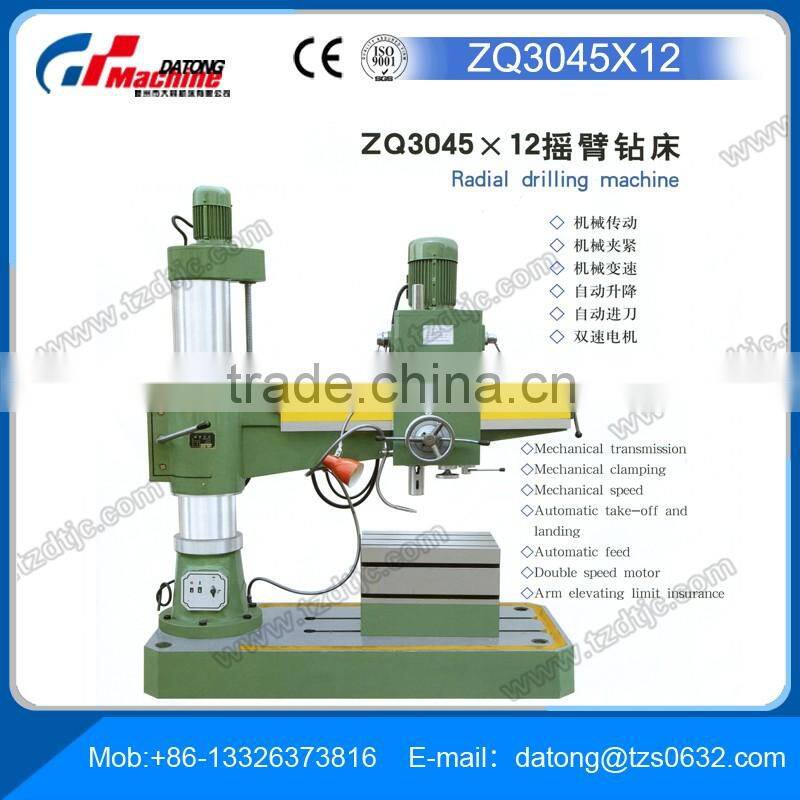

Feature:
1. Radial drilling machine.
2. With antistic good looking and its general arrangemnet is very harmonized.
3. Mechanical transmission.
4. Mechanical clamping.
5. Automatic arm lifting.
6. Automatic feed.
7. Powerful double speed motor.
Specification:
| Model | Z3045x13 | Z3045x12 |
| Max. drilling diameter | steel ø38mm,cast ø45mm | steel ø38mm,cast ø45mm |
| Column diameter | 280mm | 240mm |
| Distance between spindle axis and column | 300-1300mm | 330-1200mm |
| Distance of headstock horizontal movement | 940mm | 840mm |
|
Distance between spindle nose and woring surface of base |
250-1100mm | 260-1000mm |
| Rocker arm lifting distance | 670mm | 550mm |
| Spindle travel | 270mm | 270mm |
| Spindle taper | MT 4 | MT 4 |
| Range of spindle speeds(12 steps) |
36,65,120,190,330,610,75, 130,240,380,660,1220r/min |
36,65,120,190,330,610,75, 130,240,380,660,1220r/min |
| Range of spindle feeds (3 steps) | 0.10,0.16,0.25mm/r | 0.10,0.16,0.25mm/r |
| Max. permissible feed pressure of spindle | 6300N | 6300N |
| Rocker arm lifting speed | 1.3m/min | 1.3m/min |
| Rocker swing angle | ±180° | ±180° |
| Spindle motor power | 1.5/2.4 kW | 1.5/2.4 kW |
| Elevating motor power | 0.55kW | 0.55kW |
| Cooling pump motor power | 0.04kW | 0.04kW |
| Machine weight | 1800kg | 1660kg |
| Overall dimension | 2000x800x2240mm | 1800x760x2100mm |

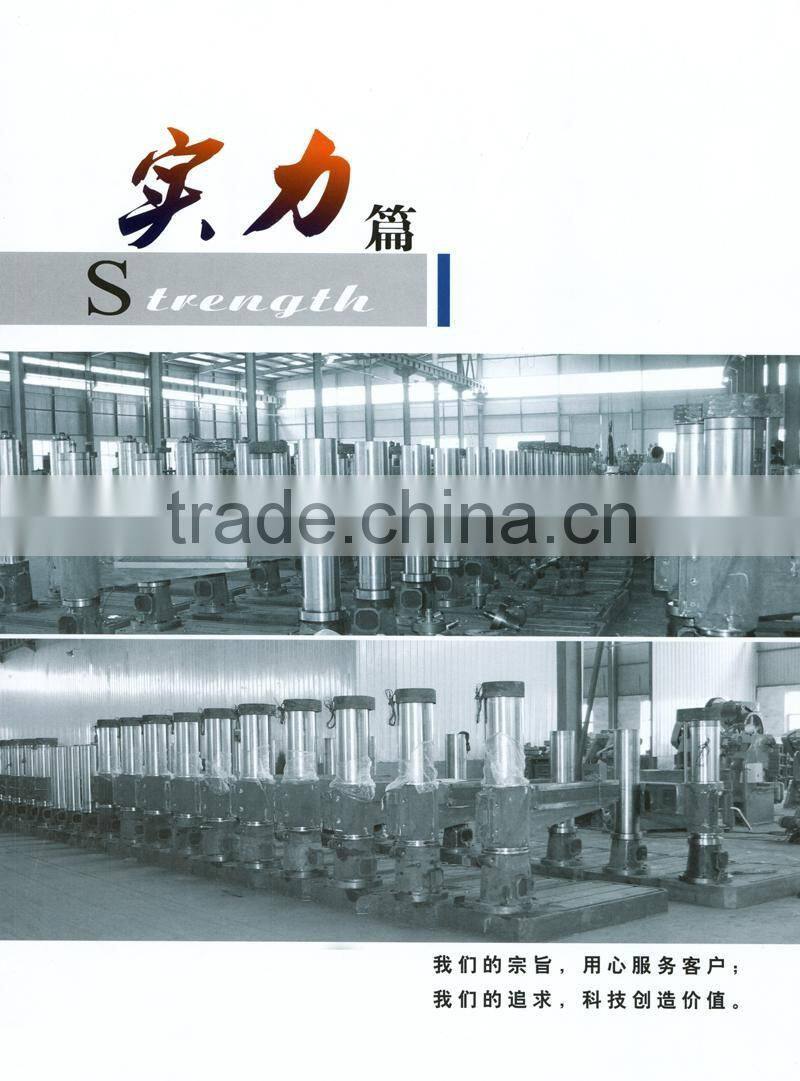

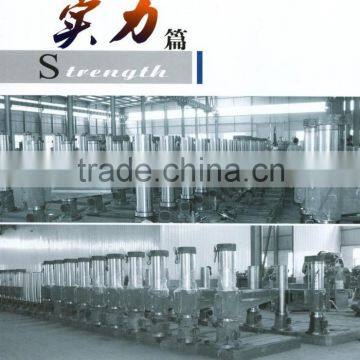

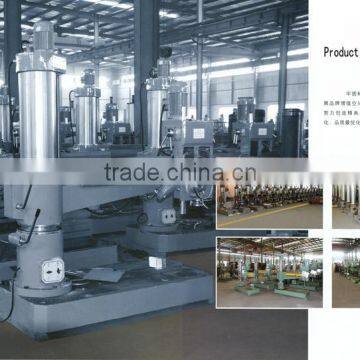

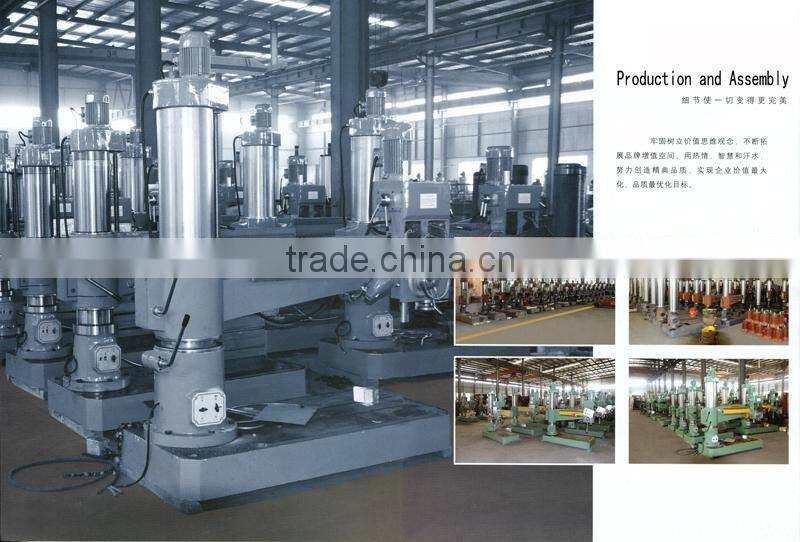

The Tengzhou Datong Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We are specialized in the manufacturing of the XW series Universal Lifting Platform Milling Machine,the XQ series Universal Swivel Head Milling Machine,the ZX series Universal Drilling and Milling Machine,the ZQ serie Universal Radial Drilling Machine.Varies models of Hydraulic Machine,Automatic Boring Drum Machine,HD2006-A laser beam level truck locator and hydraulic auto-maintain equipment.
Datong has the right to import and export,and gained CE and ISO9001 System Certification.It has all the integration of R&D,manufacturing & processing,management & marketing,technical service,import & export and into one.At present,we have more than 300 employees,among them,160 have college education which more than 50 persons hold junior,middle and senior professional post .More than 200 sets of main production equipment and testing equipment.The products are widely exported to Europe,South-America and Southeast Asia and other countries and regions.
"Honesty Basic,Quality First"is the company's purpose,"continuous progress to satisfy the requirements of the customers" is the quality policy.
The Tengzhou Datong Machine Tool Co.,Ltd.sincerely wishes to cooperate with friends at home and abroad to realize mutual development!
