Specification
shell and tube heat exchanger is manufactured as ASME standard.

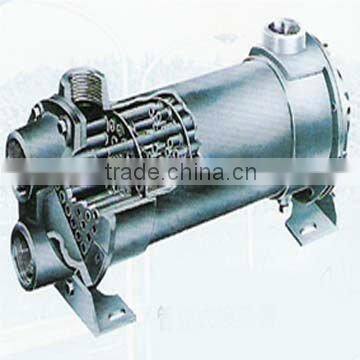

shell and tube heat exchanger
heat exchange area: 10-500m2
material :SS316,SS304,CS,aluminium,ASME standard material ,copper,titanium
test: hydraulic test and X-ray detection.
we can design and manufacture as customers' requiremennts.
| Shell and Tube Heat Exchanger Tube OD25 | |||||||||
| DN(mm) | Tube | Pipe No. | Center row bube No. | Tube flow area(m2) | Heat change area(m2) Heat change pipe length(mm) | ||||
| 1500 | 2000 | 3000 | 4500 | 6000 | |||||
| 159 | 1 | 11 | 3 | 0.0038 | 1.3 | 1.7 | 2.6 | / | / |
| 219 | 1 | 25 | 5 | 0.0087 | 2.9 | 3.9 | 5.9 | / | / |
| 273 | 1 | 38 | 6 | 0.0132 | 4.5 | 6.0 | 9.0 | 13.4 | 17.9 |
| 2 | 32 | 7 | 0.0055 | 3.8 | 5.0 | 7.5 | 11.3 | 15.1 | |
| 325 | 1 | 57 | 9 | 0.0197 | 6.7 | 9.0 | 13.4 | 20.1 | 26.9 |
| 2 | 56 | 9 | 0.0097 | 6.6 | 8.8 | 31.2 | 19.8 | 26.4 | |
| 4 | 40 | 9 | 0.0035 | 4.7 | 6.3 | 9.4 | 14.1 | 18.8 | |
| 400 | 1 | 98 | 12 | 0.0339 | 11.5 | 15.4 | 23.1 | 34.6 | 46.2 |
| 2 | 94 | 11 | 0.0163 | 11.1 | 14.8 | 22.1 | 33.2 | 44.3 | |
| 4 | 76 | 11 | 0.0066 | 9.0 | 11.9 | 17.9 | 26.9 | 35.8 | |
| 450 | 1 | 135 | 13 | 0.0468 | 15.9 | 21.2 | 31.8 | 47.7 | 63.6 |
| 2 | 126 | 12 | 0.0218 | 14.8 | 19.8 | 29.7 | 44.5 | 59.4 | |
| 4 | 106 | 13 | 0.0092 | 12.5 | 16.7 | 25.0 | 37.5 | 50.0 | |
| 500 | 1 | 174 | 14 | 0.0603 | / | 27.3 | 41.0 | 61.5 | 82.0 |
| 2 | 164 | 15 | 0.0284 | / | 25.8 | 38.6 | 58.0 | 77.3 | |
| 4 | 144 | 15 | 0.0125 | / | 22.6 | 33.9 | 50.9 | 67.9 | |
BOCHI CORPORATION is a total solution provider with his head office in Chongqing. We are able to provide value added services and qualified marine equipments.

1. Punctual delivery time:
- We put your order into our tight production schedule, keep our client informed about production process, ensure your punctual delivery time.
- Shipping notice/ insurance to you as soon as your order is shipped.
2. After sales service:
- After receive the goods, We accept ur feedback at first time.
- We could provide installation guide, if you have need, we could give you global service.
- Our Sales are 24-hours online for ur request
3. Professional sales:
- We value every inquiry sent to us, ensure quick competitive offer.
- We cooperate with customer to bid tenders. Provide all necessory docuement.
- We are a sales team, with all techinical support from engineer team.
Bochi Have many global clients, we offer professional service to them. With the aim of "to establish a close strategic partnership and develop together with customers", we will work whole-heartedly to improve our products and service. We will also pledge to work jointly with business partners to elevate our cooperation to a higher level and share success together with our customers. We are looking forward to establishing relationships with you in the near future.
