4"-12.5" Inline Fan-Ventilation Fan-Duct Fan
The inline duct fans can be widely used in the hydroponic industry, like the greenhouse, grow tent, etc for ventilation purposes.
Features
- Excellent value price /performance
- Extremely quiet operation
- Galvanized steel with black powder coating
- High quality molded impeller
- Thermally protected AC motor
- High quality speed control
Inline Fan-Ventilation Fan-Duct Fan
The Fan is an in-line centrifugal duct fan with high capacity and excellent reliability. The straight through radial fan is compact and very easy to install. It can cope with high pressure and long duct runs, whilst still operating at acceptable noise levels.
The Fan range of fans have casings manufactured from galvanized steel and are moisture resistant. They are approved for installation in humid or damp environments being rated IP44 when installed in a duct system.
The fan speed can be controlled by voltage variation regulators. Several fans can be connected to the same controller providing the total rating of the controller is not exceeded.
The motors are an external rotor type asynchrony motor. They have maintenance free sealed ball bearings and are protected from over heating by thermo contacts.

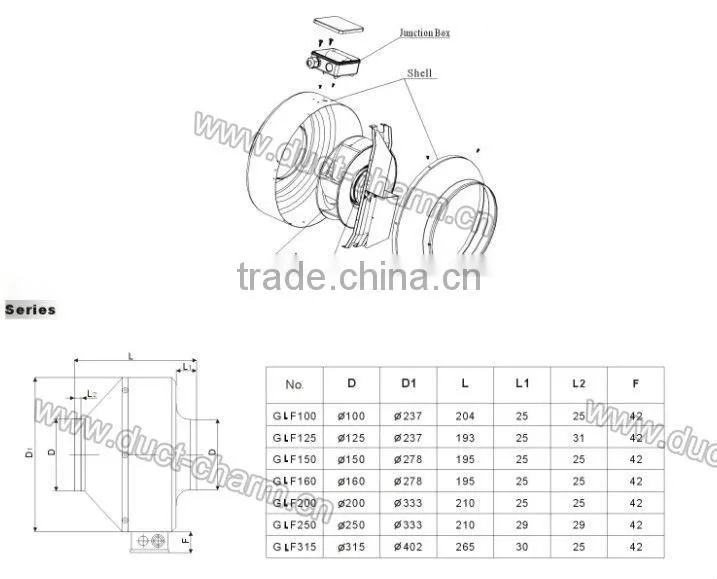

Inline Fan-Ventilation Fan-Duct Fan size
| Size | 4" | 5" | 6" | 6.5" | 8" | 10" | 12.5" |
| Diameter | 100mm | 125mm | 150mm | 160mm | 200mm | 250mm | 315mm |
Specification
1) Diameter:100mm-315mm
2) Airflow: 172-1823CFM
3) Pressure: 350-830pa
3) Low noise: 48-75.3db,compact structure
4) 220V/50HZ;110V/60HZ OR as request
An overview of CDF Series Backward Circular
Inline Fan-Ventilation Fan-Duct Fan
1. Range of centrifugal high performance fans to convey in ducts air or fumes with a maximum temperature of 5°C.
2. Suitable for appliances in domestic, commercial and industrial such as bathrooms,grow tent, kitchens, offices, factories, supermarket, bars, gymnasiums, restaurants etc.
3. Complete range of inlet and outlet diameters to allow the installations in most standard sizes of commercial ducts.
4. All the models mount ball bearing motors with thermal protector.
5. Steel type body, high resistance motor support with incorporated airflow fins. Mounting bracket integrated with the product that allows installation in any position. Holes provided in the bracket allow mounting with cords.
6. Installation and electric connection is particularly fast and easy.
7. Double insulated product, electric grounding is not necessary.
8. Motor speed can be regulated with an optional electronic regulator.
The Workshop of Inline Fan-Ventilation Fan-Duct Fan
The ordinary package for Inline Fan-Ventilation Fan-Duct Fan
