1. 2015 hot sale new products hydraulic breaker for backhoe loader
Hydraulic Breaker is powered by an excavator or loader pump provides pressure oil, it can dig a fundamental role in building a more efficient clean up floating rock crevice in the rocks and soil. Optional hydraulic hammer excavator model is based on the principle of the operating environment to choose the most suitable hydraulic hammer.
Hydraulic breaker hydraulic excavator has become an important tool for the job, it was installed in the hydraulic breaker backhoe loaders (also known as two busy) or wheel loader for crushing operations. Hydraulic Breaker , also known as hydraulic breaker or hydraulic rock breaker (hydraulic breaker).

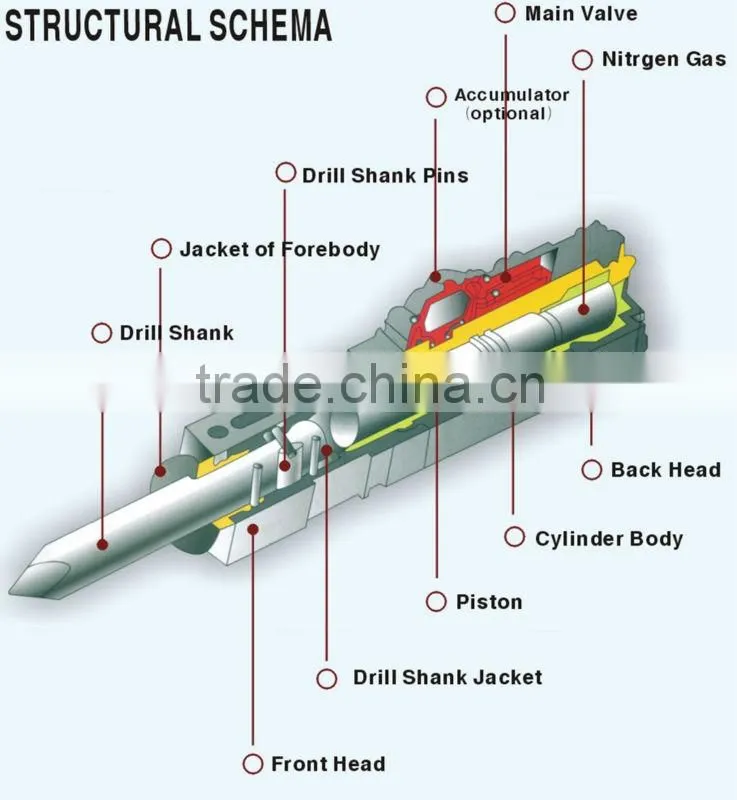

2. hydraulic rock breaker Parts.
3. hydraulic rock breaker Application.
1).Mining
Mountains, mining, grizzly crushing, secondary crushing
2).Metallurgy
Ladle, slag cleaning, furnace demolition dissatisfied body removal equipment foundation
3).Railway
Mountains, tunneling, bridge demolition, subgrade compaction
4).Highway
Highway repair, broken concrete pavement, foundation excavation
5).Urban Landscape
Concrete crushing, water, electricity, gas and construction, urban renewal
6).Building
Old building demolition, concrete crushing
7).Shipping
Hull except mussels, rust
8).Other
Ice, broken permafrost, sand vibrators
4. hydraulic rock breaker Working Method.
1) The proper breakdown strength
In order to effectively breaking, Hydraulic Breaker apply appropriate breakdown strength. If the breakdown force is insufficient, then the energy will not be hammering the piston effective gravel. Such a reaction force will be transmitted to the hammer body, excavator / loader arm until, causing damage to these parts.
On the other hand, excavator / loader lift arm case, if the breakdown of excessive force and crushing operations, the machine may be in the gravel instant lurch, violent hammer, hammer stones can cause severe impact crusher hammer damaged in combat operations carried out under this condition, the vibration will be transmitted crawler excavators, wheel should be avoided in this case the job.
So during combat operations, we should always pay attention to the breakdown hammer force, breakdown strength discomfort was not operating.
2) Breakdown Direction
Drill rod breakdown direction should be a straight line. Crushed rock drill rod, should amount to maintain the vertical direction operation, if hammering direction of tilt, then hammering operation, drill rod may slip, causing breakage or drill rod and piston stuck. Therefore, crushing operations, should breakdown point selected, so that the drill rod hammer hammering operation can guarantee stability.

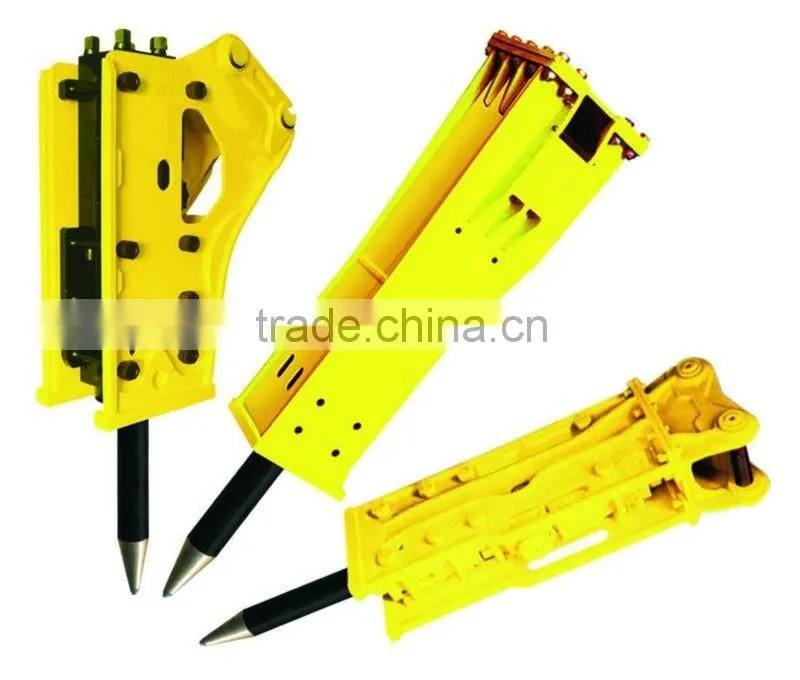

5. Breaker hammer Type

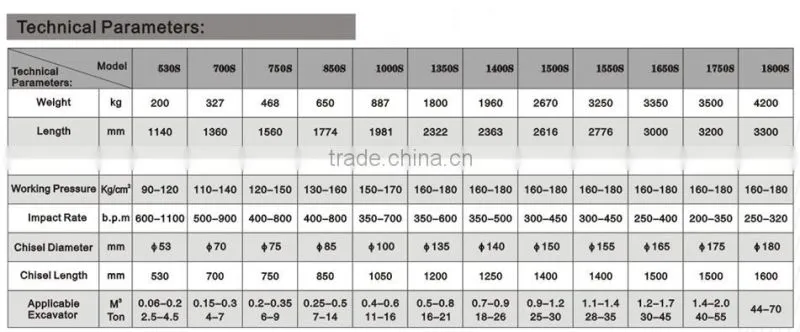

6. Breaker hammer parameter list
7.Construction Site Breaker hammer
8.Factory Show Breaker hammer
9. exhibition information
10.Our models Breaker hammer can be available for following excavator
11.Certification
IF MORE DETAILS,FEEL FREE TO SEND ME EMAIL
