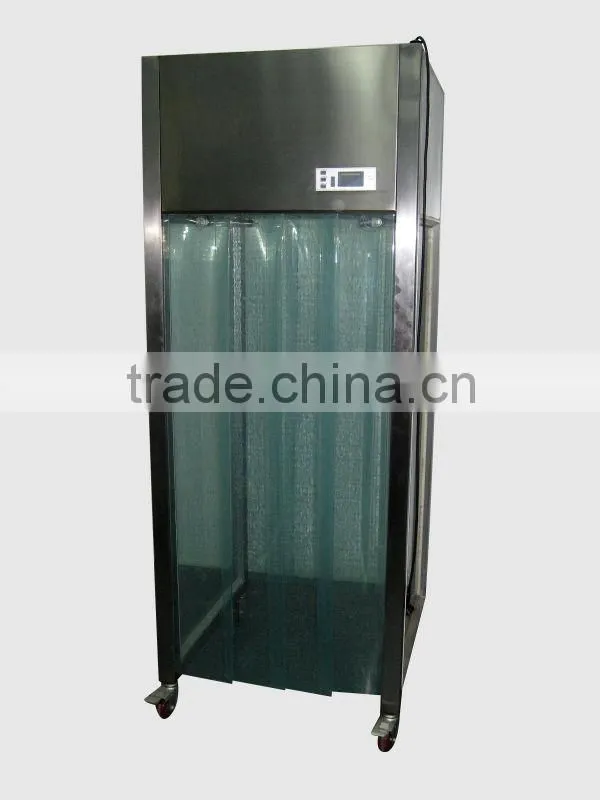

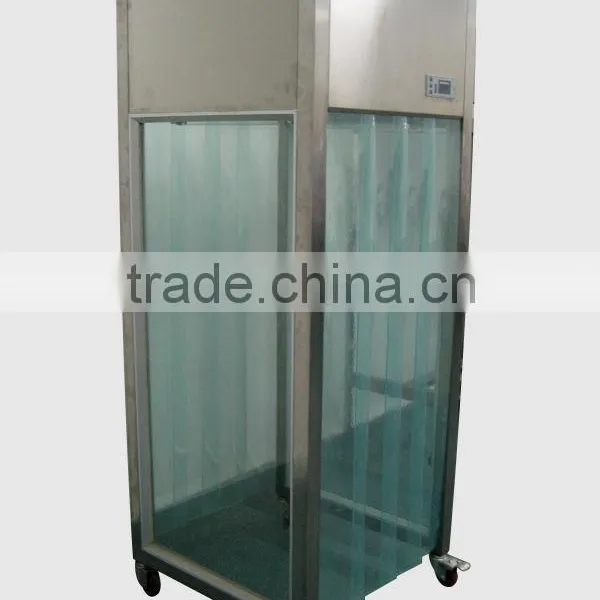

Help CenterSS 304 Downflow Booth
Related Products
laminar flow booth
1, Eliminates cross contamination
2, Protect the operator
3, Easy to Installation & Portable
4, Easy to Clean
Dispensing booth is a kind of partial purification equipment,for filling, refilling, weighing and sampling of raw material and Compounds. It is provided with a HEPA filter, which prevents the airborne dusts by down draught technique. The unit eliminates powder contamination to protect the operator and the surrounding environment.
Our factory
Sinoarch Shanghai Co.,LTD attaches great importance to the design,development,production and installation of cleanroom system products The company mainly produces packaged purification and air-conditioning unit,air purification system equipment,sandwich panels,stainless steel doors and windows,pass box,air shower,FFU(Fan filter unit),laminar flow hood and various stainless steel products for cleanroom system.Meanwhile,the company sales all types of instruments and equipments,materials and contistatic products for cleanroom.They have been widely used in pharmaceutical,biological engineering electronic,semiconductor,cosmetics and food processing industries.
| General Specifications | ||
| Sr. | Item | Description |
| 1 | Material | SS 304 |
| 2 | Dimension | External Size:1300(W)*1650(D)*2150(H) |
| Working Size:1200(W)*1200(D)*1850(H) | ||
| 3 | Pre Filter | Pre Filter of G5 Grade. |
| Efficiency:90% down to 10 Microns. | ||
| 4 | Intermediate Filter | Intermediate Filter of G7 Grade. |
| Efficiency:95% down to 3 Microns. | ||
| 5 | Final Supply Filter | HEPA Filter of H13 Grade. |
| Efficiency:99.99% down to 0.3 Microns. | ||
| 6 | Exhaust Filter | EU 13 rating, with suitable size. |
| Efficiency: 99.99% down to 0.3 Microns. | ||
| 7 | Motor Blower Assembly | Statically & Dynamically balanced with suitable rating and size. |
| 8 | Performance | Air Cleanliness:Class ISO 5 (as per ISO 14644-1). |
| Air Flow Rate:0.45 + 0.1m/sec. | ||
| Noise Level:Less than 70 db 'A'. | ||
| Vibration Level:Minimum. | ||
| 9 | Instrumentation | Illumination Of Light:Optimum. |
| Magnehelic Differential Pressure Gauge | ||
| 3 Pins Switch & Socket | ||
