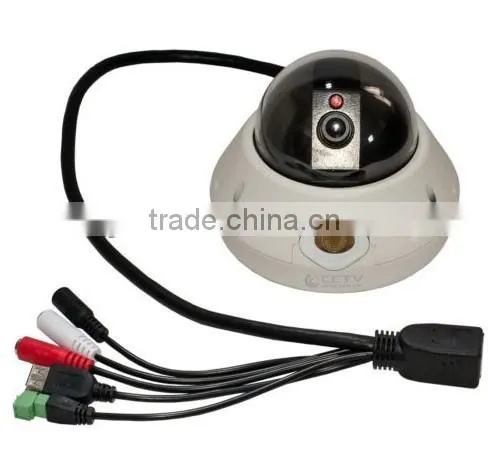

RY-IP02 1/3" Cmos CCTV Megapixel 720P IR IP Vandal-Proof Dome Camera

RY-IP02 1/3" Cmos CCTV Megapixel 720P IR IP Vandal-Proof Dome Camera thumbnail-1
RY-IP02 1/3" Cmos CCTV Megapixel 720P IR IP Vandal-Proof Dome Camera thumbnail-2
RY-IP02 1/3" Cmos CCTV Megapixel 720P IR IP Vandal-Proof Dome Camera thumbnail-3
RY-IP02 1/3" Cmos CCTV Megapixel 720P IR IP Vandal-Proof Dome Camera photo-1
RY-IP02 1/3" Cmos CCTV Megapixel 720P IR IP Vandal-Proof Dome Camera photo-2
RY-IP02 1/3" Cmos CCTV Megapixel 720P IR IP Vandal-Proof Dome Camera photo-3
US$ 35 - 50 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
RUIYE
Model Number:
RY-IP02
Contact Supplier Request Quote Chat Now
Shenzhen Rui Ye Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name RUIYE
Model Number RY-IP02
Type Digital Camera
Style Dome Camera
Sensor CMOS
Technology NetWork
Special Features Vandal-proof

NVS-720M series megapixel HD employs Aptina  megapixel  sensor output  720P high resolution image, with the Aptina DR-Pix new technology, the  camera is not only work excellence in daytime but also provide clear and  sharp & clear image in night time.  H.264/  MJEG-4/ dual streaming, motion detection,  Powerful IR LED Aray  can  effect arrange 30meters to ensure you surveillance 24 hours. Solid  aluminum Case is vandal proof .

  • 1/3"  megapixel  COMS sensor (Aptina AR0130CS)
  • Up to 1MG1280×720@25-30fps video resolution(D1 720x 576 and CIF 352x288 is  optional for remote  view)
  • 6mm lens (standard)
  • Onvif  standard conformant.
  • Mechanical IR cut  filter
  • IR  effect range: 30 meters
  • DC12V 1.5A(PoE Optional)
  • Scheduled record, continuous record and motion detect  Record
  • Automatic exposure and white balance
  • Firmware and software  free update
  • support DDNS
  • support  alarm email and FTP
  • Support iPhone Android mobile remote view
Image Sensor 1/3"  megapixel  COMS sensor (Aptina AR0130CS)
Resolution
1.3megapixel 720P
Lens  6mm lens ( 8, 12, 16mm optionnal)
Video Focus manual
Sync System Internal/Line Lock NTSC 60 Hz , PAL 50Hz
Minimum illumination
0.1Lux color, 0Lux with B/W mode
Gain control Auto
White Balance Auto
BLC Auto
Electric shutter 1/50 -- 1/12000s
S/N Ratio >45dB
IR Cut Filter Auto
IR effect Range 30meters
Network
Onvif standard Yes
Digital Media System-on-Chip (DMSoC) TMS320DM368
Video Compression H.264
Audio Compression AMR, G711
Max. Frames 25-30fps
Video stream 720P, D1,  CIF and QCIF   Two streams (main/extra) is  available  simultaneously
Video compress rate 16Kbps - 8Mbps
Audio compress rate 4.75Kbps - 12.2Kbps
Video  delay < 200ms (in the LAN)
Network protocol RTSP/RTP/RTCP/HTTP/HTTPS/FTP/DHCP/MUDP/SMTP/CIFS/UPNP/PPPOE/NTP/DDNS/IEEE  802.11
Record Storage Micro-SD card 8G (max support 32G) USB support 500G
Intercom I CH microphone input /1 CH Audio output
Motion detect Sensitivity 1-100 adjustable
Video Loose Sensitivity 1-100 adjustable
General
Interface Network Ports Wired RJ45 10M/100M self-adapting Ethernet  port,
USB WiFi  Adapter (with BT3050 chipset  )  Security : WEP, WPA-PSK/WPA2-PSK (Optional)
Audio input 1ch RCA, 200-2800mV,30KΩ
Audio output 1ch RCA
RS485 A, B
Power supply DC 12V 1.5A
Temperature Operation - 20 to 60 °C
Environmental humidity 0~90%(No Condensation)
Waterproof Grade IP59
Power Consumption 4W (IR off) 8W (IR ON)


 RY-IP02 1/3" Cmos CCTV Megapixel 720P IR IP Vandal-Proof Dome CameraRY-IP02 1/3" Cmos CCTV Megapixel 720P IR IP Vandal-Proof Dome Camera
