Home > Security & Protection > Surveillance, Control & Protection > CCTV Camera > RY-802 2.4Ghz Color IR Surveillance CMOS Mini Security Wireless Camera

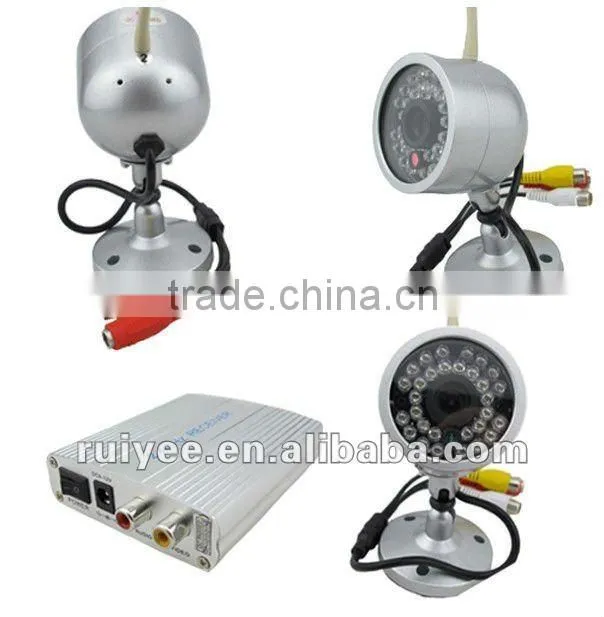

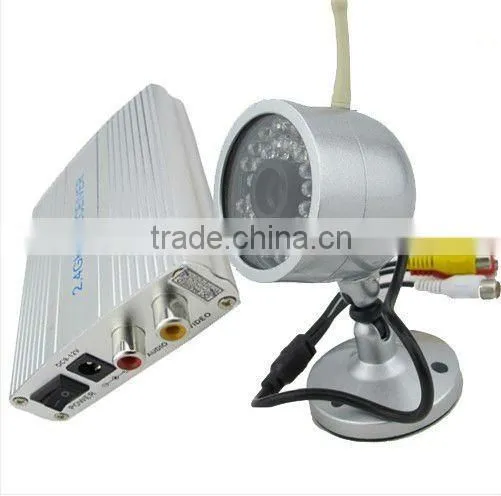

RY-802 2.4Ghz Color IR Surveillance CMOS Mini Security Wireless Camera

Name: RY-802 2.4Ghz Color IR Surveillance CMOS Mini Security Wireless Camera
Brand: Ruiye
SKU: 123407823

RY-802 2.4Ghz Color IR Surveillance CMOS Mini Security Wireless Camera thumbnail-1

RY-802 2.4Ghz Color IR Surveillance CMOS Mini Security Wireless Camera photo-1

US$ 16.3 - 19.6 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Ruiye

Model Number:

RY-802

Contact Supplier Request Quote Chat Now

Shenzhen Rui Ye Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name Ruiye

Model Number RY-802

Type Other, Analog Camera, Video Camera

Style Dome Camera

Sensor CMOS

Technology Infrared

Special Features Waterproof / Weatherproof

RY-802 2.4Ghz Color IR Surveillance CMOS Mini Security Wireless Camera

Feature:

1.Affordable wireless surveillance solution
2.Cameras are switchable to 4 common channels
3.420TV line video resolution
4.IR on 0.1 LUX
5.12 V DC Power Supplies included
6.Wireless frequency: 2.4 GHz

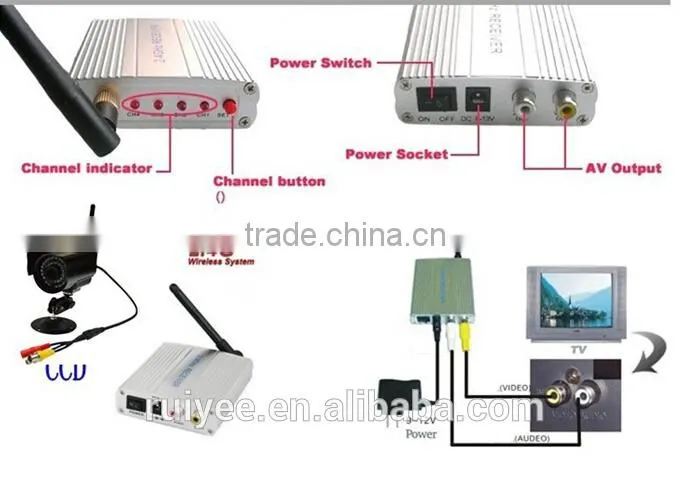

7.Receiver connects to any TV/VCR/DVR recorder
8.Fast & easy installation - plug into any AC outlet
9.Channel-scan for multi-camera monitoring
10.Alloyed shell, water-proof structure for outdoor?? environment.
11. Night vision allows for low light viewing up to 23ft (15m) from camera
12. Built-in microphone for listening ability
13. Up to 100m (330ft.) transmission range in open space
14. Suitable for monitoring children and elders, and widely used in theft prevention, after-hour

surveillance, home security, etc.

Camera:
Imaging Sensor Type:	1/4 color CMOS PC1030
Picture Total Pixels:	510×492 Pixels
Horizontal Resolution:	420 TV Lines
View Angle:	PAL: 60°; NTSC: 40°
Minimum Illumination:	0Lux
Night Vision Range :	15m
BandWidth:	18M
Consumption Current:	85mA(IR OFF) & 160mA(IR ON)(Max.)
Power Supply:	DC 8V
Dimensions:	45 x 78 x 83mm
Receiver:
Antenna:	50 ohm SMA
Receiving Sensitivity:	≤-85dBm
Intermediate Frequency:	480MHz
Video System:	NTSC/PAL
Color Configuration:	R.G.B.delta
Audio OUT signal:	1.1Vpp+/-0.2Vpp 75 ohm, S/N >38dM
vedio OUT signal:	3.0Vpp+/-1Vpp 600 ohm
Consumption Current:	190mA(Max.)
Power Supply:	DC 12V
Dimensions(W×D×H):	106x146x43mm

Company Information

FAQ

MOQ

1. For the first order, we have no limit for the quantity.

2. From the second order, the MOQ is 50pcs.

Payment Terms

T/T, Western Union, PayPal

1. Under T/T, there will be USD35.00 bank charge for each individual remittance.

2. Under PayPal, there will be 4% PayPal fee for each individual remittance.

3. We can put customers' orders down to production once we get the bank slip copy.

4. If order value less than 10,000USD, we should get 100% payment before production;

If order value more than 10,000USD, we accept 30% deposit before production and the balance should be paid off before delivery.

Lead Time

1. Sample order can be delivered from our factory in 3 working days.

2. General order can be delivered from our factory in 7 - 15 working days.

3. Big order can be delivered from our factory in 20-35 working days at most.

OEM / ODM Service

1. If the total order quantities are above 100pcs, we can silk-screen print customer’s logo on the products, and put customer’s model numbers in the labels, boxes.

2. We accept ODM projects, and welcome your enquiries!

Warranty Policy

We provide one-year warranty for CCTV Cameras and DVRs after the shipment date. Any product proves defective under normal usage, we will repair or replace it by free of charge.

1. If our customers could repair the products by themselves locally, we will supply necessary spare parts.

2. If the customers couldn't repair the products, the products will need to be sent back to us, and we repair and bear 50% freight charge. All of our products are 100% passed strictly quality inspection before delivery.

Technical Support

We have professional technical support team to support our customers, and if you have any question for the technology of our products, please email to us, and we will reply to you immediately.
